TRENDnet TI-IG60 Hardened Industrial 60w Gigabit PoE+ Injector, DIN-Rail Mount, Ip30 Rated Housing, Includes DIN-Rail and Wall Mounts, Ti-Ig60

SKU: TI-IG60 TRENDnet
Image of TQ-TIIG60
Product images for TRENDnet TI-IG60 Hardened Industrial 60w Gigabit PoE+ Injector, DIN-Rail Mount, Ip30 Rated Housing, Includes DIN-Rail and Wall Mounts, Ti-Ig60. 8 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Supplies up to 60W UPoE power to support high-performance IP cameras, wireless access points and other power-hungry devices
  • Hardened IP30 housing and -40 to 75°C operating range protect critical security and monitoring equipment in extreme environments
  • Dual redundant 48/56V power inputs with overload protection ensure continuous operation for zero-downtime surveillance systems

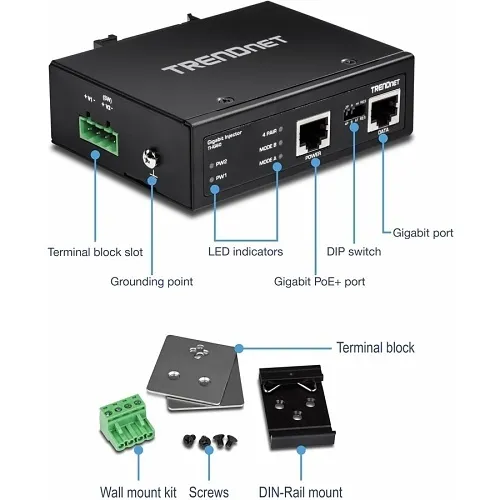

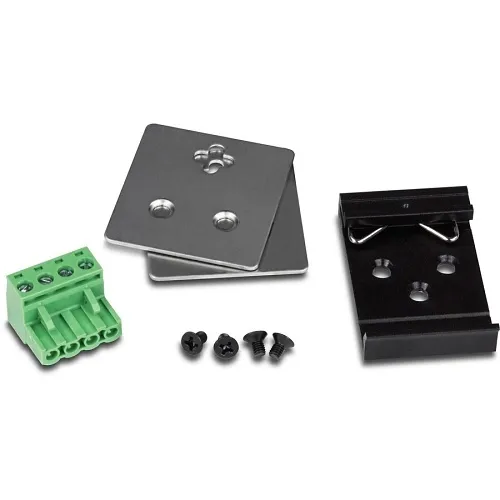

  • Includes DIN-rail and wall mount kits for fast deployment in control cabinets, network closets and industrial racks
  • Gigabit Ethernet connectivity with up to 100 m reach enables flexible placement of cameras and sensors without costly re-cabling

Quick Specifications

Product Model
TI-IG60
Brand Name
TRENDnet
Product Name
Hardened Industrial 60 Watt UPoE Injector
Product Type
UPoE Injector
View Full Technical Specifications

Explore the details

Product information

TI-IG60

Overview

Power and protect high-demand PoE devices in harsh industrial and security installations with the TRENDnet TI-IG60 hardened Industrial 60W UPoE injector. Designed for surveillance, monitoring and industrial networking, this PoE injector delivers up to 60W of UPoE power over Gigabit Ethernet to support PTZ/IP cameras, thermal imaging, wireless APs and access control devices up to 100 meters away. The IP30-rated housing and wide -40 to 75°C operating temperature range keep your critical systems running in extreme conditions, while dual redundant 48/56V power inputs with overload protection minimize downtime for continuous security operations. DIN-rail and wall mounting hardware simplifies integration into control cabinets and rack environments, accelerating installs for security integrators and facility managers. NDAA/TAA compliance and robust IEC shock, vibration and drop certifications make the TI-IG60 a reliable choice for commercial and industrial projects. Ideal for CCTV, perimeter surveillance and industrial monitoring deployments—add the TI-IG60 to your network to deliver resilient PoE power where it matters.

Features

  • Supplies up to 60W UPoE power to support high-performance IP cameras, wireless access points and other power-hungry devices
  • Hardened IP30 housing and -40 to 75°C operating range protect critical security and monitoring equipment in extreme environments
  • Dual redundant 48/56V power inputs with overload protection ensure continuous operation for zero-downtime surveillance systems
  • Includes DIN-rail and wall mount kits for fast deployment in control cabinets, network closets and industrial racks
  • Gigabit Ethernet connectivity with up to 100 m reach enables flexible placement of cameras and sensors without costly re-cabling
30 of 30 specifications
Technical specifications for TRENDnet TI-IG60 Hardened Industrial 60w Gigabit PoE+ Injector, DIN-Rail Mount, Ip30 Rated Housing, Includes DIN-Rail and Wall Mounts, Ti-Ig60
General Information
Brand Name TRENDnet
Manufacturer TRENDnet
Product Name Hardened Industrial 60 Watt UPoE Injector
Product Type UPoE Injector
Product Model TI-IG60
Product Series TI
Manufacturer Part Number TI-IG60
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Environmental Conditions
Operating Temperature (T-T) -40-167°F
Operating Relative Humidity (H-H) 0.95
Interfaces/Ports
Input Ports 10/100/1000Base-T
Output Ports 10/100/1000Base-T
Media & Performance
Data Transfer Rate 10 Mbps, 100 Mbps, 20 Mbps, 200 Mbps, 2000 Mbps
Network Technology 10/100/1000Base-T
Physical Characteristics
Color Black
Width 5"
Height 3"
Weight 4.87oz
Form Factor External
Power Description
PoE Budget 60W
Input Voltage 48V DC, 56V DC
PoE (RJ-45) Port Yes
Maximum Output Power 72W
Product Information
Length 10"

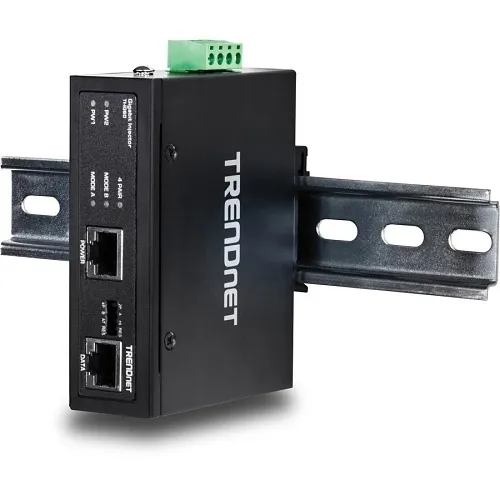

Mount Type DIN Rail Mount, Wall Mount
Protection Type Overload Protection
Warranty
Limited Warranty 3-Year
Miscellaneous
Country of Origin TW
Certifications & Standards CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
