TRENDnet TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 20Gbps
Image of 10
Key Features
- Reliable PoE power for edge devices: supplies up to 240W to support up to eight PoE+ cameras, access controllers or wireless APs without extra cabling complexity.
- Hardened for harsh environments: IP30 metal housing and -40° to 75°C operation keep critical network gear running in extreme industrial and outdoor enclosure installations.
- High-performance switching: 20Gbps switching capacity and gigabit ports ensure low-latency throughput for video surveillance and monitoring traffic.

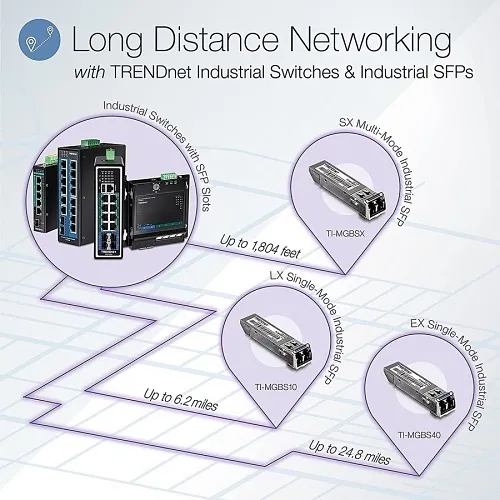

- Flexible uplink options: two shared Gigabit RJ-45 / SFP ports enable fiber uplinks for long-distance backbone connectivity and secure network segmentation.
- Redundant power and alarms: dual 48–56V DC inputs with overload protection and alarm relay increase uptime for security and industrial deployments.
Quick Specifications
- Product Model
- TI-PG102
- Brand Name
- TRENDnet
- Product Line
- Industrial
- Product Name
- 10-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
Frequently Bought Together
TRENDnet TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 20Gbps
$418.93
2 items selected
Total: $578.79
Product Information Tabs
Overview

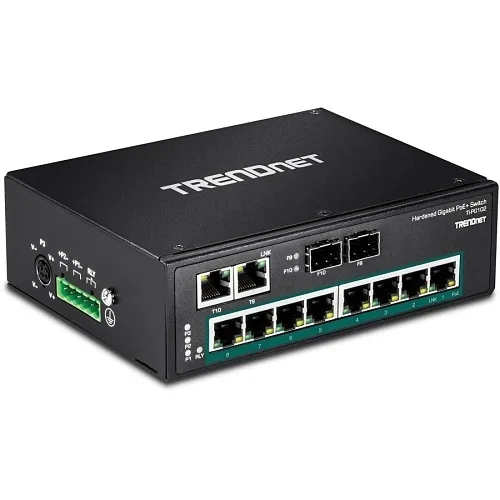

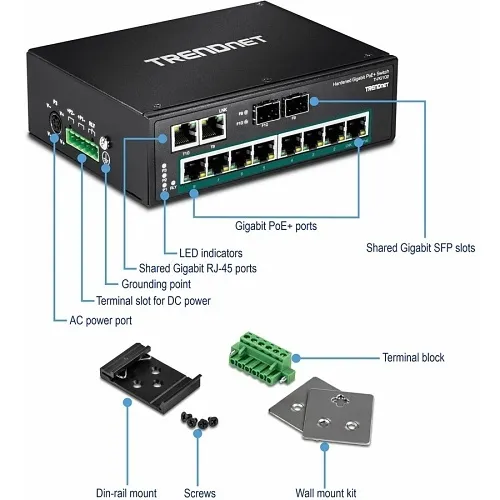

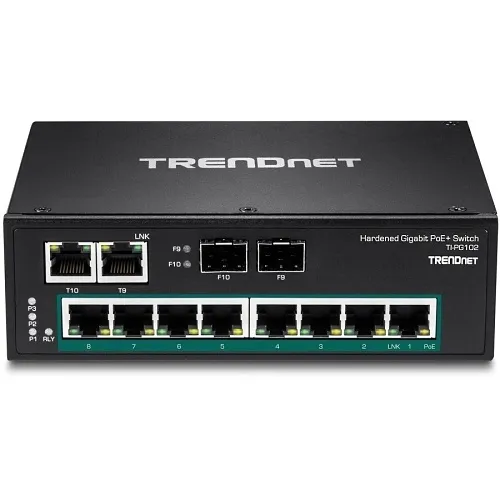

Deploy reliable, hardened network and PoE power where it matters most — at the edge of your security, surveillance and industrial monitoring installations. The TRENDnet TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch combines eight gigabit PoE+ ports with a 240W PoE budget and two shared Gigabit RJ-45/SFP ports to power and connect IP cameras, access control panels and wireless access points without extra power adapters.

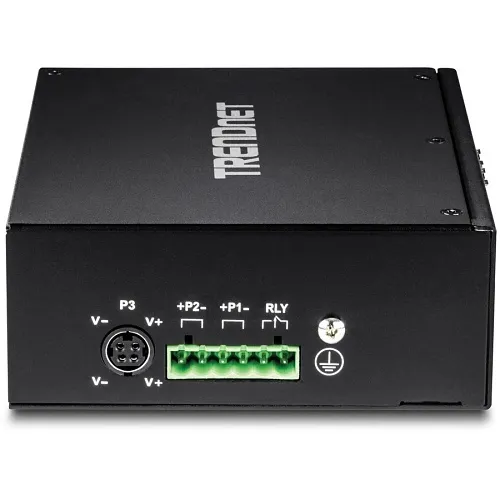

Built for demanding environments, this TRENDnet industrial switch features an IP30-rated metal housing and operates from -40° to 75°C, making it ideal for factory floors, transportation hubs and outdoor enclosures. A 20Gbps switching capacity delivers dependable throughput for high-resolution video and real-time monitoring, while dual redundant 48–56V DC power inputs and an alarm relay protect against power failures.

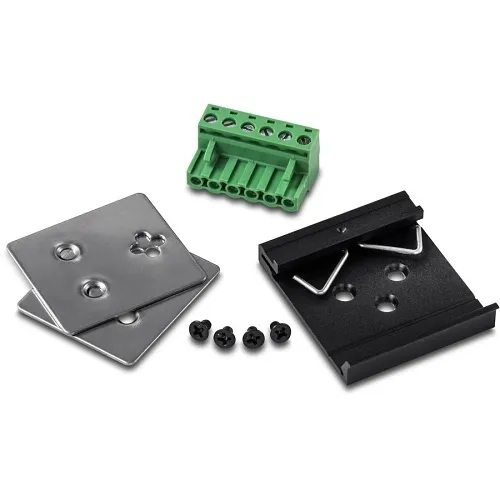

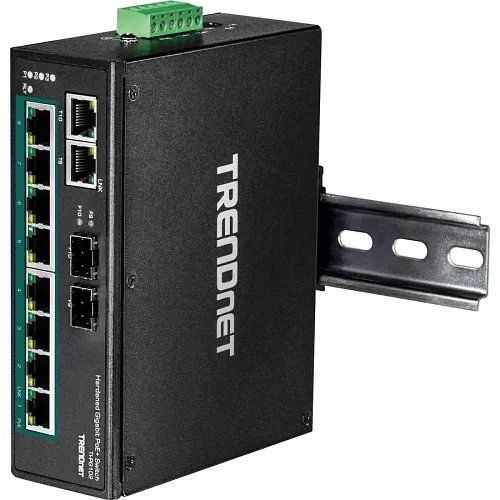

Compact DIN-rail and wall-mount options simplify field deployment and fiber-capable SFP slots extend reach to central switches or NVRs. Choose the TI-PG102 for robust, plug-and-play PoE distribution and resilient networking in security, surveillance and industrial IoT projects — contact sales or add to your bill of materials today.
Features
- Reliable PoE power for edge devices: supplies up to 240W to support up to eight PoE+ cameras, access controllers or wireless APs without extra cabling complexity.
- Hardened for harsh environments: IP30 metal housing and -40° to 75°C operation keep critical network gear running in extreme industrial and outdoor enclosure installations.
- High-performance switching: 20Gbps switching capacity and gigabit ports ensure low-latency throughput for video surveillance and monitoring traffic.
- Flexible uplink options: two shared Gigabit RJ-45 / SFP ports enable fiber uplinks for long-distance backbone connectivity and secure network segmentation.
- Redundant power and alarms: dual 48–56V DC inputs with overload protection and alarm relay increase uptime for security and industrial deployments.
| General Information | |
|---|---|
| Brand Name | TRENDnet |
| Manufacturer | TRENDnet |
| Product Line | Industrial |
| Product Name | 10-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch |
| Product Type | Ethernet Switch |
| Product Model | TI-PG102 |
| Product Series | TI |
| Manufacturer Part Number | TI-PG102 |
| Technical Information | |
| Material | Metal |
| Power Consumption | 5.67W |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Maximum Data Transfer Rate | 1 Gbps |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| I/O Expansions | |
| Shared SFP Slot | Yes |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | No |
| Total Number of Network Ports | 10 |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Network Technology | 1000Base-T, 1000Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Physical Characteristics | |
| Depth | 10" |
| Width | 5" |
| Height | 3" |
| Weight | 1.43lb |
| Power Description | |
| PoE Budget | 240W |
| Power Source | Power Supply |
| Input Voltage | 48-56V DC |
| PoE (RJ-45) Port | Yes |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Length | 6.1" |
| Mount Type | Desktop Mount |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | TW |
| Environmentally Friendly | Yes |
