TRENDnet TI-S15052 AC to DC DIN-Rail Power Supply with PFC Function, 52VDC at 2.89A

SKU: TI-S15052 TRENDnet

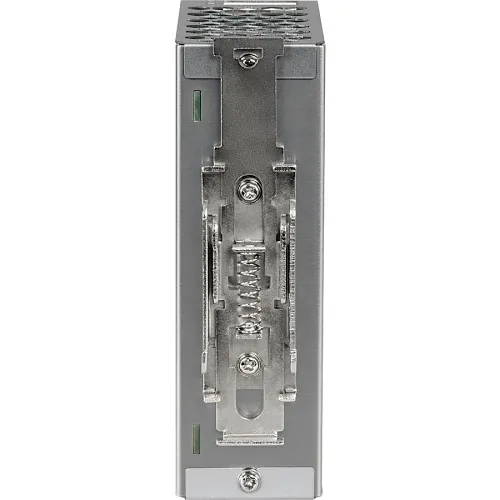

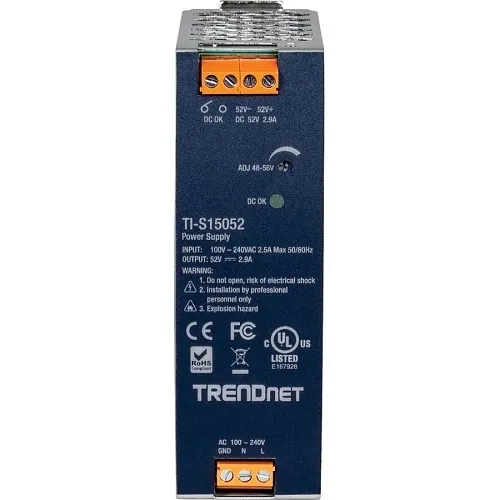

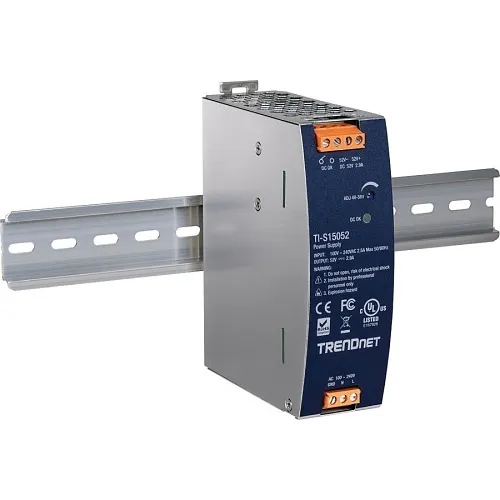

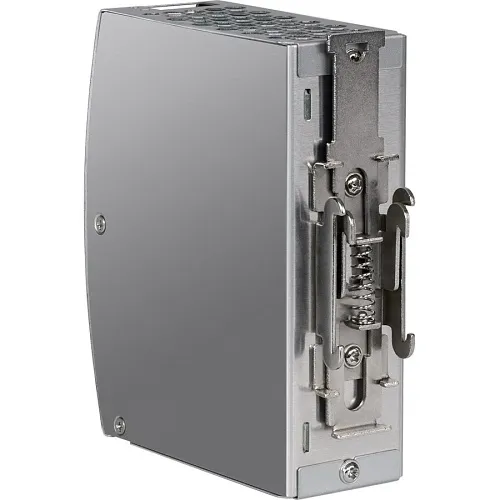

Image of TQ-TIS15052
Product images for TRENDnet TI-S15052 AC to DC DIN-Rail Power Supply with PFC Function, 52VDC at 2.89A. 5 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Deliver stable, continuous power to PoE switches, injectors, and access points to keep surveillance and security systems online
  • Active PFC and 93% efficiency reduce energy waste and heat, lowering operating costs in critical monitoring installations
  • Robust protections (overload, short circuit, over voltage, over temperature) minimize downtime and protect connected equipment
  • Compact DIN-rail design simplifies rack or cabinet installation and frees space in industrial control and video surveillance setups
  • Built-in DC OK relay contact provides remote power status for easy integration with alarm and monitoring systems

Quick Specifications

Product Model
TI-S15052
Sector
Video Surveillance
Brand Name
TRENDnet
Product Name
150W 52V DC 2.89A AC to DC DIN-Rail Power Supply with PFC Function
View Full Technical Specifications

Explore the details

Product information

TI-S15052

Overview

Keep security and monitoring infrastructure running reliably with the TRENDnet TI-S15052 AC to DC DIN-Rail power supply. Designed for industrial video surveillance and networking applications, this TRENDnet power supply delivers up to 150W of clean power (52V DC at 2.89A) with active Power Factor Correction to ensure efficient, stable operation for PoE switches, injectors, and WiFi access points. Its high 93% efficiency and natural convection cooling reduce heat and operating costs while providing 150% peak load capability for short power surges. Built-in protections against overload, short circuit, over voltage and over temperature protect your connected cameras and network gear, and the DC OK relay simplifies remote monitoring and fault notification. The integrated DIN-rail mount and compact footprint make installation fast in server rooms, control cabinets, and distributed edge enclosures. UL 508 approval and RoHS/WEEE compliance give additional assurance for commercial deployments. Ideal for security integrators and IT managers deploying surveillance, access control, or industrial networking equipment — choose the TI-S15052 to ensure dependable power delivery. Order now to upgrade the resilience of your surveillance and monitoring systems.

Features

  • Deliver stable, continuous power to PoE switches, injectors, and access points to keep surveillance and security systems online
  • Active PFC and 93% efficiency reduce energy waste and heat, lowering operating costs in critical monitoring installations
  • Robust protections (overload, short circuit, over voltage, over temperature) minimize downtime and protect connected equipment
  • Compact DIN-rail design simplifies rack or cabinet installation and frees space in industrial control and video surveillance setups
  • Built-in DC OK relay contact provides remote power status for easy integration with alarm and monitoring systems
23 of 23 specifications
Technical specifications for TRENDnet TI-S15052 AC to DC DIN-Rail Power Supply with PFC Function, 52VDC at 2.89A
General Information
Sector Video Surveillance
Brand Name TRENDnet
Manufacturer TRENDnet
Product Name 150W 52V DC 2.89A AC to DC DIN-Rail Power Supply with PFC Function
Product Type Power Supply
Product Model TI-S15052
Country of Origin TW
Manufacturer Part Number TI-S15052
Technical Information
Number of Fans 1
Output Voltage 52V DC
Certifications
TAA Compliant Yes
Physical Characteristics
Depth 4.00"
Width 1.60"
Height 4.90"
Power Description
Output Power 150.00W
Input Voltage 264V AC, 90V AC
Output Current 2.8900A
Product Information
Mount Type DIN Rail Mount
Product Replacements & Other Alternatives
Model Number Replaces TI-S12024
Warranty
Limited Warranty 1-Year
Miscellaneous
Package Contents TI-S15052
Environmentally Friendly Yes
Environmental Certification RoHS, WEEE
