Beale Street TIC801 8" 2-Way In-Ceiling / In-Wall Speaker, 70/100V Power Handling, 8 Ohms, 5-120W

SKU: TIC801 Beale Street Audio
Image of DX-TIC801
Product images for Beale Street TIC801 8" 2-Way In-Ceiling / In-Wall Speaker, 70/100V Power Handling, 8 Ohms, 5-120W. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver clear, intelligible paging and full-range background music with Sonic Vortex tuning for richer bass and vocal clarity
  • Flexible integration: 70/100V taps plus 8 Ω operation and 5–120W power handling for easy use in commercial paging and audio systems
  • Compact in-ceiling/in-wall form factor minimizes sound bleed between rooms and simplifies installations in retail, hospitality and office environments
  • High sensitivity (91 dB) and efficient 2-way design reduce amplifier requirements while maintaining consistent coverage for monitoring and security announcements
  • Durable ribbed injected polypropylene driver and lifetime limited warranty ensure long-term reliability in commercial and security installations

Quick Specifications

Brand Name
Beale Street Audio
Manufacturer
Beale Street Audio
Product Name
TIC801 Speaker
Product Type
Speaker
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Deliver consistent, professional sound for paging, background music and security announcements with the Beale Street Audio TIC801 8" 2-way in-ceiling/in-wall speaker. Engineered for commercial installs, this pro speaker combines Sonic Vortex tuned enclosure technology with an 8-inch driver to produce deeper, controlled bass and clear mid/high detail—ideal for retail, hospitality, corporate and surveillance environments. The TIC801 supports 70/100V distributed audio systems as well as 8 Ω operation, with 5–120W power handling and a wide 42 Hz–20 kHz frequency response that makes voices and music sound natural and intelligible across large spaces. With 91 dB sensitivity and a compact mounting profile, it provides efficient coverage and reduced amplifier needs while preventing sound bleed into adjacent rooms—critical for monitoring, security paging and multi-zone audio systems. Built for installers, the durable polypropylene cone and lifetime limited warranty offer dependable performance in indoor commercial setups. Specify the Beale Street TIC801 for your next security, paging, or background-music project—perfect for retail floors, office suites, schools and surveillance monitoring centers. Order now or contact us for system design support.

Features

  • Deliver clear, intelligible paging and full-range background music with Sonic Vortex tuning for richer bass and vocal clarity
  • Flexible integration: 70/100V taps plus 8 Ω operation and 5–120W power handling for easy use in commercial paging and audio systems
  • Compact in-ceiling/in-wall form factor minimizes sound bleed between rooms and simplifies installations in retail, hospitality and office environments
  • High sensitivity (91 dB) and efficient 2-way design reduce amplifier requirements while maintaining consistent coverage for monitoring and security announcements
  • Durable ribbed injected polypropylene driver and lifetime limited warranty ensure long-term reliability in commercial and security installations
General Information
Brand Name Beale Street Audio
Manufacturer Beale Street Audio
Product Name TIC801 Speaker
Product Type Speaker
Product Model TIC801
Manufacturer Part Number TIC801
Technical Information
Material Ribbed Injected Polypropylene
Impedance 8 ohms
Sensitivity 91dB
Speaker Size 8"
Crossover Type 2-way
Wireless Speaker No
Audio
RMS Output Power 5W
Number of Speakers 1

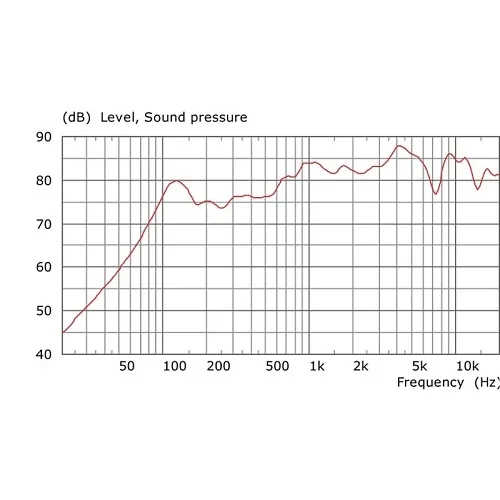

Maximum Frequency Response 35 Hz
Minimum Frequency Response 42Hz
Certifications
TAA Compliant No
Environmental Conditions
Sound Emission 9 dB
Physical Characteristics
Size 8"
Color Black
Depth 8.6"
Width 11.3"
Height 8.6"
Weight 8.38lb
Form Factor In-ceiling, In-Wall
Product Information
Length 11.3"
Diameter 11.3"
Mount Type In-ceiling Mount
Warranty
Limited Warranty Lifetime
Miscellaneous
Indoor/Outdoor Indoor
