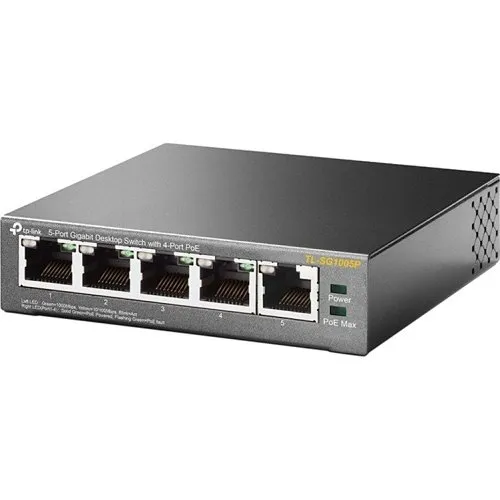

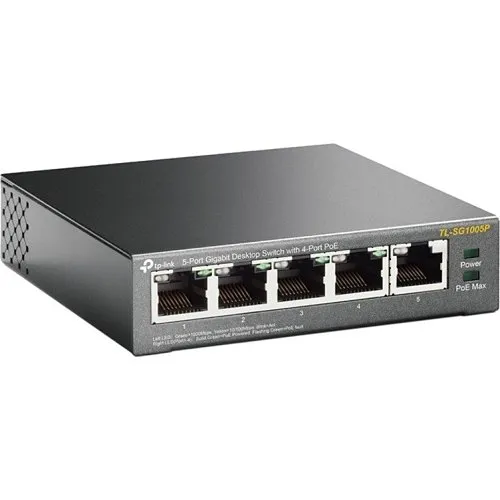

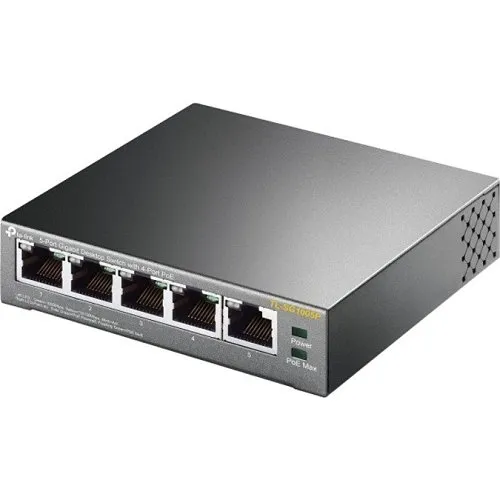

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+

SKU: TL-SG1005P TP-Link
TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE
Product images for TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+. 10 image(s) available. Click on image to view full size.

Key Features

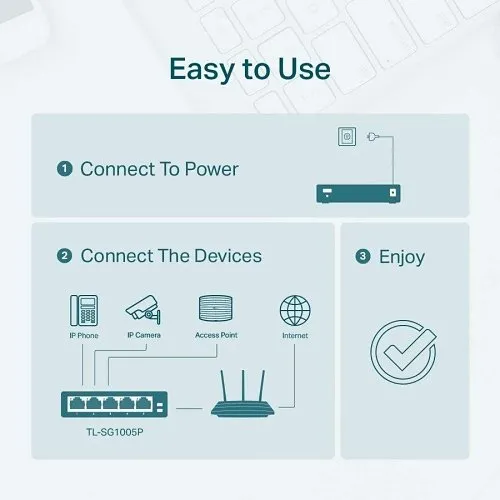

  • Simple, plug-and-play PoE power for edge devices — deploy IP cameras, wireless APs and VoIP phones without new electrical wiring
  • 65W total PoE budget with four auto-detecting PoE+ ports to reliably power multiple surveillance or security devices
  • Five Gigabit RJ45 ports deliver full 1Gbps connectivity for uplinks and local devices, reducing network bottlenecks
  • Unmanaged, desktop metal design for quick installation in small offices, retail and security monitoring closets
  • QoS support (802.1p/DSCP) and PoE priority protect latency-sensitive traffic and ensure critical cameras and phones stay powered

Quick Specifications

Product Model
TL-SG1005P
Brand Name
TP-Link
Product Name
5-Port Gigabit Desktop Switch with 4-Port PoE+
Product Type
Switch
View Full Technical Specifications

Explore the details

Product information

TL-SG1005P

Overview

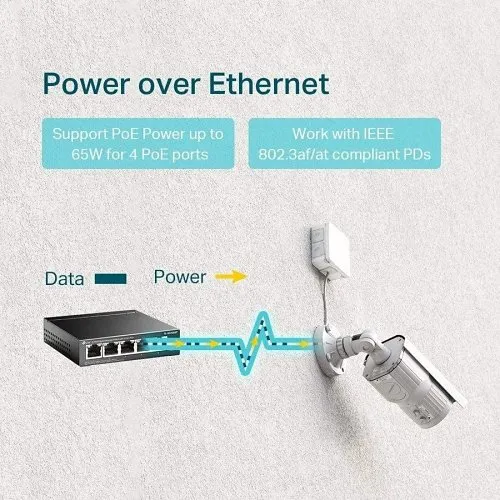

Get reliable power and high-speed connectivity where you need it most — the TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+ is built to simplify small-business networking and security deployments. This unmanaged network switch provides four IEEE 802.3af/at-compatible PoE+ ports and a 65W PoE budget, letting you power IP cameras, wireless access points and VoIP phones over a single Ethernet cable. With five Gigabit RJ45 ports, the TL-SG1005P ensures full 1Gbps links for monitoring stations and uplinks, minimizing latency for video surveillance and real-time monitoring. Its plug-and-play operation and durable metal desktop chassis make it ideal for quick installation in retail, office or security environments. Built-in QoS (802.1p/DSCP) and PoE priority management help keep critical security and voice traffic running smoothly even under load. Backed by TP-Link quality and a 3-year warranty, this compact PoE switch streamlines deployments of IP cameras, access control devices and wireless APs without adding complex configuration. Ready to power your surveillance and networking needs — install and expand your security system in minutes.

Features

  • Simple, plug-and-play PoE power for edge devices — deploy IP cameras, wireless APs and VoIP phones without new electrical wiring

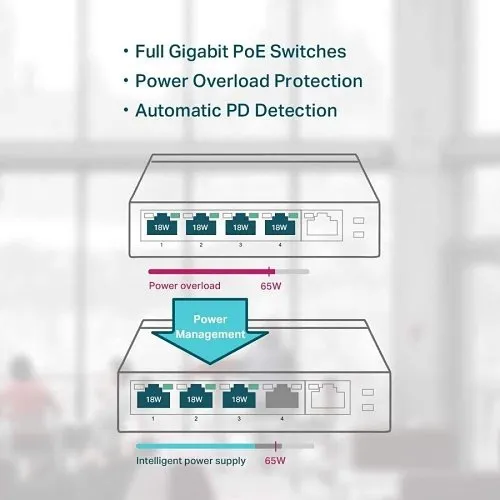

  • 65W total PoE budget with four auto-detecting PoE+ ports to reliably power multiple surveillance or security devices
  • Five Gigabit RJ45 ports deliver full 1Gbps connectivity for uplinks and local devices, reducing network bottlenecks
  • Unmanaged, desktop metal design for quick installation in small offices, retail and security monitoring closets
  • QoS support (802.1p/DSCP) and PoE priority protect latency-sensitive traffic and ensure critical cameras and phones stay powered
31 of 31 specifications
Technical specifications for TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+
General Information
Brand Name TP-Link
Manufacturer TP-LINK Technologies Co., Ltd
Product Name 5-Port Gigabit Desktop Switch with 4-Port PoE+
Product Type Switch
Product Model TL-SG1005P
Manufacturer Part Number TL-SG1005P
Technical Information
Material Metal
Power Consumption 4.30W
Network Switch Type PoE, Unmanaged
Media Type Supported Twisted Pair
Certifications
TAA Compliant No
Interfaces/Ports
Modular No
Uplink Port No
Network (RJ-45) Yes
Total Number of Network Ports 5
Management & Protocols
Manageable No
Media & Performance
Network Technology 10/100/1000Base-T
Network & Communication
Layer Supported 2
Ethernet Technology Gigabit Ethernet
Networking Standards IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Physical Characteristics
Color Black
Depth 3.9"
Width 3.9"
Power Description
PoE Budget 65W
Power Source Power Adapter
PoE (RJ-45) Port Yes
Product Information
Mount Type Desktop Mount
Warranty
Limited Warranty 3-Year
Miscellaneous
Country of Origin VN
Environmentally Friendly Yes
Environmental Certification RoHS
