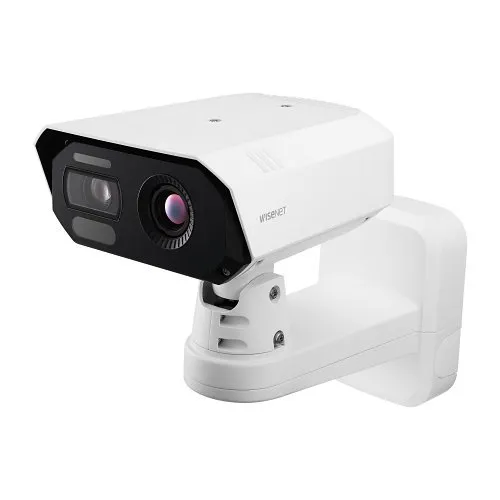

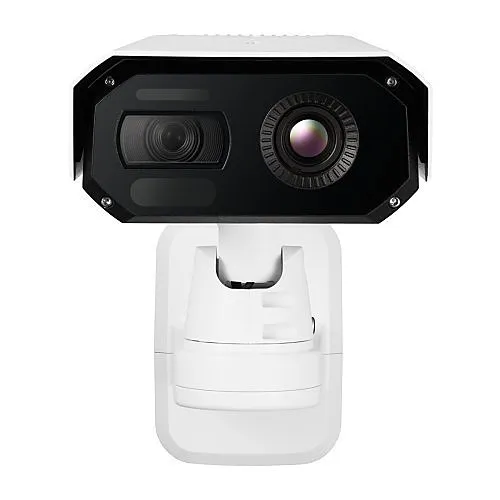

Hanwha TNM-C4940TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 9.1mm Fixed Thermal Lens, 4.4-9.3mm Motorized Varifocal Visible Lens, White, TAA Compliant
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- AI-powered bi-spectrum detection reduces false alarms by identifying people and vehicles in both thermal and visible streams
- Dual thermal (9.1mm fixed) and 4K-capable visible (4.4–9.3mm motorized varifocal) sensors deliver reliable day/night surveillance and temperature anomaly detection
- Rugged, all-weather design (IP66/IP67, IK10, NEMA4X) for guaranteed outdoor perimeter and industrial monitoring
- PoE+ power and integrated wall/pole mounts simplify installation and lower infrastructure costs
- Local failover recording with dual microSD slots (up to 512GB each) for uninterrupted evidence capture
- TAA-compliant, FIPS-ready security features and advanced codecs (H.265/H.264) for optimized bandwidth and secure deployments
Quick Specifications
- Product Model
- TNM-C4940TD
- Brand Name
- Hanwha Vision
- Product Name
- Bi-spectrum AI Thermal Camera
- Product Type
- Network Camera
Frequently Bought Together
Hanwha TNM-C4940TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 9.1mm Fixed Thermal Lens, 4.4-9.3mm Motorized Varifocal Visible Lens, White, TAA Compliant
$6,364.78
3 items selected
Total: $7,021.16
Product Information Tabs
Overview
Protect critical sites and improve situational awareness with the Hanwha Vision TNM-C4940TD bi-spectrum AI thermal multi-sensor IP camera. Built as a purpose-driven thermal imaging camera for security and surveillance, it combines an 8MP visible sensor (4K-capable) with a 9.1mm fixed thermal lens and a 4.4–9.3mm motorized varifocal visible lens to deliver precise detection across day and night. The camera’s AI engine isolates people and vehicles to reduce nuisance alerts and its thermal analytics spot temperature anomalies to warn of hot spots or potential equipment failures before they escalate. Certified for harsh environments (IP66/IP67, IK10) and supporting PoE+ for simplified cabling, the TNM-C4940TD is ideal for perimeter monitoring, critical infrastructure, transportation hubs, and industrial sites. Bandwidth-efficient codecs and dual 512GB microSD storage ensure reliable, long-term recording, while TAA compliance supports government and enterprise procurement. Deploy this Hanwha Vision thermal camera to enhance perimeter security, safety monitoring, and remote surveillance — contact your reseller or add to cart to secure your site.
Features
- AI-powered bi-spectrum detection reduces false alarms by identifying people and vehicles in both thermal and visible streams
- Dual thermal (9.1mm fixed) and 4K-capable visible (4.4–9.3mm motorized varifocal) sensors deliver reliable day/night surveillance and temperature anomaly detection
- Rugged, all-weather design (IP66/IP67, IK10, NEMA4X) for guaranteed outdoor perimeter and industrial monitoring
- PoE+ power and integrated wall/pole mounts simplify installation and lower infrastructure costs
- Local failover recording with dual microSD slots (up to 512GB each) for uninterrupted evidence capture
- TAA-compliant, FIPS-ready security features and advanced codecs (H.265/H.264) for optimized bandwidth and secure deployments
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | Bi-spectrum AI Thermal Camera |
| Product Type | Network Camera |
| Product Model | TNM-C4940TD |
| Product Series | T |
| Manufacturer Part Number | TNM-C4940TD/KEX |
| Technical Information | |
| Lens Type | Fixed, Varifocal |
| Night Vision | Yes |
| Optical Zoom | 2.1x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Video Resolution | 1280 x 960 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.4mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 58° |
| Field of View (Horizontal) | 112.1° |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Number of Sensors | 2 |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.95 |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.4-9.3mm |
| Lens Included | Yes |
| Maximum Focal Length | 9.3mm |
| Maximum Thermal Focal Length | 9.14mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 9.99lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | 4K |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Alarm Triggering, Audio Compression, Face Detection, Human Detection, Motion Detection, Privacy Masking, SD Card Local Storage, Vehicle Detection |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
