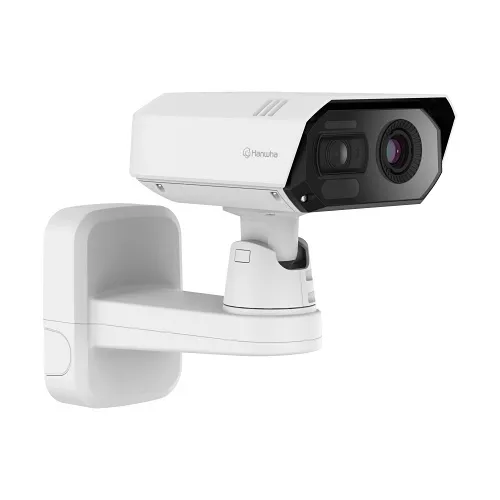

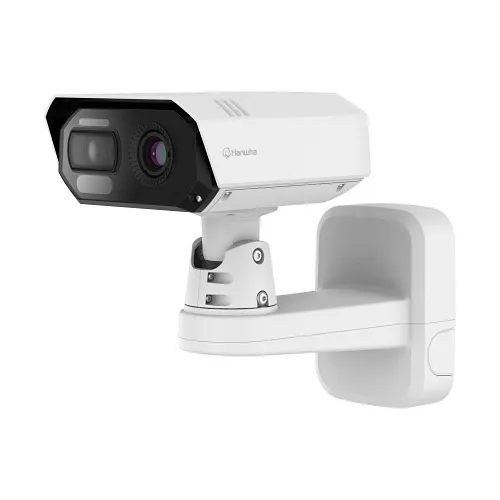

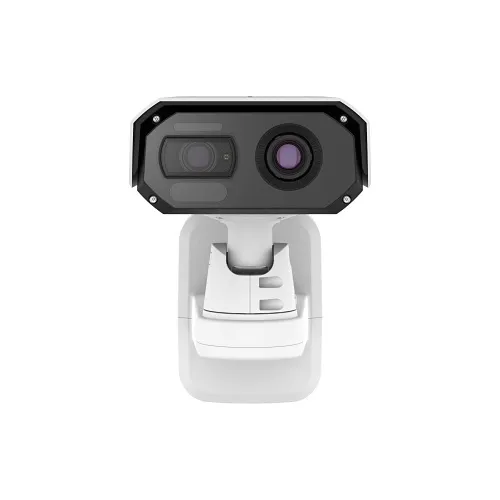

Hanwha TNM-C4950TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 13.5mm Fixed Thermal Lens, 10.9-29mm Motorized Varifocal Visible Lens, White, TAA Compliant
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Dual-spectrum detection merges an 8MP visible sensor with a thermal imager to reliably spot people, vehicles and hot‑spot hazards day or night
- AI-driven analytics reduce false alarms by distinguishing persons, faces and vehicles for accurate perimeter and facility surveillance
- Thermal imaging (13.5mm fixed lens) highlights heat anomalies for early hazard detection while the 10.9–29mm motorized varifocal visible lens delivers detailed identification
- Rugged, all‑weather design (IP66/IP67, IK10, NEMA4X) and PoE+ support simplify installation and ensure continuous operation in harsh environments
- Onboard redundancy with dual 512GB microSD support and FIPS 140-2 security options for secure, local recording and compliance-friendly deployments
Quick Specifications
- Product Model
- TNM-C4950TD
- Brand Name
- Hanwha Vision
- Product Name
- Bi-spectrum AI Thermal Camera
- Product Type
- Network Camera
Frequently Bought Together
Hanwha TNM-C4950TD/KEX Series 8MP Bi-Spectrum AI Thermal Multi-Sensor IP Camera, 13.5mm Fixed Thermal Lens, 10.9-29mm Motorized Varifocal Visible Lens, White, TAA Compliant
$7,533.90
3 items selected
Total: $8,190.28
Product Information Tabs
Overview
Protect critical assets and prevent incidents with the Hanwha Vision TNM-C4950TD Bi‑Spectrum AI Thermal Multi‑Sensor IP Camera, designed for mission‑critical security and continuous monitoring. This multi-sensor network camera combines an 8MP visible sensor with a 13.5mm fixed thermal lens to deliver clear identification plus thermal detection for early hazard and hot‑spot alerts. The 10.9–29mm motorized varifocal visible lens provides flexible coverage and precise zooming for perimeter, parking, and infrastructure surveillance.
Built for real-world deployments, the TNM-C4950TD supports PoE+ for simplified wiring, meets IP66/IP67 and IK10 ratings for weather and impact resistance, and includes dual microSD card slots for redundant local recording. Hanwha’s AI analytics—person/vehicle detection and IVA events—help reduce false alarms and speed incident response, while WiseStream compression optimizes bandwidth. TAA compliance and FIPS 140-2 options make it suitable for government and enterprise projects.
Ideal for perimeter security, critical infrastructure, transportation hubs and industrial sites, this bi‑spectrum thermal camera delivers proactive surveillance and reliable monitoring. Contact us for a site evaluation or to add the TNM-C4950TD to your security solution.
Features
- Dual-spectrum detection merges an 8MP visible sensor with a thermal imager to reliably spot people, vehicles and hot‑spot hazards day or night
- AI-driven analytics reduce false alarms by distinguishing persons, faces and vehicles for accurate perimeter and facility surveillance
- Thermal imaging (13.5mm fixed lens) highlights heat anomalies for early hazard detection while the 10.9–29mm motorized varifocal visible lens delivers detailed identification
- Rugged, all‑weather design (IP66/IP67, IK10, NEMA4X) and PoE+ support simplify installation and ensure continuous operation in harsh environments
- Onboard redundancy with dual 512GB microSD support and FIPS 140-2 security options for secure, local recording and compliance-friendly deployments
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | Bi-spectrum AI Thermal Camera |
| Product Type | Network Camera |
| Product Model | TNM-C4950TD |
| Product Series | T |
| Manufacturer Part Number | TNM-C4950TD/KEX |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 2.7x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.7 |
| Video Resolution | 1280 x 960 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.9mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 22.8° |
| Field of View (Horizontal) | 42° |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Number of Sensors | 2 |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.95 |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 10.9-29mm |
| Lens Included | Yes |
| Minimum Aperture | f/1.73 |
| Maximum Focal Length | 29mm |
| Maximum Thermal Focal Length | 13.46mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 9.99lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | 4K |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Anti-flicker, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Mirror, Motion Detection, Privacy Masking, Tamper Detection, White Balance, Wide Dynamic Range |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
