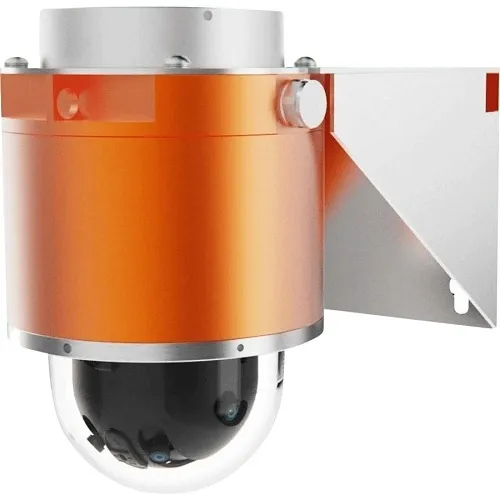

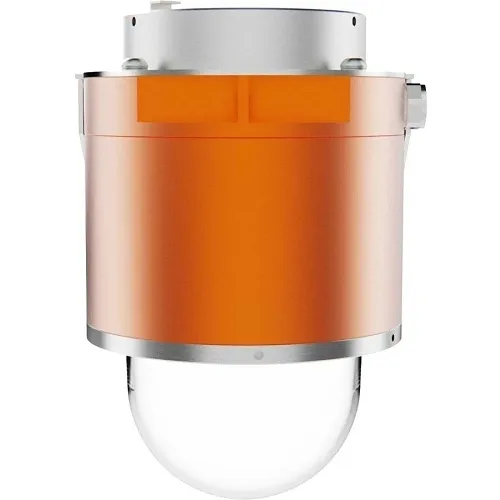

Hanwha TNM-P9022EPT3-Z T Series 2MP 4-Channel Panoramic Camera, Stitched, Explosion Proof
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Explosion-proof, cFMus and IECEx/ATEX certified housing protects personnel and equipment in Class I/II/III Division 1 and Zone 1 hazardous locations.

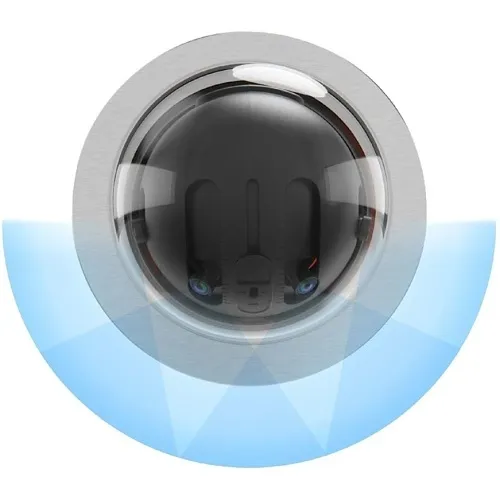

- Four-sensor stitched panoramic view delivers up to 209° horizontal coverage, reducing blind spots and lowering the number of cameras required for full-area monitoring.
- PoE+ power and remote management simplify installation and on-network deployment for faster commissioning and lower labor costs.
- Rugged IP66/IP67, corrosion-resistant aluminum enclosure built in the USA ensures continuous operation in harsh weather and offshore environments.
- Extreme WDR (120 dB) and intelligent video analytics improve detection accuracy in challenging lighting for reliable security and surveillance.
- H.264/H.265 compression and local SD storage reduce bandwidth and storage expenses while maintaining clear 2MP video for incident review.
Quick Specifications
- Product Model
- TNM-P9022EPT3-Z
- Brand Name
- Hanwha Vision
- Product Name
- Explosion Proof Panoramic camera
- Product Type
- Panoramic Camera
Frequently Bought Together
Hanwha TNM-P9022EPT3-Z T Series 2MP 4-Channel Panoramic Camera, Stitched, Explosion Proof
$8,873.96
5 items selected
Total: $9,979.25
Product Information Tabs
Overview
Designed for continuous, safe surveillance in the most demanding industrial environments, the Hanwha Vision TNM-P9022EPT3-Z T Series panoramic camera combines explosion-proof certification with panoramic monitoring to protect people, assets and processes. This stitched 4-channel, 2MP panoramic camera delivers expansive 209° horizontal coverage and seamless image stitching to eliminate blind spots and reduce total camera deployment. Built to meet cFMus Class I/II/III Division 1 and IECEx/ATEX Zone 1/21 standards, the US-made aluminum housing resists corrosion and stands up to IP66/IP67 weather exposure for reliable outdoor performance.
Operational benefits include PoE+ power and remote management for simplified network integration, Extreme WDR (120 dB) for clear footage in backlit or high-contrast scenes, and onboard video analytics for motion, tamper and object detection. H.265 compression and SD card support lower bandwidth and storage costs without sacrificing evidence-quality video. Ideal for petrochemical plants, refineries, offshore platforms, grain handling and other hazardous-area security applications, the TNM-P9022EPT3-Z delivers certified, centralized situational awareness. Contact your Hanwha Vision dealer to specify mounts and deploy a hazardous-area panoramic surveillance solution.
Features
- Explosion-proof, cFMus and IECEx/ATEX certified housing protects personnel and equipment in Class I/II/III Division 1 and Zone 1 hazardous locations.
- Four-sensor stitched panoramic view delivers up to 209° horizontal coverage, reducing blind spots and lowering the number of cameras required for full-area monitoring.
- PoE+ power and remote management simplify installation and on-network deployment for faster commissioning and lower labor costs.
- Rugged IP66/IP67, corrosion-resistant aluminum enclosure built in the USA ensures continuous operation in harsh weather and offshore environments.
- Extreme WDR (120 dB) and intelligent video analytics improve detection accuracy in challenging lighting for reliable security and surveillance.
- H.264/H.265 compression and local SD storage reduce bandwidth and storage expenses while maintaining clear 2MP video for incident review.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | Explosion Proof Panoramic camera |
| Product Type | Panoramic Camera |
| Product Model | TNM-P9022EPT3-Z |
| Product Series | T |
| Manufacturer Part Number | TNM-P9022EPT3-Z |
| Technical Information | |
| Lens Type | Fixed |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.8mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 83° |
| Field of View (Horizontal) | 209° |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Number of Sensors | 4 |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 95% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -4°F |
| Exposure | |
| Minimum Illumination | 0.01 lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Width | 8.59" |
| Height | 13.67" |
| Weight | 27lb |
| Durability | Corrosion Resistant, Damage Resistant, Dust Resistant, Explosionproof, Waterproof, Weather Resistant |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Highlight Compensation (HLC), Microphone In, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Tamper Detection, Video Content Analytics, Wide Dynamic Range |
| Country of Origin | US |
