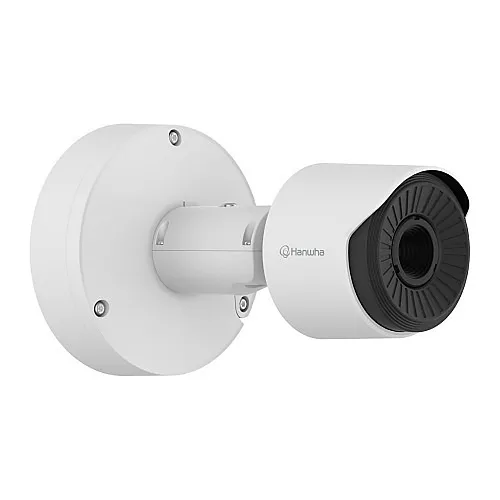

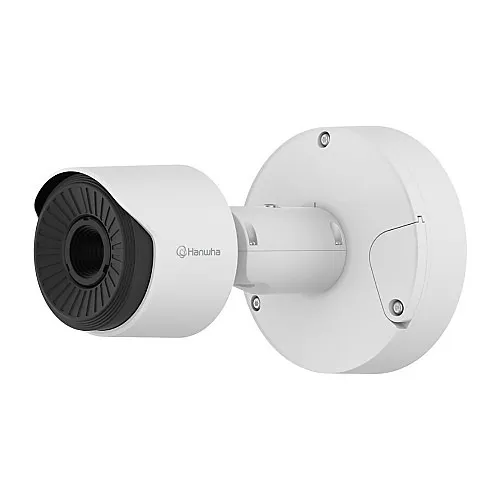

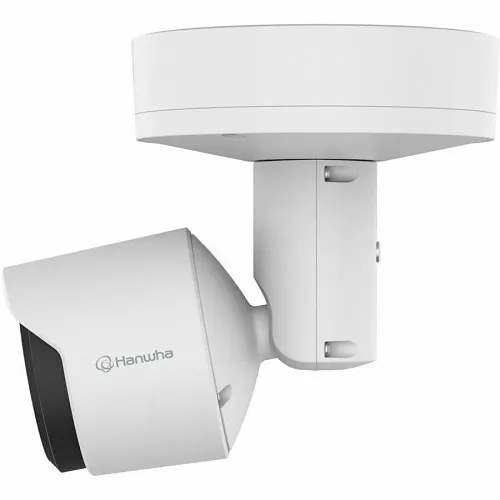

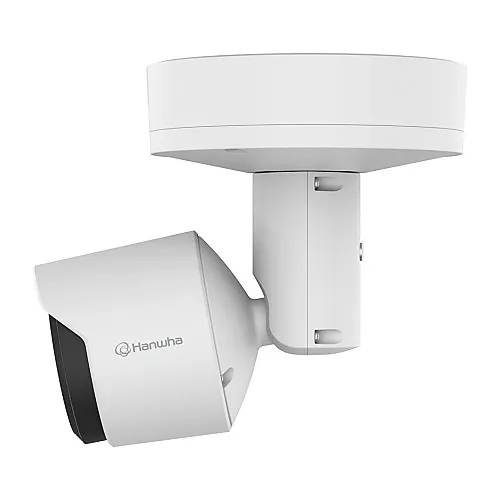

Hanwha TNO-C3032TRA Radiometric AI Thermal Camera, 9.7mm Fixed Focal, IP66, IK10, NEMA4X, White
Image of 5
Key Features
- AI-powered person and vehicle classification reduces false alarms and improves situational awareness for security and surveillance teams
- Radiometric temperature measurement (-40°C to 550°C) enables predictive maintenance and rapid fault detection in industrial monitoring
- Rugged IP66, IK10, NEMA4X-rated housing for reliable outdoor operation in harsh environmental conditions
- Compact 9.7mm fixed focal bullet design simplifies installation while providing a 37.9° horizontal field of view for perimeter coverage
- High-sensitivity QVGA microbolometer (NETD 30mK) delivers clear thermal imaging in low-contrast conditions such as fog, smoke, or complete darkness
- Networked with RJ-45 and remote management support for seamless integration into existing security and surveillance systems
Quick Specifications
- Product Model
- TNO-C3032TRA
- Brand Name
- Hanwha Vision
- Product Name
- QVGA Radiometric Bullet
- Product Type
- Bullet Camera

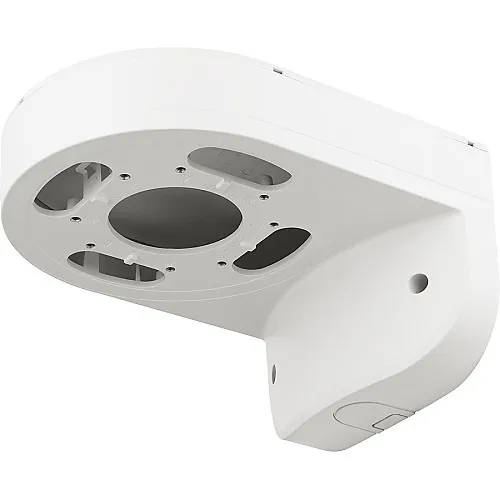

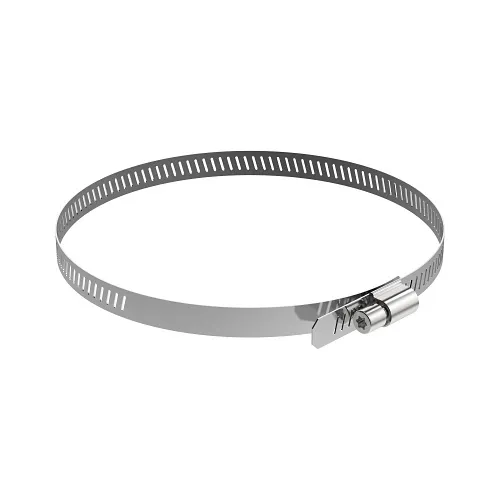

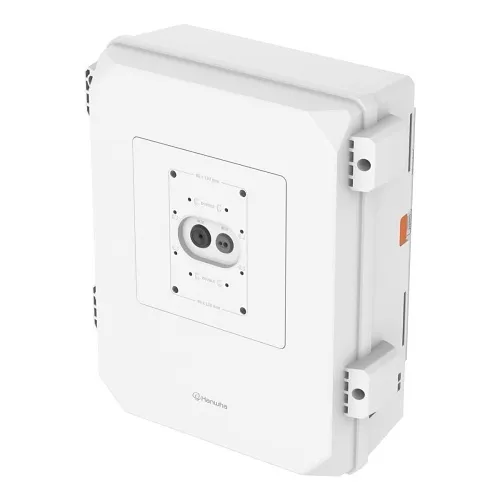

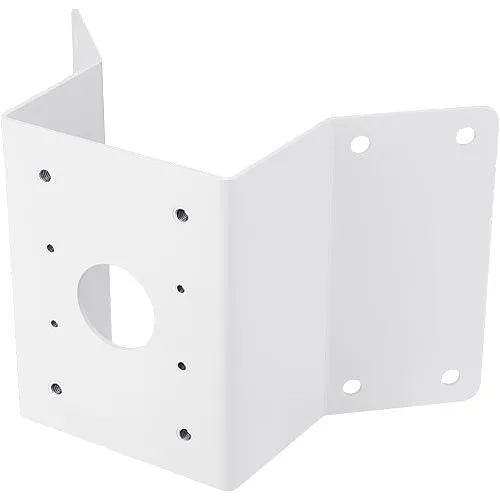

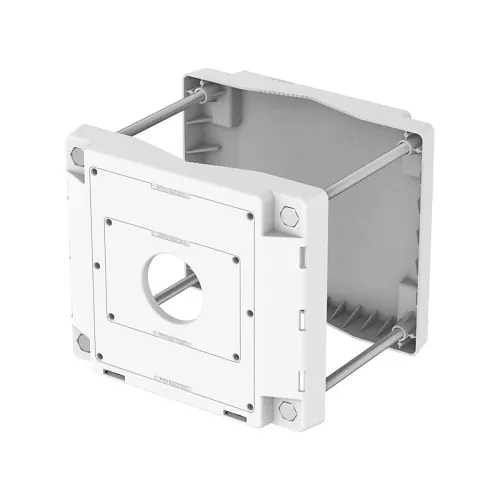

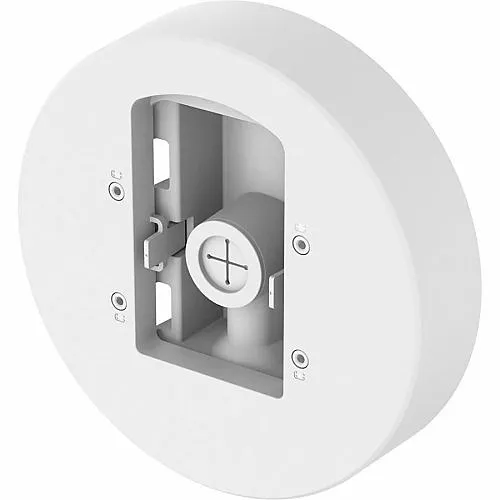

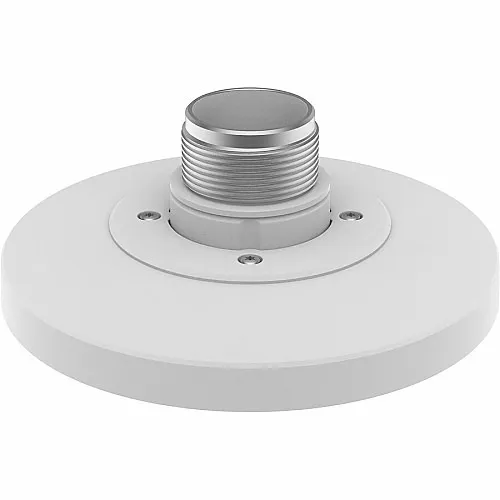

Frequently Bought Together
Hanwha TNO-C3032TRA Radiometric AI Thermal Camera, 9.7mm Fixed Focal, IP66, IK10, NEMA4X, White
$3,457.79
10 items selected
Total: $4,822.87
Product Information Tabs
Overview
Optimize perimeter security and industrial monitoring with the Hanwha Vision TNO-C3032TRA radiometric thermal camera. Built for real-world surveillance, this thermal imaging camera combines AI-based person and vehicle classification with precise radiometric temperature sensing (-40°C to 550°C), helping teams detect security events and equipment failures earlier while cutting false alarms. The compact bullet form with a 9.7mm fixed focal lens and a wide 37.9° horizontal field of view is ideal for quick deployment across facilities, substations, and perimeter lines. A QVGA uncooled microbolometer with NETD 30mK provides high-sensitivity thermal imagery even in fog, smoke, or total darkness, while rugged IP66, IK10 and NEMA4X ratings ensure reliable outdoor operation. Networked connectivity and remote management simplify integration into modern VMS and NVR platforms for central monitoring and response. Suitable for security, surveillance, predictive maintenance and process safety, the TNO-C3032TRA helps reduce downtime and boost operational visibility. Contact us to specify this Hanwha Vision thermal camera for your next monitoring or security project.
Features
- AI-powered person and vehicle classification reduces false alarms and improves situational awareness for security and surveillance teams
- Radiometric temperature measurement (-40°C to 550°C) enables predictive maintenance and rapid fault detection in industrial monitoring
- Rugged IP66, IK10, NEMA4X-rated housing for reliable outdoor operation in harsh environmental conditions
- Compact 9.7mm fixed focal bullet design simplifies installation while providing a 37.9° horizontal field of view for perimeter coverage
- High-sensitivity QVGA microbolometer (NETD 30mK) delivers clear thermal imaging in low-contrast conditions such as fog, smoke, or complete darkness
- Networked with RJ-45 and remote management support for seamless integration into existing security and surveillance systems
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | QVGA Radiometric Bullet |
| Product Type | Bullet Camera |
| Product Model | TNO-C3032TRA |
| Manufacturer Part Number | TNO-C3032TRA |
| Technical Information | |
| Lens Type | Fixed |
| Field of View | Diagonal, Horizontal, Vertical |
| Maximum Aperture | f/1 |
| Video Resolution | 768 x 576 |
| Maximum Frame Rate | 8fps |
| Minimum Focal Length | 9.7mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 28.7° |
| Field of View (Horizontal) | 37.9° |
| Camera | |
| Image Sensor Type | Uncooled Microbolometer |
| Certifications | |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 768 x 576 |
| Environmental Conditions | |
| Operating Humidity | 95% RH (Non-condensing) |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -40°F |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 9.7mm |
| Lens Included | Yes |
| Maximum Focal Length | 9.7mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 3.75lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 3.7" |
| Storage | |
| Storage Type | Memory Card |
| Miscellaneous | |
| Features | Alarm Triggering, Audio Compression, Audio Detection, Human Detection, Motion Detection, Privacy Masking, Region of Interest, Shock Detection, Vehicle Detection |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Environmental Certification | RoHS |
