Hanwha TNO-L4030T VGA Thermal Camera, 13mm Fixed Lens, IP66, White

SKU: TNO-L4030T Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

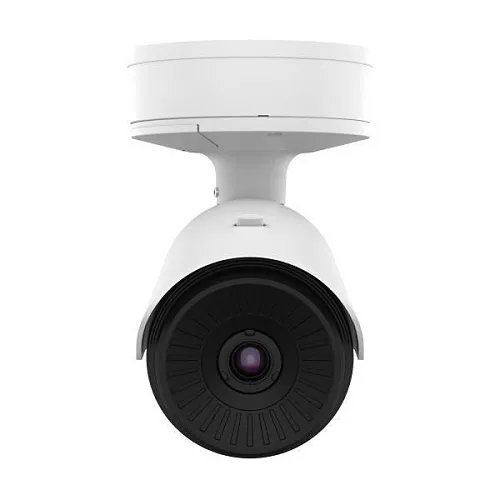

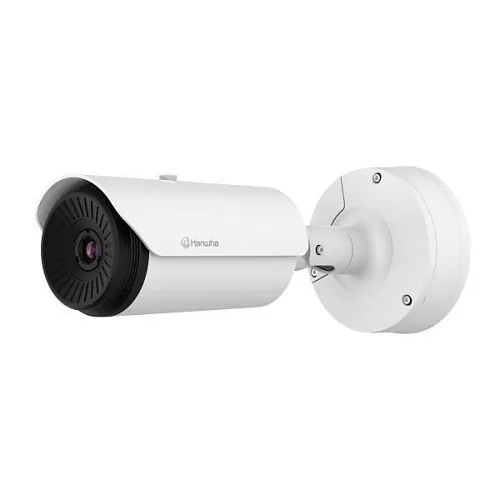

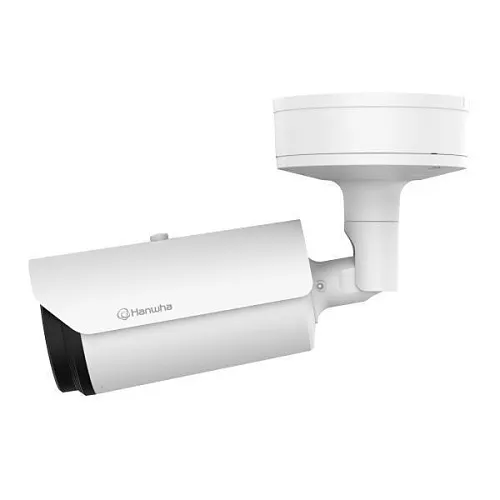

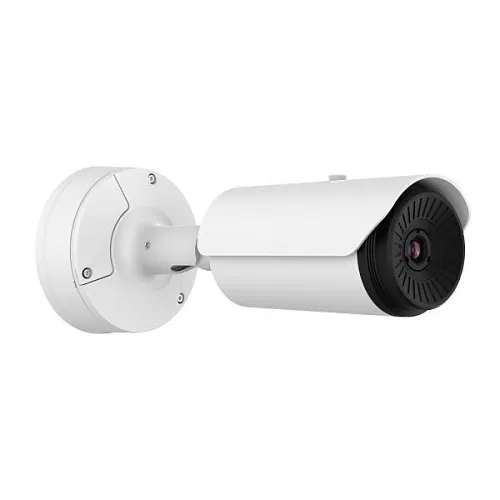

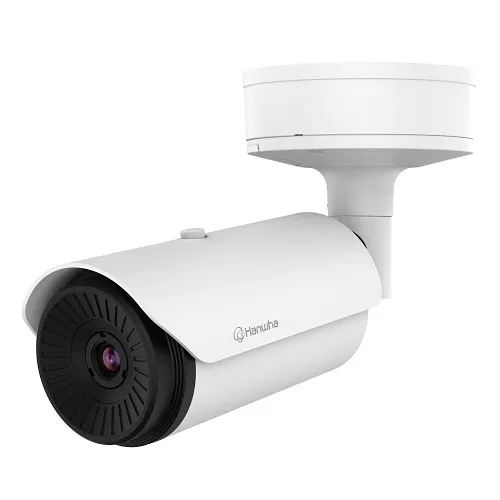

Image of SQ-TNOL4030T
Product images for Hanwha TNO-L4030T VGA Thermal Camera, 13mm Fixed Lens, IP66, White. 6 image(s) available. Click on image to view full size.

Key Features

  • Reliable perimeter detection with thermal imaging for 24/7 security monitoring, even in complete darkness or smoke
  • Durable IP66/IK10-rated housing and impact-resistant design for long-term outdoor surveillance
  • 13mm fixed lens and VGA (640×480) thermal sensor deliver clear target detection at distance for fast incident response
  • Low-light and day/night-ready performance with f/1 aperture and uncooled microbolometer technology for consistent image quality
  • Network-ready with RJ-45 connectivity, H.264/H.265 streaming and remote management for easy integration into existing security systems

Quick Specifications

Product Model
TNO-L4030T
Brand Name
Hanwha Vision
Product Name
VGA Thermal Camera
Product Type
Thermal Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha TNO-L4030T VGA Thermal Camera, 13mm Fixed Lens, IP66, White

Hanwha TNO-L4030T VGA Thermal Camera, 13mm Fixed Lens, IP66, White

$4,283.98

Frequently Bought Together (2 items)

3 items selected

Total: $4,940.36

Product Information Tabs

Overview

Designed for dependable perimeter and remote surveillance, the Hanwha Vision TNO-L4030T VGA thermal camera gives security teams reliable detection where visible cameras struggle. This thermal camera uses an uncooled microbolometer and a 13mm fixed lens to produce 640×480 VGA thermal imagery with an f/1 aperture, enabling clear target identification in fog, smoke, and total darkness. Built to withstand harsh environments, the IP66-rated, IK10-impact-resistant bullet housing provides dependable outdoor monitoring. Network-ready features include RJ-45 connectivity, H.264/H.265 streaming and remote management for straightforward integration with VMS and NVRs. With built-in video content analytics—motion, tamper and shock detection—operators receive smarter alerts that reduce false alarms and speed response. The TNO-L4030T is ideal for perimeter protection, critical infrastructure, and large-site security where consistent thermal performance and rugged reliability are essential. Upgrade your security posture with a thermal imaging camera designed for real-world monitoring—contact your distributor to specify the TNO-L4030T for your next surveillance deployment.

Features

  • Reliable perimeter detection with thermal imaging for 24/7 security monitoring, even in complete darkness or smoke
  • Durable IP66/IK10-rated housing and impact-resistant design for long-term outdoor surveillance
  • 13mm fixed lens and VGA (640×480) thermal sensor deliver clear target detection at distance for fast incident response
  • Low-light and day/night-ready performance with f/1 aperture and uncooled microbolometer technology for consistent image quality
  • Network-ready with RJ-45 connectivity, H.264/H.265 streaming and remote management for easy integration into existing security systems
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name VGA Thermal Camera
Product Type Thermal Camera
Product Model TNO-L4030T
Manufacturer Part Number TNO-L4030T
Technical Information
Lens Type Fixed
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1
Video Resolution 640 x 480
Maximum Frame Rate 8fps
Minimum Focal Length 13mm
Connectivity Technology Wired
Field of View (Horizontal) 48.6°
Camera
Image Sensor Type Uncooled Microbolometer
Certifications
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 640 x 480
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 140°F
Minimum Operating Temperature -40°F
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 13mm
Lens Included Yes
Maximum Focal Length 13mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 6.89lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Bullet
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 4"
Storage
Storage Type Memory Card
Video
Analog Video Signal Format CVBS
Miscellaneous
Features Audio Detection, Day/Night, Digital Image Stabilization, Mirror, Motion Detection, Privacy Masking, Removable IR Cut-off Filter, Shock Detection, Tamper Detection, Tampering Alarm, Video Content Analytics, Wide Dynamic Range
Impact Protection Rating IK10
