Hanwha TNU-4051T/KUS Series 640 480 VGA Thermal Positioning Camera, 35mm Fixed Lens, White, TAA Compliant

SKU: TNU-4051TKUS MPN: TNU-4051T/KUS Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

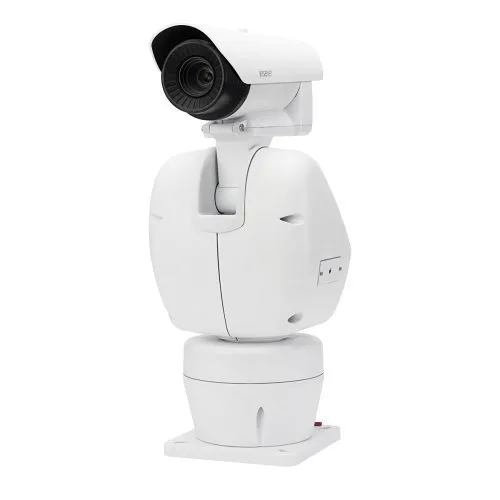

Image of SQ-TU451TKUS
Product images for Hanwha TNU-4051T/KUS Series 640 480 VGA Thermal Positioning Camera, 35mm Fixed Lens, White, TAA Compliant. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Detect threats day or night with high-sensitivity 640 x 480 VGA thermal imaging for reliable intrusion detection and situational awareness.
  • Cover large areas with 360° endless pan and -90° to +40° tilt plus 300 programmable presets to quickly focus on critical zones.
  • Long-range focus and clarity from a built-in 35 mm fixed lens, ideal for perimeter and critical infrastructure surveillance.
  • Rugged, all-weather design (IP66, IK10) and -40°F to 140°F rating for dependable outdoor monitoring in extreme environments.
  • Optimized bandwidth and storage with H.265, WiseStream II and on-board SD support; TAA-compliant for government procurement.

Quick Specifications

Product Model
TNU-4051T
Brand Name
Hanwha Vision
Product Name
VGA Thermal Positioning Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha TNU-4051T/KUS Series 640 480 VGA Thermal Positioning Camera, 35mm Fixed Lens, White, TAA Compliant

Hanwha TNU-4051T/KUS Series 640 480 VGA Thermal Positioning Camera, 35mm Fixed Lens, White, TAA Compliant

$11,480.22

Frequently Bought Together (2 items)

3 items selected

Total: $12,136.60

Product Information Tabs

Overview

Built for mission-critical security, the Hanwha Vision TNU-4051T VGA thermal positioning camera delivers reliable detection and tracking when visible-light cameras fail. This thermal imaging camera combines a 640 x 480 uncooled microbolometer and a 35 mm fixed lens to provide clear thermal detail for perimeter surveillance, asset protection, and remote site monitoring. Continuous 360° endless pan, -90° to +40° tilt and 300 preset positions let operators rapidly lock onto incidents and patrol large coverage areas with precision. The unit records smoothly at 30 fps and reduces network load using H.265 and WiseStream II, while on-board SD storage supports edge recording. Built to withstand harsh conditions, the TNU-4051T is IP66 and IK10 rated and operates from -40°F to 140°F, making it ideal for critical infrastructure, transportation hubs, and border security. TAA compliance simplifies procurement for governmental projects. For dependable thermal surveillance that improves detection, response, and operational efficiency, integrate the Hanwha Vision TNU-4051T into your security system or contact us for a demo and quote.

Features

  • Detect threats day or night with high-sensitivity 640 x 480 VGA thermal imaging for reliable intrusion detection and situational awareness.
  • Cover large areas with 360° endless pan and -90° to +40° tilt plus 300 programmable presets to quickly focus on critical zones.
  • Long-range focus and clarity from a built-in 35 mm fixed lens, ideal for perimeter and critical infrastructure surveillance.
  • Rugged, all-weather design (IP66, IK10) and -40°F to 140°F rating for dependable outdoor monitoring in extreme environments.
  • Optimized bandwidth and storage with H.265, WiseStream II and on-board SD support; TAA-compliant for government procurement.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name VGA Thermal Positioning Camera
Product Type Network Camera
Product Model TNU-4051T
Product Series T
Manufacturer Part Number TNU-4051T/KUS
Technical Information
Lens Type Fixed
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1
Video Resolution 640 x 480
Maximum Frame Rate 30fps
Minimum Focal Length 35mm
Connectivity Technology Wired
Field of View (Vertical) 13°
Field of View (Horizontal) 17.2°
Camera
Image Sensor Type Uncooled Microbolometer
Wide Dynamic Range Yes
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -40°F (-40°C)
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 35mm
Lens Included Yes
Maximum Focal Length 35mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 13.2"
Width 8.6"
Height 20.8"
Weight 25.79lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Power Description
Input Voltage 12V DC, 24V AC
Storage
Storage Type Memory Card
Video
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range
Country of Origin KR
Impact Protection Rating IK10
