Hanwha TNU-X6320A1WT1-Z 2MP Explosion Proof PTZ Camera

SKU: TNU-X6320A1WT1-Z Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

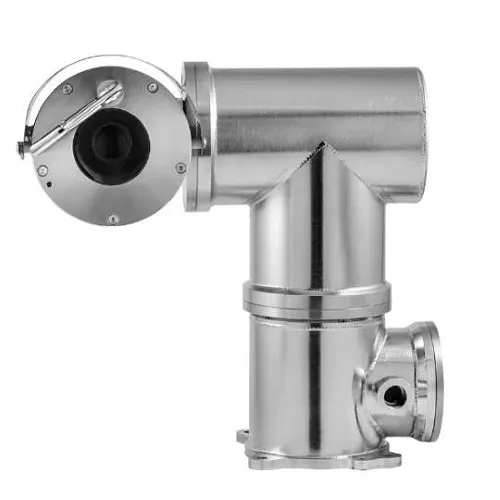

Image of SQ-6320A11Z
Product images for Hanwha TNU-X6320A1WT1-Z 2MP Explosion Proof PTZ Camera. 2 image(s) available. Click on image to view full size.

Key Features

  • Certified explosion-proof design for hazardous areas, enabling continuous security and compliance in onshore, offshore, and heavy industrial sites
  • Powerful long-range coverage with 2MP resolution and 32x optical zoom to identify vehicles, equipment and personnel at distance
  • Exceptional low-light and high-contrast performance (0.0005 lux, 120 dB WDR) for reliable 24/7 surveillance and monitoring
  • Rugged 316L stainless steel housing, IP66/IP67 ingress protection and integrated wiper for marine and corrosive environments
  • Efficient network recording with H.265/WiseStream II, dual SDXC slots and remote management to reduce bandwidth and simplify storage
  • Embedded analytics (motion, tamper, face and line detection) and gyro-stabilized DIS for proactive event detection and clearer imagery

Quick Specifications

Product Model
TNU-X6320A1WT1-Z
Brand Name
Hanwha Vision
Product Name
Explosion Proof PTZ Camera
Product Type
PTZ Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha TNU-X6320A1WT1-Z 2MP Explosion Proof PTZ Camera

Hanwha TNU-X6320A1WT1-Z 2MP Explosion Proof PTZ Camera

$20,266.28

Frequently Bought Together (3 items)

4 items selected

Total: $22,026.44

Product Information Tabs

Overview

Built for continuous, mission-critical security in hazardous environments, the Hanwha Vision TNU-X6320A1WT1-Z explosion-proof PTZ camera delivers dependable surveillance and monitoring where standard cameras can’t operate. This PTZ security camera combines a 2MP sensor with a 32x optical zoom to capture critical detail across long ranges, while 120 dB WDR and ultra-low-light sensitivity (0.0005 lux) ensure clear images day and night. The fully welded 316L stainless steel station, IP66/IP67 rating and integrated wiper resist corrosion and salt spray for reliable marine and offshore performance. Network-friendly H.265 encoding with WiseStream II, dual SDXC storage and built-in analytics reduce bandwidth and enable smarter event-triggered recording for faster incident response. Designed for use in heavy industry, oil & gas, and other hazardous areas, this explosion-proof PTZ camera supports remote management and integrates with existing security systems to streamline deployment. Enhance perimeter protection, process monitoring and asset oversight—contact your Hanwha Vision supplier to specify the TNU-X6320A1WT1-Z for your industrial surveillance application.

Features

  • Certified explosion-proof design for hazardous areas, enabling continuous security and compliance in onshore, offshore, and heavy industrial sites
  • Powerful long-range coverage with 2MP resolution and 32x optical zoom to identify vehicles, equipment and personnel at distance
  • Exceptional low-light and high-contrast performance (0.0005 lux, 120 dB WDR) for reliable 24/7 surveillance and monitoring
  • Rugged 316L stainless steel housing, IP66/IP67 ingress protection and integrated wiper for marine and corrosive environments
  • Efficient network recording with H.265/WiseStream II, dual SDXC slots and remote management to reduce bandwidth and simplify storage
  • Embedded analytics (motion, tamper, face and line detection) and gyro-stabilized DIS for proactive event detection and clearer imagery
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name Explosion Proof PTZ Camera
Product Type PTZ Camera
Product Model TNU-X6320A1WT1-Z
Manufacturer Part Number TNU-X6320A1WT1-Z
Technical Information
Night Vision Yes
Optical Zoom 32x
Field of View 62.8°-2.23°
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.6
Maximum Frame Rate 60fps
Minimum Focal Length 4.44mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
TAA Compliant No
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Maximum Operating Temperature 140°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.0005 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 1 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.44-142.6mm
Lens Included Yes
Minimum Aperture f/4.4
Maximum Focal Length 142.6mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces TNU-X6320E1WT1-Z
Physical Characteristics
Color White
Weight 73lb
Durability Explosion Proof
Form Factor PTZ
Power Description
Input Voltage 24V AC
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1920 x 1080
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 2D Noise Reduction, 3D Noise Filtering, Alarm Triggering, Auto Gain Control, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection, White Balance, Wide Dynamic Range, Wiper
Country of Origin UK
