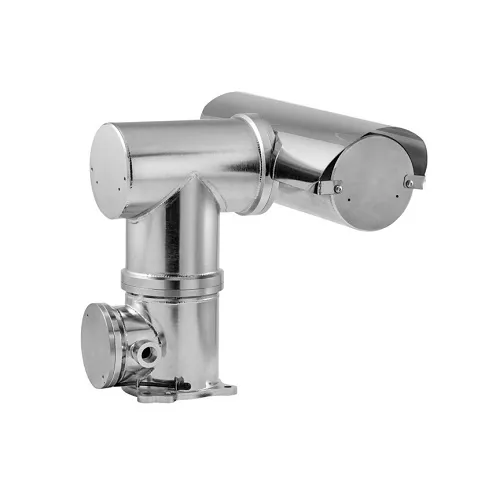

Hanwha TNU-X6320A2F2WT1-Z 2MP Explosion Proof PTZ IP Camera, 4.44-142.6mm Lens, 32x Optical Zoom, 16x Digital Zoom, 110VAC
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 2
Key Features
- Certified explosion-proof housing for safe, continuous surveillance in hazardous onshore, offshore and industrial environments
- Long-range identification with 32x optical zoom and 4.44–142.6mm varifocal lens to capture vital details at distance
- Rugged IP66/IP67 weatherproof design and wide operating temps for reliable outdoor monitoring in extreme conditions
- Low-light performance (0.0005 lux) plus WDR and day/night modes for clear security footage around the clock
- Onboard SD storage, H.265 compression and remote management for efficient network bandwidth and remote monitoring
Quick Specifications
- Product Model
- TNU-X6320A2F2WT1-Z
- Brand Name
- Hanwha Vision
- Product Name
- Explosion Proof PTZ Camera
- Product Type
- PTZ Camera
Frequently Bought Together
Hanwha TNU-X6320A2F2WT1-Z 2MP Explosion Proof PTZ IP Camera, 4.44-142.6mm Lens, 32x Optical Zoom, 16x Digital Zoom, 110VAC
$21,153.68
4 items selected
Total: $22,913.84
Product Information Tabs
Overview
Designed for high-risk environments, the Hanwha Vision TNU-X6320A2F2WT1-Z explosion-proof PTZ camera delivers dependable, long-range surveillance where failure is not an option. This PTZ security camera combines a 2MP sensor with a 32x optical zoom (4.44–142.6mm lens) to identify license plates, personnel and equipment at distance while maintaining clear Full HD evidence quality. Built to withstand harsh conditions, the IP66/IP67-rated, dustproof and waterproof enclosure and wide -40°F to 140°F operating range make it ideal for onshore, offshore, marine and heavy industrial monitoring. Advanced imaging features — including 0.0005 lux low-light sensitivity, Wide Dynamic Range, defog and day/night functionality — ensure usable video in poor lighting and challenging scenes. Network-friendly codecs (H.264/H.265) and onboard SD recording simplify bandwidth and storage management, while dual NPT cable entries and 110VAC power support straightforward installation in existing conduit systems. For security teams responsible for hazardous-area monitoring and industrial surveillance, this Hanwha Vision explosion-proof PTZ camera delivers rugged reliability and actionable situational awareness. Contact us to specify or order this camera for your next hazardous-site installation.
Features
- Certified explosion-proof housing for safe, continuous surveillance in hazardous onshore, offshore and industrial environments
- Long-range identification with 32x optical zoom and 4.44–142.6mm varifocal lens to capture vital details at distance
- Rugged IP66/IP67 weatherproof design and wide operating temps for reliable outdoor monitoring in extreme conditions
- Low-light performance (0.0005 lux) plus WDR and day/night modes for clear security footage around the clock
- Onboard SD storage, H.265 compression and remote management for efficient network bandwidth and remote monitoring
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | Explosion Proof PTZ Camera |
| Product Type | PTZ Camera |
| Product Model | TNU-X6320A2F2WT1-Z |
| Manufacturer Part Number | TNU-X6320A2F2WT1-Z |
| Technical Information | |
| Optical Zoom | 32x |
| Field of View | 62.8°-2.23° |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.44mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | No |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.0005 lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 1 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.44-142.6mm |
| Lens Included | Yes |
| Minimum Aperture | f/4.4 |
| Maximum Focal Length | 142.6mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | TNU-X6320E2F2WT1-Z |
| Physical Characteristics | |
| Color | White |
| Weight | 73lb |
| Durability | Dustproof, Explosionproof, Waterproof |
| Form Factor | PTZ |
| Power Description | |
| Input Voltage | 110V AC |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 2D Noise Reduction, 3D Noise Filtering, Alarm Triggering, Auto Gain Control, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection, White Balance, Wide Dynamic Range, Wiper |
| Country of Origin | UK |
