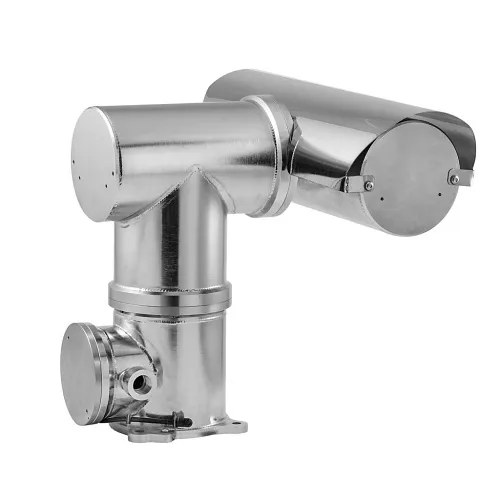

Hanwha TNU-X6320A2WT1-Z 2MP Explosion Proof PTZ Camera with Wiper, 24VAC
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 2
Key Features
- Long-range identification with 32x optical zoom and 2MP Full HD imaging — capture evidentiary detail across large industrial sites
- Built for hazardous areas: electro-polished 316L stainless steel, cLCus C1/D1 certification and IP66/IP67 rating for reliable onshore/offshore operation
- Integrated wiper and toughened glass window to maintain clear optics in rain, spray and harsh environments, reducing maintenance and false alarms
- Bandwidth- and storage-efficient: H.265/H.264 with WiseStream II plus dual SDXC slots for flexible local recording and lower network load
- Stable, clear monitoring in challenging conditions: DIS with gyro, WDR 120dB and ultra-low light sensitivity for day/night surveillance
Quick Specifications
- Product Model
- TNU-X6320A2WT1-Z
- Brand Name
- Hanwha Vision
- Product Name
- Explosion Proof PTZ Camera
- Product Type
- PTZ Camera
Frequently Bought Together
Hanwha TNU-X6320A2WT1-Z 2MP Explosion Proof PTZ Camera with Wiper, 24VAC
$20,266.28
7 items selected
Total: $27,674.93
Product Information Tabs
Overview
Secure critical assets in hazardous environments with the Hanwha Vision TNU-X6320A2WT1-Z explosion-proof PTZ camera — a purpose-built PTZ security camera for dependable industrial surveillance. Delivering 2MP Full HD clarity and a 32x optical zoom, this camera lets operators identify incidents and personnel at long range while WDR 120dB and ultra-low-light performance ensure usable video around the clock. The rugged, electro-polished 316L stainless steel enclosure, toughened glass window and IP66/IP67 rating protect electronics in corrosive offshore, onshore and heavy-industry settings, and the integrated wiper keeps optics clear for continuous monitoring.
Smart compression (H.265/H.264 with WiseStream II), dual SDXC storage and on-board analytics reduce bandwidth and simplify video management for large-scale deployments. Built-in digital image stabilization with a gyro and a wide operating range (-40°C to +60°C) maintain stable streams in vibration-prone or extreme-temperature sites. Powered by 110VAC and certified for classified zones, the TNU-X6320A2WT1-Z is ideal for perimeter security, process monitoring and marine applications. Contact us to configure or order this explosion-proof PTZ camera for your next industrial surveillance project.
Features
- Long-range identification with 32x optical zoom and 2MP Full HD imaging — capture evidentiary detail across large industrial sites
- Built for hazardous areas: electro-polished 316L stainless steel, cLCus C1/D1 certification and IP66/IP67 rating for reliable onshore/offshore operation
- Integrated wiper and toughened glass window to maintain clear optics in rain, spray and harsh environments, reducing maintenance and false alarms
- Bandwidth- and storage-efficient: H.265/H.264 with WiseStream II plus dual SDXC slots for flexible local recording and lower network load
- Stable, clear monitoring in challenging conditions: DIS with gyro, WDR 120dB and ultra-low light sensitivity for day/night surveillance
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | Explosion Proof PTZ Camera |
| Product Type | PTZ Camera |
| Product Model | TNU-X6320A2WT1-Z |
| Manufacturer Part Number | TNU-X6320A2WT1-Z |
| Technical Information | |
| Optical Zoom | 32x |
| Field of View | 62.8°-2.23° |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.44mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | No |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.0005 lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 1 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.44-142.6mm |
| Lens Included | Yes |
| Minimum Aperture | f/4.4 |
| Maximum Focal Length | 142.6mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | TNU-X6320E2WT1-Z |
| Physical Characteristics | |
| Color | White |
| Weight | 73lb |
| Durability | Dustproof, Explosionproof, Waterproof |
| Form Factor | PTZ |
| Power Description | |
| Input Voltage | 110V AC |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 2D Noise Reduction, 3D Noise Filtering, Alarm Triggering, Auto Gain Control, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection, White Balance, Wide Dynamic Range, Wiper |
| Country of Origin | UK |
