Hanwha TNU-X6320A2WT2-C 2MP Explosion Proof PTZ Camera, 4.44-142.6mm Lens, IP66, IP67

SKU: TNU-X6320A2WT2-C Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

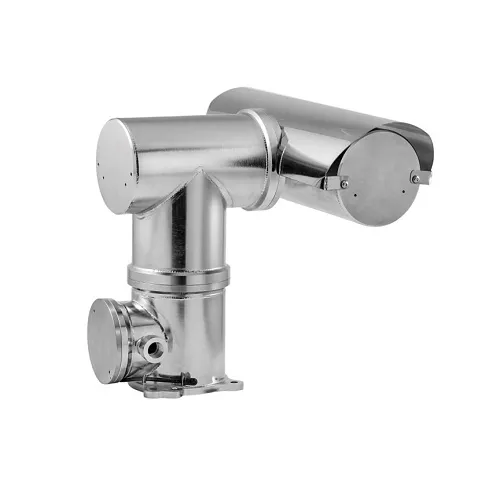

Image of SQ-6320A22C
Product images for Hanwha TNU-X6320A2WT2-C 2MP Explosion Proof PTZ Camera, 4.44-142.6mm Lens, IP66, IP67. 2 image(s) available. Click on image to view full size.

Key Features

  • Explosion-proof PTZ design for safe, continuous monitoring in hazardous onshore, offshore and heavy industrial environments
  • 32x optical zoom and 2MP Full HD imaging to capture clear detail at long range for fast incident identification and evidence-grade footage
  • IP66/IP67 and wide temperature rating provide reliable outdoor durability against dust, water and extreme climates
  • Ultra-low light sensitivity (0.0005 lux) and WDR ensure usable images day or night, reducing missed events and false alarms
  • Dual NPT cable entries and standard conduit compatibility simplify installation and maintenance in existing industrial wiring systems

Quick Specifications

Product Model
TNU-X6320A2WT2-C
Brand Name
Hanwha Vision
Product Name
Explosion Proof PTZ Camera
Product Type
PTZ Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha TNU-X6320A2WT2-C 2MP Explosion Proof PTZ Camera, 4.44-142.6mm Lens, IP66, IP67

Hanwha TNU-X6320A2WT2-C 2MP Explosion Proof PTZ Camera, 4.44-142.6mm Lens, IP66, IP67

$20,266.28

Frequently Bought Together (3 items)

4 items selected

Total: $22,026.44

Product Information Tabs

Overview

Built for continuous, reliable surveillance in the toughest environments, the Hanwha Vision TNU-X6320A2WT2-C explosion-proof PTZ camera delivers industrial-grade monitoring where safety and uptime matter most. This PTZ security camera combines a 2MP Full HD sensor with 32x optical zoom to provide long-range, detail-rich video for perimeter, process and asset protection across onshore, offshore and marine facilities.

Engineered to withstand dust, water and hazardous atmospheres, the camera carries IP66/IP67 ratings and an explosion-protected housing to meet stringent site requirements. Advanced imaging—including ultra-low light performance (0.0005 lux), wide dynamic range and H.264/H.265 codec support—keeps critical surveillance streams sharp and bandwidth-efficient. Installers benefit from dual NPT cable entries and conduit-friendly wiring for faster deployments in existing infrastructure.

Ideal for industrial security, oil & gas, utilities and heavy manufacturing, the TNU-X6320A helps reduce false alarms, improve incident response and extend monitoring coverage with robust, weatherproof performance. Contact us to specify this Hanwha Vision PTZ camera for your hazardous-area surveillance project or to request a quote.

Features

  • Explosion-proof PTZ design for safe, continuous monitoring in hazardous onshore, offshore and heavy industrial environments
  • 32x optical zoom and 2MP Full HD imaging to capture clear detail at long range for fast incident identification and evidence-grade footage
  • IP66/IP67 and wide temperature rating provide reliable outdoor durability against dust, water and extreme climates
  • Ultra-low light sensitivity (0.0005 lux) and WDR ensure usable images day or night, reducing missed events and false alarms
  • Dual NPT cable entries and standard conduit compatibility simplify installation and maintenance in existing industrial wiring systems
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name Explosion Proof PTZ Camera
Product Type PTZ Camera
Product Model TNU-X6320A2WT2-C
Manufacturer Part Number TNU-X6320A2WT2-C
Technical Information
Optical Zoom 32x
Field of View 62.8°-2.23°
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.6
Maximum Frame Rate 60fps
Minimum Focal Length 4.44mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
TAA Compliant No
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Maximum Operating Temperature 140°F
Minimum Operating Temperature -76°F
Exposure
Minimum Illumination 0.0005 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 1 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.44-142.6mm
Lens Included Yes
Minimum Aperture f/4.4
Maximum Focal Length 142.6mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces TNU-X6320E2WT1-C, TNU-X6320E2WT2-C
Physical Characteristics
Color White
Weight 73lb
Durability Dustproof, Explosionproof, Waterproof
Form Factor PTZ
Power Description
Input Voltage 110V AC
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 2D Noise Reduction, 3D Noise Filtering, Alarm Triggering, Auto Gain Control, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection, White Balance, Wide Dynamic Range, Wiper
Country of Origin UK
