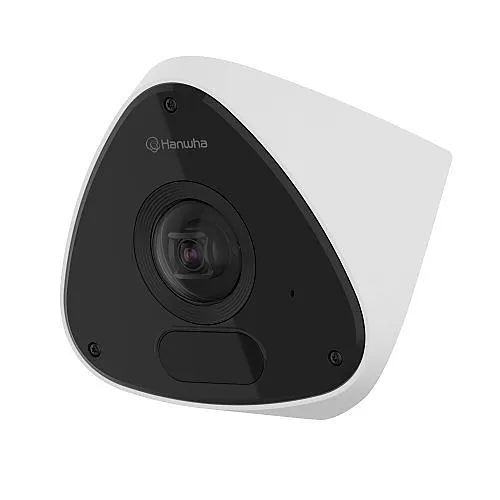

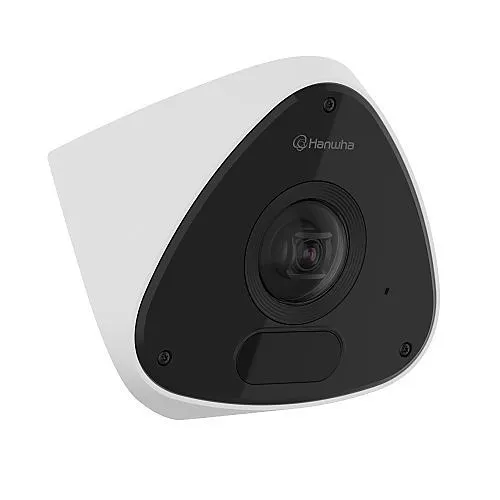

Hanwha TNV-C7013RC 3MP AI Corner Mount Camera 2.39mm Fixed Lens, White

SKU: TNV-C7013RC Hanwha Vision
Image of SQ-TNVC713RC
Product images for Hanwha TNV-C7013RC 3MP AI Corner Mount Camera 2.39mm Fixed Lens, White. 4 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Discreet 24/7 monitoring with invisible 940nm IR up to 15m, eliminating visible glow that can distress occupants in sensitive facilities.
  • AI-driven analytics (person, face, vehicle, license plate and clothes color detection) reduce false alarms and speed incident response for security teams.
  • Anti-ligature corner-mount design combined with IK10 impact protection and IP66/IP69 weatherproofing for safe, durable indoor/outdoor deployments.
  • Wide 128° x 100° field of view and 3MP resolution with a 2.39mm fixed lens deliver comprehensive room coverage from a compact corner footprint.
  • Onboard microSD storage (up to 1TB) and efficient H.265 compression enable reliable local recording and bandwidth-friendly network monitoring.

Quick Specifications

Product Model
TNV-C7013RC
Brand Name
Hanwha Vision
Product Name
3MP AI IR Vandal Corner Camera
Product Type
Vandal Corner Camera
View Full Technical Specifications

Product Information Tabs

Overview

For facilities that require discreet, reliable surveillance, the Hanwha Vision TNV-C7013RC 3MP AI corner mount camera delivers continuous, low-profile security and monitoring. This anti-ligature dome camera combines a compact corner-mount form factor with a 2.39mm fixed lens and 3MP resolution to provide wide-area coverage without blind spots. Invisible 940nm IR illumination extends night visibility up to 15 meters without the visible glow of traditional IR, making it ideal for correctional, behavioral health and patient-care environments.

Built on Hanwha Vision's Wisenet platform, the TNV-C7013RC includes onboard AI analytics—person/face/vehicle/license plate classification and clothes color detection—to cut false positives and prioritize actionable alerts. Robust construction (IK10, IP66/IP69) ensures lasting performance outdoors or in high-use indoor areas, while microSD storage up to 1TB and H.265 support simplify recording and network load. Whether you need facility-wide monitoring, perimeter oversight or specialized room coverage, this corner camera balances safety, discretion and smart analytics. Contact our security specialists to specify the TNV-C7013RC for your next surveillance deployment.

Features

  • Discreet 24/7 monitoring with invisible 940nm IR up to 15m, eliminating visible glow that can distress occupants in sensitive facilities.
  • AI-driven analytics (person, face, vehicle, license plate and clothes color detection) reduce false alarms and speed incident response for security teams.
  • Anti-ligature corner-mount design combined with IK10 impact protection and IP66/IP69 weatherproofing for safe, durable indoor/outdoor deployments.
  • Wide 128° x 100° field of view and 3MP resolution with a 2.39mm fixed lens deliver comprehensive room coverage from a compact corner footprint.
  • Onboard microSD storage (up to 1TB) and efficient H.265 compression enable reliable local recording and bandwidth-friendly network monitoring.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 3MP AI IR Vandal Corner Camera
Product Type Vandal Corner Camera
Product Model TNV-C7013RC
Manufacturer Part Number TNV-C7013RC
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 2.39mm
Connectivity Technology Wired
Field of View (Vertical) 100°
Field of View (Horizontal) 128°
Effective Camera Resolution 3MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66, IP69
Display & Graphics
Maximum Video Resolution 2048 x 1536
Environmental Conditions
Operating Humidity 95% RH (Non-condensing)
Maximum Operating Temperature 131°F
Minimum Operating Temperature 14°F
Exposure
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.39mm
Lens Included Yes
Maximum Focal Length 2.39mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces TNV-7011RC
Physical Characteristics
Color White
Depth 7.82"
Width 7.87"
Height 4.13"
Weight 4.27lb
Durability Dustproof, Impact Resistant, Waterproof
Product Information

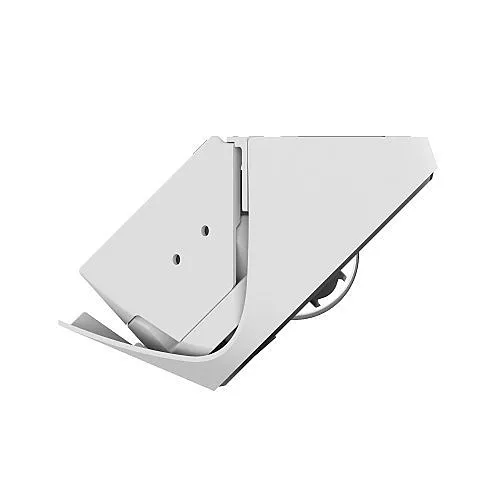

Mount Type Corner Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Back Light Compensation (BLC), Built-in HLC, Built-in IR LED, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Motion Detection, Privacy Masking, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
