Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White

SKU: TNV-C8011RW Hanwha Vision
Image of SQ-TNVC801RW

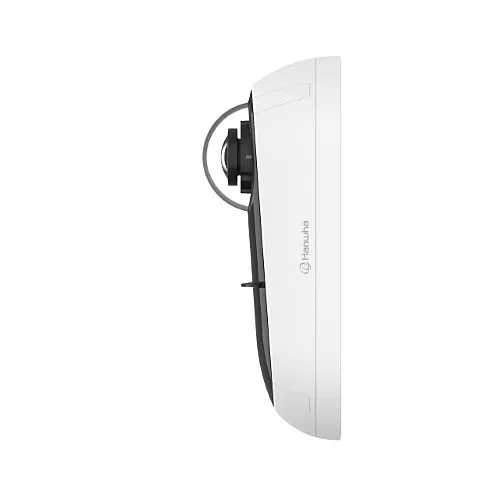

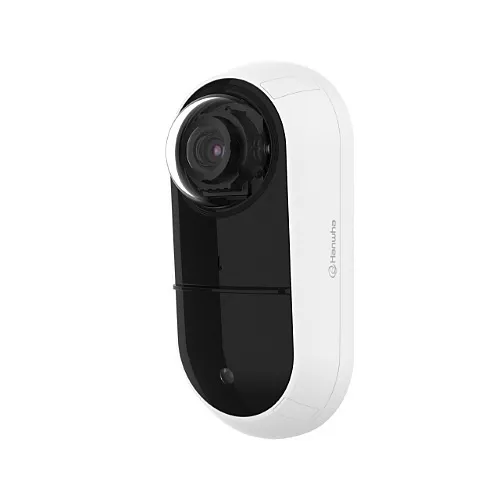

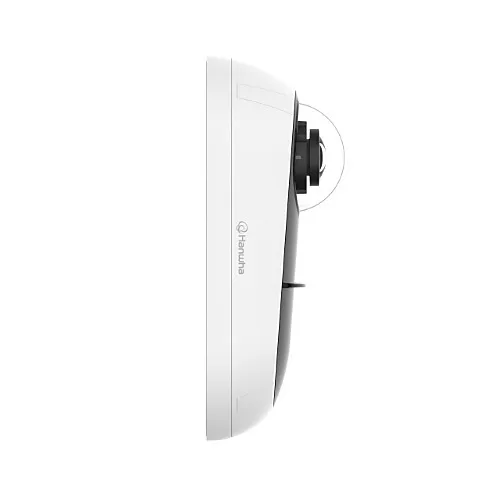

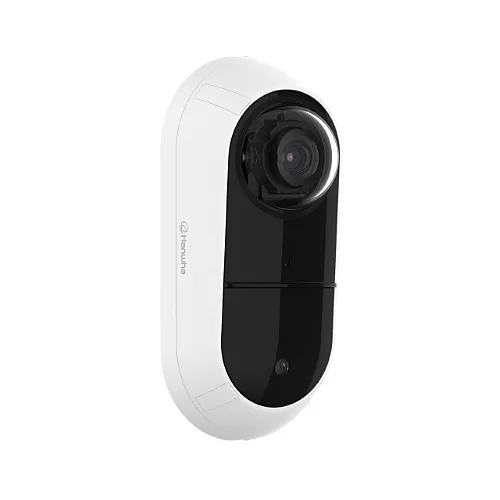

Product images for Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White. 5 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Wide panoramic coverage with a 175° horizontal field of view to reduce blind spots and cut the number of cameras needed
  • AI-powered analytics (loitering, line crossing, people/vehicle counting) for proactive, actionable security insights
  • 5MP resolution with up to 15m IR ensures clear day/night monitoring and reliable identification at a distance
  • Durable, anti-ligature wall-mount design (IP66, IK10) built for harsh environments and sensitive locations
  • Efficient bandwidth and storage with WiseStream III and H.265 support to lower TCO for large deployments

Quick Specifications

Product Model
TNV-C8011RW
Brand Name
Hanwha Vision
Product Name
5MP AI, IR Wall Mount Panoramic Camera
Product Type
Panoramic Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White

Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White

$526.32

Frequently Bought Together (3 items)

4 items selected

Total: $1,534.29

Product Information Tabs

Overview

Designed for demanding security and monitoring environments, the Hanwha Vision TNV-C8011RW covert 5MP AI IR wall mount panoramic camera delivers comprehensive situational awareness with minimal infrastructure. This panoramic camera captures crisp 5MP imagery (2592 x 1944) across a 175° horizontal field of view while built-in IR reaches up to 15m for dependable night surveillance. Integrated AI analytics—loitering detection, line crossing, people and vehicle counting—turn raw video into actionable alerts and business intelligence, simplifying incident response and facility management. The compact, rounded anti-ligature housing is ideal for behavioral health, correctional, retail, and transportation hubs where durability and discrete monitoring matter; it’s rated IP66 and IK10 for outdoor and high-traffic use. Network-friendly codecs (H.264/H.265) and WiseStream III reduce bandwidth and storage costs, making it practical for enterprise-scale deployments. Add a reliable layer of intelligent surveillance to your security plan—specify the Hanwha Vision TNV-C8011RW for clear, continuous monitoring and streamlined analytics. Contact sales to discuss deployment or add to your next procurement.

Features

  • Wide panoramic coverage with a 175° horizontal field of view to reduce blind spots and cut the number of cameras needed
  • AI-powered analytics (loitering, line crossing, people/vehicle counting) for proactive, actionable security insights
  • 5MP resolution with up to 15m IR ensures clear day/night monitoring and reliable identification at a distance
  • Durable, anti-ligature wall-mount design (IP66, IK10) built for harsh environments and sensitive locations
  • Efficient bandwidth and storage with WiseStream III and H.265 support to lower TCO for large deployments
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 5MP AI, IR Wall Mount Panoramic Camera
Product Type Panoramic Camera
Product Model TNV-C8011RW
Product Series T
Manufacturer Part Number TNV-C8011RW
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Video Resolution Yes
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 1.6mm
Connectivity Technology Wired
Field of View (Vertical) 125°
Field of View (Horizontal) 175°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 95% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Minimum Illumination 0.0038 lux
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 1.6mm
Lens Included Yes
Maximum Focal Length 1.6mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 22.4"
Width 31.5"
Height 65.5"
Weight 1.32lb
Durability Dustproof, Impact Resistant, Waterproof
Product Information
Mount Type Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Back Light Compensation (BLC), Built-in HLC, Built-in IR LED, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Motion Detection, Privacy Masking, Wide Dynamic Range
Country of Origin VN
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification CE, FCC, UL
