Hanwha TNV-C8014RM 5MP IR Mobile AI Vandal Camera

SKU: TNV-C8014RM Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

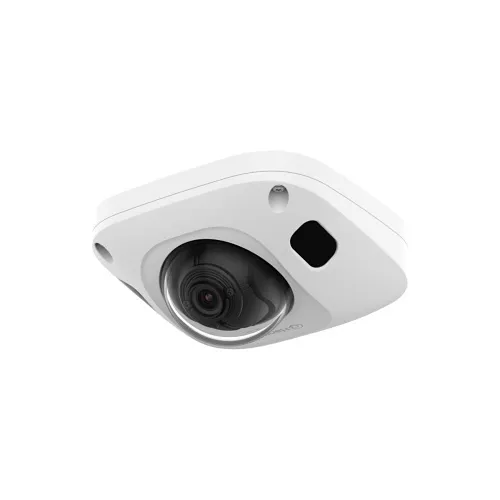

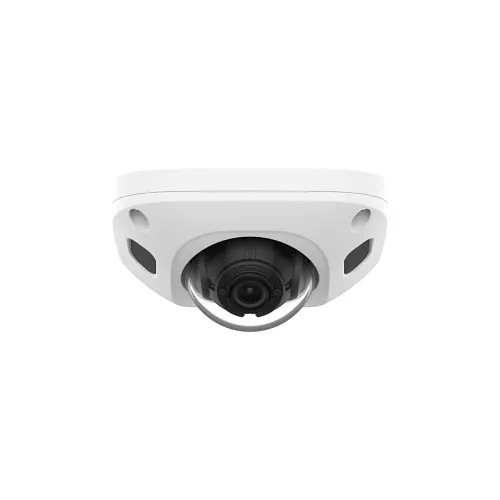

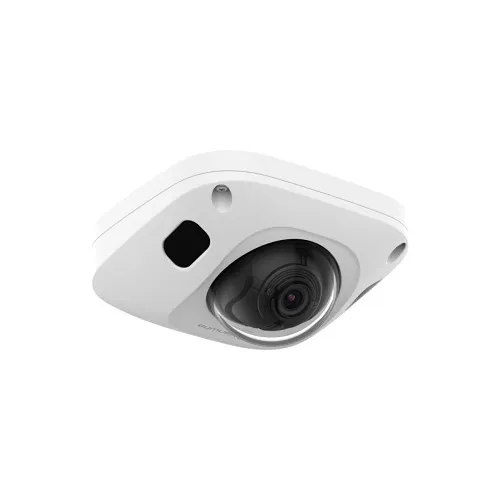

Image of SQ-TNVC8014R
Product images for Hanwha TNV-C8014RM 5MP IR Mobile AI Vandal Camera. 4 image(s) available. Click on image to view full size.

Key Features

  • Edge AI analytics (NPU) for real-time event detection and fewer false alarms, improving response times and operational efficiency
  • Rugged, mobile-ready design with EN50155 compliance, IP66 ingress protection and IK10 impact rating to minimize downtime in harsh or transit environments
  • 5MP resolution with f/1.6 optics and 0.003 lux low-light sensitivity for clear identification day or night
  • Advanced compression (H.265, WiseStreamIII) to reduce bandwidth and storage costs while preserving image quality
  • Built-in EIS, shock detection, heater and wide operating temperature range for stable surveillance in vibration-prone and extreme conditions
  • Integrated microphone and vandal-resistant hard-coated dome for enhanced situational awareness and tamper-resistant installation

Quick Specifications

Product Model
TNV-C8014RM
Brand Name
Hanwha Vision
Manufacturer Part Number
TNV-C8014RM
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha TNV-C8014RM 5MP IR Mobile AI Vandal Camera

Hanwha TNV-C8014RM 5MP IR Mobile AI Vandal Camera

$477.36

Frequently Bought Together (3 items)

4 items selected

Total: $1,935.33

Product Information Tabs

Overview

Built for mission-critical surveillance where reliability and intelligent monitoring matter most, the Hanwha Vision TNV-C8014RM 5MP IR Mobile AI Vandal Camera combines rugged hardware with on-board edge AI to deliver actionable video at the edge. Designed for transportation, city surveillance and perimeter monitoring, this vandal dome camera pairs a 5MP sensor and f/1.6 optics with exceptional low-light sensitivity (down to 0.003 lux) so operators capture recognizable detail around the clock. On-board NPU-driven analytics reduce false alarms and enable faster incident detection, while H.265 and WiseStreamIII compression minimize bandwidth and storage demands. Built to withstand harsh environments, the TNV-C8014RM meets EN50155 standards and offers IP66 ingress protection and IK10 impact resistance, plus heater, EIS and shock detection to ensure continuous operation on vehicles and in outdoor installations. Deploy this Hanwha Vision dome camera to strengthen your security posture, simplify remote monitoring, and lower total cost of ownership. Contact us to discuss deployment options or add it to your next security project.

Features

  • Edge AI analytics (NPU) for real-time event detection and fewer false alarms, improving response times and operational efficiency
  • Rugged, mobile-ready design with EN50155 compliance, IP66 ingress protection and IK10 impact rating to minimize downtime in harsh or transit environments
  • 5MP resolution with f/1.6 optics and 0.003 lux low-light sensitivity for clear identification day or night
  • Advanced compression (H.265, WiseStreamIII) to reduce bandwidth and storage costs while preserving image quality
  • Built-in EIS, shock detection, heater and wide operating temperature range for stable surveillance in vibration-prone and extreme conditions
  • Integrated microphone and vandal-resistant hard-coated dome for enhanced situational awareness and tamper-resistant installation
General Information
Brand Name Hanwha Vision
Manufacturer Part Number TNV-C8014RM
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Maximum Frame Rate 30 fps
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP66
Display & Graphics
Maximum Illumination 0.003 lux, 0.03
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 100%
Maximum Operating Temperature 131°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.03 lux
Lens
Focal Length 3mm
Lens Included Yes
Maximum Focal Length 3mm
Physical Characteristics
Color White
Miscellaneous
Features Analytics events based on AI engine (NPU), EIS, Shock detection, Heater, Built-in Mic, Hard-coated dome bubble
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification CE, FCC, UL
