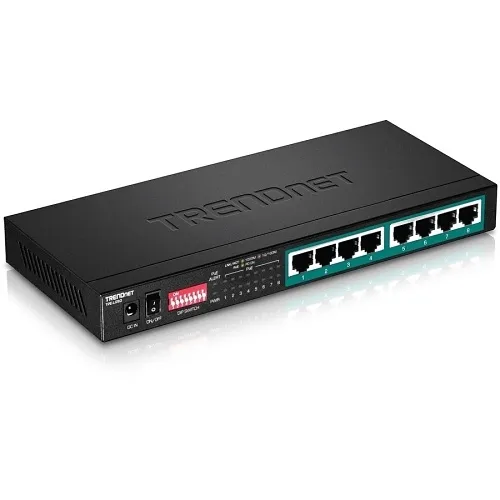

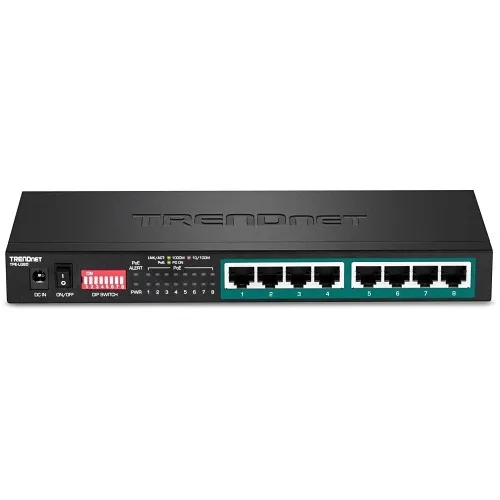

TRENDnet TPE-LG80 8-Port Gigabit Long Range PoE+ Switch, 16Gbps Switching Capacity
Key Features
- Extend PoE to remote devices up to 200m (656 ft.) for cameras and access points
- Power and network up to eight PoE/PoE+ devices with a 65W total budget to simplify deployments
- Eight Gigabit ports with a 16Gbps switching capacity to sustain multi-camera video and VoIP traffic
- Fanless metal design for quiet, reliable edge operation in offices, retail or control rooms
- Plug-and-play setup plus port isolation for fast, secure surveillance and monitoring installations
Quick Specifications
- Product Model
- TPE-LG80
- Brand Name
- TRENDnet
- Product Name
- 8-Port Gigabit Long Range PoE+ Switch
- Product Type
- Ethernet Switch
Product Information Tabs
Overview

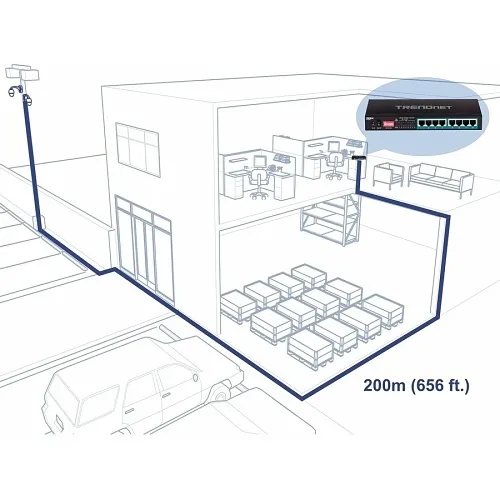

Deploy reliable power and data to remote cameras, access points and VoIP devices with the TRENDnet TPE-LG80 8-Port Gigabit Long Range PoE+ Switch. This compact, unmanaged PoE switch delivers eight Gigabit PoE/PoE+ ports and a 16Gbps switching capacity to handle high-bandwidth video streams and real-time monitoring without complex configuration. A 65W PoE budget powers multiple edge devices, while the selectable long-range mode extends PoE up to 200m (656 ft.) at 10Mbps — perfect for parking lots, warehouses and other extended surveillance runs. The fanless, metal chassis ensures silent, energy-efficient operation in offices and retail environments, and DIP-switch-enabled port isolation helps secure camera segments and reduce lateral traffic. TAA/NDAA compliance and TRENDnet's lifetime protection add procurement confidence for enterprise and government projects. Ideal for security, surveillance and network monitoring deployments, the TPE-LG80 makes it simple to expand PoE reach and maintain reliable, high-quality video and voice services. Add the TPE-LG80 to your network to extend PoE coverage and streamline surveillance and monitoring rollouts.
Features
- Extend PoE to remote devices up to 200m (656 ft.) for cameras and access points
- Power and network up to eight PoE/PoE+ devices with a 65W total budget to simplify deployments
- Eight Gigabit ports with a 16Gbps switching capacity to sustain multi-camera video and VoIP traffic
- Fanless metal design for quiet, reliable edge operation in offices, retail or control rooms
- Plug-and-play setup plus port isolation for fast, secure surveillance and monitoring installations
| General Information | |
|---|---|
| Brand Name | TRENDnet |
| Manufacturer | TRENDnet |
| Product Name | 8-Port Gigabit Long Range PoE+ Switch |
| Product Type | Ethernet Switch |
| Product Model | TPE-LG80 |
| Product Series | TPE |
| Manufacturer Part Number | TPE-LG80 |
| Technical Information | |
| Material | Metal |
| Power Consumption | 10.60W |
| Network Switch Type | Unmanaged |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 1 Gbps |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| I/O Expansions | |
| Shared SFP Slot | No |
| Interfaces/Ports | |
| Modular | No |
| Uplink Port | No |
| Total Number of Network Ports | 8 |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Physical Characteristics | |
| Depth | 18" |
| Width | 12" |
| Height | 3" |
| Weight | 9.02lb |
| Power Description | |
| Frequency | 50 Hz, 60 Hz |
| PoE Budget | 65W |
| Power Source | AC Adapter |
| Input Voltage | 100-240V AC |
| PoE (RJ-45) Port | No |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Length | 9.5" |
| Mount Type | Desktop Mount |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents | Power brick (55V DC, 1.3A), Power cord (1.8m/6 ft.), Quick Installation Guide, TPE-LG80 |
| Country of Origin | TW |
| Environmentally Friendly | Yes |
