AtlasIED TSD-DA13 1x3 Distribution Amplifier

SKU: TSD-DA13 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

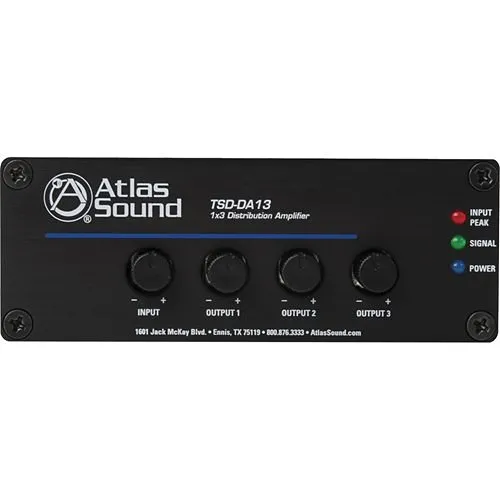

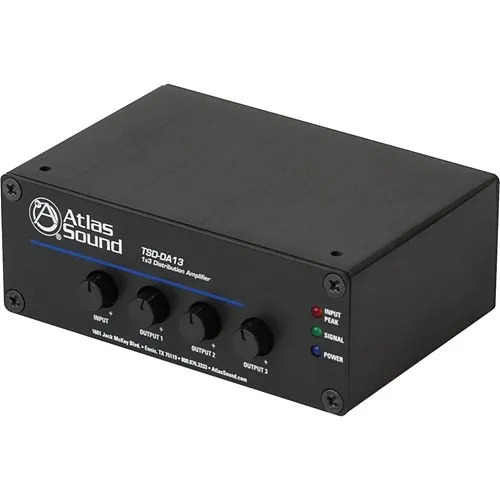

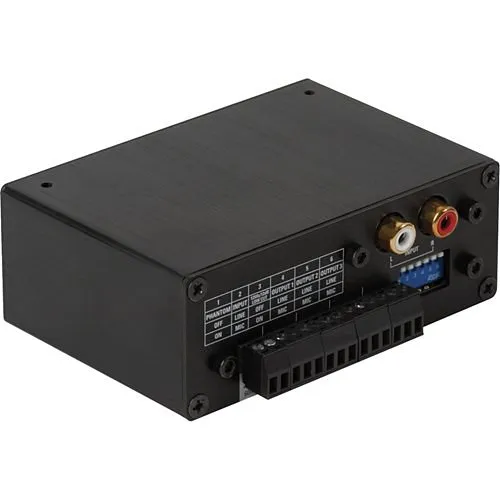

Image of AT-TSDDA13
Product images for AtlasIED TSD-DA13 1x3 Distribution Amplifier. 4 image(s) available. Click on image to view full size.

Key Features

  • Deliver isolated, low-noise mic/line audio to three separate destinations, eliminating crosstalk and impedance mismatch for reliable system performance
  • Flexible level control on each output lets integrators match volume and optimize sound for security, surveillance, and AV endpoints
  • Built-in high-quality mic preamp and defeatable 3 dB low-cut filter at 125 Hz for clearer voice reproduction and reduced low-frequency rumble
  • Compact, rack-friendly design with Phoenix connectors for fast installs and cost-effective 24V DC power distribution across Atlas Time Saving Devices
  • Energy Star and RoHS compliant, reducing power consumption and simplifying eco-conscious deployments

Quick Specifications

Product Model
TSD-DA13
Brand Name
AtlasIED
Product Name
TSD-DA13 1 x 3 Distribution Amplifier
Product Type
Audio Distribution Amplifier
View Full Technical Specifications

Explore the details

Product information

TSD-DA13

Overview

Designed to simplify multi-zone audio distribution, the AtlasIED TSD-DA13 1x3 Distribution Amplifier delivers clean, isolated mic and line-level signals to three independent outputs—ideal for security, surveillance, monitoring, and professional AV installations. As an AtlasIED pro amplifier accessory, the TSD-DA13 includes a low-noise mic preamp, defeatable 3 dB low-cut filter at 125 Hz, and balanced inputs to preserve intelligibility across a 20 Hz–20 kHz frequency range. Isolation between outputs prevents crosstalk and removes impedance matching concerns, while per-output level control allows precise tuning for cameras, recorders, paging systems, or distributed speakers. Phoenix-style connectors streamline installation in control rooms, houses of worship, convention centers, restaurants, and industrial sites. The compact 1x3 form factor and efficient 24V DC power compatibility make it easy to integrate with existing Atlas Time Saving Devices and centralized power systems. For dependable audio distribution in security and AV projects, specify the AtlasIED TSD-DA13—contact your AtlasIED dealer or add to your system design today.

Features

  • Deliver isolated, low-noise mic/line audio to three separate destinations, eliminating crosstalk and impedance mismatch for reliable system performance
  • Flexible level control on each output lets integrators match volume and optimize sound for security, surveillance, and AV endpoints
  • Built-in high-quality mic preamp and defeatable 3 dB low-cut filter at 125 Hz for clearer voice reproduction and reduced low-frequency rumble
  • Compact, rack-friendly design with Phoenix connectors for fast installs and cost-effective 24V DC power distribution across Atlas Time Saving Devices
  • Energy Star and RoHS compliant, reducing power consumption and simplifying eco-conscious deployments
18 of 18 specifications
Technical specifications for AtlasIED TSD-DA13 1x3 Distribution Amplifier
General Information
Brand Name AtlasIED
Manufacturer Atlas Sound LP.
Product Name TSD-DA13 1 x 3 Distribution Amplifier
Product Type Audio Distribution Amplifier
Product Model TSD-DA13
Manufacturer Part Number TSD-DA13
Technical Information
Impedance 1.2 kiloohms, 600 ohms
Audio
Maximum Frequency Response 20 kHz
Minimum Frequency Response 20Hz
Certifications
Energy Star Yes
Physical Characteristics
Depth 2.5"
Width 4"
Height 1.5"
Weight 6oz
Power Description
Input Voltage 24V DC
Miscellaneous
Country of Origin US
Environmentally Friendly Yes
Environmental Certification ENERGY STAR, RoHS

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
TSD-DA13
Manufacturer part:
TSD-DA13
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.

Read return eligibility and exclusions

AtlasIED TSD-DA13 1x3 Distribution Amplifier

TSD-DA13

Price & options
