AtlasIED TSD-DA28 X Distribution Amplifier

SKU: TSD-DA28 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound 2 x 8 Distribution Amplifier
Product images for AtlasIED TSD-DA28 X Distribution Amplifier. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver clean, isolated audio to up to eight zones from two independent line-level sources, eliminating crosstalk and preserving intelligibility
  • Maintain signal integrity over long balanced runs with high-gain outputs and isolated channels for consistent monitoring and surveillance audio
  • Flexible installation with removable Phoenix connectors, separate ground connections, and easy 1-in/8-out paralleling to simplify system design

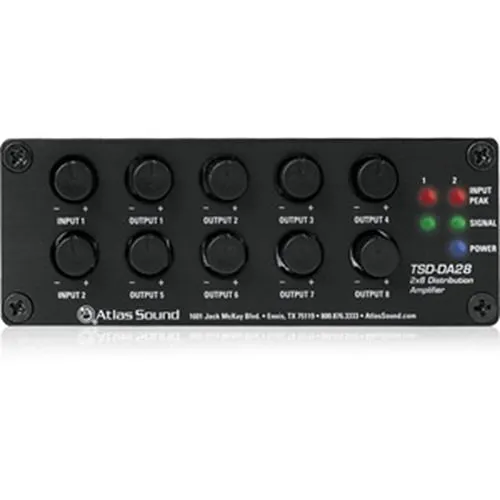

  • Onboard signal and peak LEDs plus security covers for front-panel controls enable quick diagnostics and tamper-resistant operation in commercial environments
  • Energy-efficient design and RoHS compliance with a 36-month limited warranty reduce total cost of ownership for AV, security, and industrial deployments

Quick Specifications

Product Model
TSD-DA28
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
2 x 8 Distribution Amplifier
View Full Technical Specifications

Explore the details

Product information

TSD-DA28

Overview

Optimize multi-zone audio distribution with the AtlasIED TSD-DA28 2x8 Distribution Amplifier. Designed for AV, security and surveillance applications, this pro audio distribution amplifier delivers clean, isolated line-level outputs so each zone receives consistent, low-noise audio without crosstalk or impedance issues. The unit accepts two balanced inputs (easily paralleled for 1-in/8-out) and provides eight isolated, variable balanced outputs—ideal for convention centers, houses of worship, restaurants, sports bars and monitoring rooms.

Installers appreciate the removable Phoenix-style I/O, separate ground terminals, and high-gain outputs for driving long balanced lines. Signal and peak LEDs enable fast on-site diagnostics, while security covers protect front-panel adjustments. The TSD-DA28 runs from a 24V DC supply (sold separately) and supports the standard 20 Hz–20 kHz audio band, making it compatible with both paging and program material in integrated security and monitoring systems.

Specify the AtlasIED TSD-DA28 when you need reliable, tamper-resistant audio distribution that simplifies system design and improves intelligibility. Contact your AtlasIED distributor or add to cart for project quoting and deployment.

Features

  • Deliver clean, isolated audio to up to eight zones from two independent line-level sources, eliminating crosstalk and preserving intelligibility
  • Maintain signal integrity over long balanced runs with high-gain outputs and isolated channels for consistent monitoring and surveillance audio
  • Flexible installation with removable Phoenix connectors, separate ground connections, and easy 1-in/8-out paralleling to simplify system design
  • Onboard signal and peak LEDs plus security covers for front-panel controls enable quick diagnostics and tamper-resistant operation in commercial environments
  • Energy-efficient design and RoHS compliance with a 36-month limited warranty reduce total cost of ownership for AV, security, and industrial deployments
21 of 21 specifications
Technical specifications for AtlasIED TSD-DA28 X Distribution Amplifier
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name 2 x 8 Distribution Amplifier
Product Type Audio Distribution Amplifier
Product Model TSD-DA28
Product Series TSD
Manufacturer Part Number TSD-DA28
Technical Information
Material Aluminum
Certifications
TAA Compliant No
NDAA Compliant Yes
Physical Characteristics
Depth 2.5"
Width 4"
Height 1.5"
Weight 6oz
Power Description
Input Voltage 24V DC
Maximum Frequency 20 kHz
Minimum Frequency 20Hz
Warranty
Limited Warranty 36-Month
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
