AtlasIED TSD-PA10VG Amplifier 10 RMS 1 Channel Black

SKU: TSD-PA10VG AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of AT-TSDPA10VG

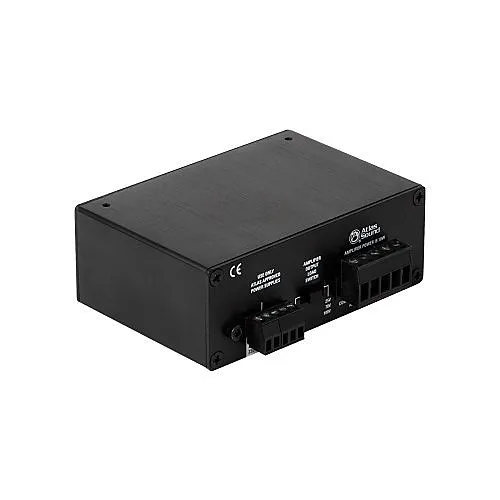

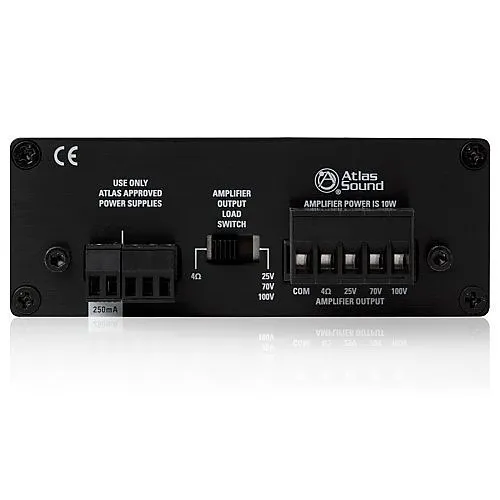

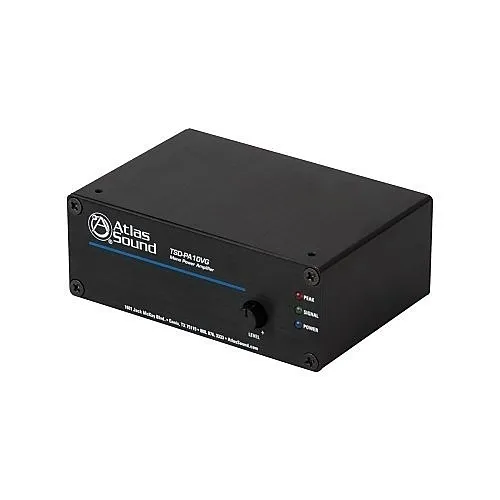

Product images for AtlasIED TSD-PA10VG Amplifier 10 RMS 1 Channel Black. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Space-saving 1-channel design delivers clear 10W output for paging, monitoring and sound masking without bulky rack equipment
  • Flexible 25/70.7/100V or 4Ω connections let you serve distributed speaker arrays for foyers, restrooms or small worship spaces
  • Front-panel gain with removable tamper-resistant cover simplifies secure, vandal-resistant installations in public or supervised environments
  • Low power draw and Energy Star rating reduce operating costs for continuous monitoring and security paging systems
  • Compact, easy-mount chassis installs near projectors, CCTV controllers, or inside cabinetry for discreet integration with surveillance and security systems

Quick Specifications

Product Model
TSD-PA10VG
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
TSD-PA10VG 10W Mono 25V/70.7V/100V Power Amplifier
View Full Technical Specifications

Explore the details

Product information

TSD-PA10VG

Overview

Built for compact paging, monitoring and security audio, the AtlasIED TSD-PA10VG is a reliable 10W pro amplifier designed to integrate seamlessly with surveillance and access control installations. This mono amplifier supports 25/70.7/100V constant-voltage lines and 4Ω loads, so a single unit can power multiple ceiling speakers for foyer announcements, restrooms, cry rooms, or small projector audio. With a 10W RMS output, 40Hz–20kHz frequency response and low 1% THD, the TSD-PA10VG produces intelligible speech and background music for paging and sound masking applications. Installers appreciate the tiny 4” x 3” footprint and 24V DC operation for flexible mounting near CCTV racks or control panels. The front-panel gain control includes a removable knob and tamper-resistant cover to prevent unauthorized adjustment in public or security-sensitive areas. Energy Star efficiency and RoHS compliance help lower total cost of ownership. For integrators specifying audio for security, surveillance and monitoring projects, the AtlasIED TSD-PA10VG is an economical, easy-to-install choice—order today or contact our sales team to match this amplifier to your speaker layout.

Features

  • Space-saving 1-channel design delivers clear 10W output for paging, monitoring and sound masking without bulky rack equipment
  • Flexible 25/70.7/100V or 4Ω connections let you serve distributed speaker arrays for foyers, restrooms or small worship spaces
  • Front-panel gain with removable tamper-resistant cover simplifies secure, vandal-resistant installations in public or supervised environments
  • Low power draw and Energy Star rating reduce operating costs for continuous monitoring and security paging systems
  • Compact, easy-mount chassis installs near projectors, CCTV controllers, or inside cabinetry for discreet integration with surveillance and security systems
25 of 25 specifications
Technical specifications for AtlasIED TSD-PA10VG Amplifier 10 RMS 1 Channel Black
General Information
Brand Name AtlasIED
Manufacturer Atlas Sound LP.
Product Line Amps/Attenuator
Product Name TSD-PA10VG 10W Mono 25V/70.7V/100V Power Amplifier
Product Type Amplifier
Product Model TSD-PA10VG
Product Series TSD
Manufacturer Part Number TSD-PA10VG
Technical Information
Impedance 4 ohms
Audio Channels 1
Audio
RMS Output Power 10W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 40Hz
Total Harmonic Distortion (THD) 1%
Certifications
Energy Star Yes
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 14W
Physical Characteristics
Color Black
Depth 3"
Width 4"
Power Description
Input Voltage 24V DC
Miscellaneous
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification RoHS
