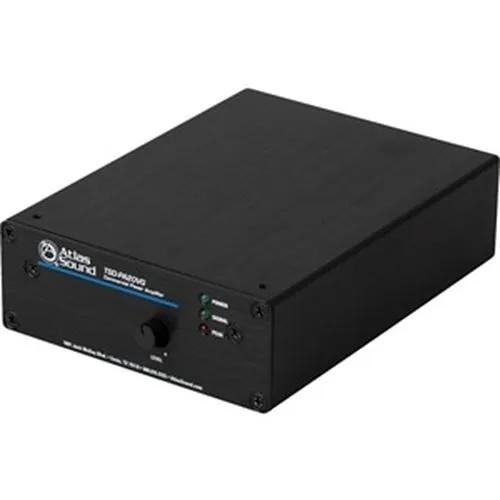

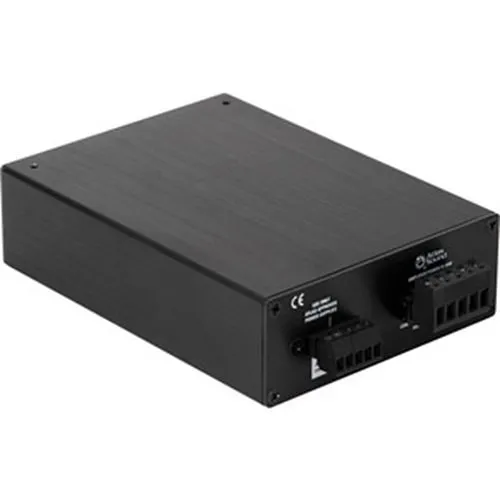

AtlasIED TSD-PA20VG 20W Mono 4O 25V, 70.7V, 100V Power Amplifier

SKU: TSD-PA20VG AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound TSD-PA20VG Amplifier - 20 W RMS - 1 Channel - Black
Product images for AtlasIED TSD-PA20VG 20W Mono 4O 25V, 70.7V, 100V Power Amplifier. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Compact, low-profile design fits in tight spaces for easy mounting in classrooms, hallways, and equipment racks
  • Drives distributed audio systems with 4Ω/25V/70.7V/100V outputs so you can deploy paging, sound masking or background music with confidence
  • Supports up to 16 ceiling speakers at 1W (or 34 masking speakers at 0.5W) to simplify installations and reduce system cost
  • Removable level control with security cover provides set‑and‑forget volume control for secure zones and tamper resistance

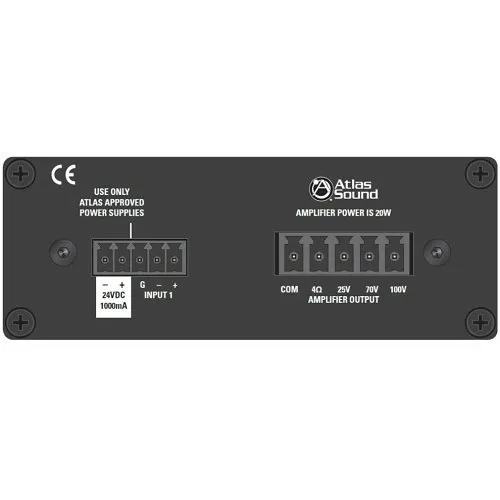

  • Balanced input, removable Phoenix I/O and cable management speed up wiring and streamline integration with security and monitoring systems
  • Energy-efficient operation with 24V DC power input lets you power multiple TSD units from a single supply for scalable deployments

Quick Specifications

Product Model
TSD-PA20VG
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
TSD-PA20VG Mono Power Amplifier
View Full Technical Specifications

Explore the details

Product information

TSD-PA20VG

Overview

Optimize distributed audio for paging, sound masking and surveillance monitoring with the AtlasIED TSD-PA20VG 20W mono power amplifier. This compact AtlasIED pro amplifier delivers 20W RMS and selectable 4Ω/25V/70.7V/100V outputs, making it ideal for small classrooms, hallways, retail areas and security paging systems. The TSD-PA20VG’s tiny footprint and energy-efficient design simplify installation in constrained spaces and allow multiple units to be powered from a single 24V DC supply (power supply sold separately; use TSD24V2500MA and the TSD Power Calculator for multi-unit setups).

Installers benefit from a balanced input, removable Phoenix-style connectors and a removable front-level control with a security cover for set-and-forget operation. Signal and peak LEDs provide instant visual monitoring for troubleshooting in AV, security and surveillance environments. Backed by a 3-year limited warranty, the TSD-PA20VG is a reliable, cost-effective choice for distributed audio and monitoring applications. Add this amplifier to your next paging, sound masking or CCTV audio project — contact sales or order today.

Features

  • Compact, low-profile design fits in tight spaces for easy mounting in classrooms, hallways, and equipment racks
  • Drives distributed audio systems with 4Ω/25V/70.7V/100V outputs so you can deploy paging, sound masking or background music with confidence
  • Supports up to 16 ceiling speakers at 1W (or 34 masking speakers at 0.5W) to simplify installations and reduce system cost
  • Removable level control with security cover provides set‑and‑forget volume control for secure zones and tamper resistance
  • Balanced input, removable Phoenix I/O and cable management speed up wiring and streamline integration with security and monitoring systems
  • Energy-efficient operation with 24V DC power input lets you power multiple TSD units from a single supply for scalable deployments
27 of 27 specifications
Technical specifications for AtlasIED TSD-PA20VG 20W Mono 4O 25V, 70.7V, 100V Power Amplifier
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name TSD-PA20VG Mono Power Amplifier
Product Type Amplifier
Product Model TSD-PA20VG
Product Series TSD
Manufacturer Part Number TSD-PA20VG
Technical Information
Impedance 4 ohms
Audio Channels 1
Audio
RMS Output Power 20W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 40Hz
Total Harmonic Distortion (THD) 15%
Certifications
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 11.70W
Physical Characteristics
Color Black
Depth 5.2"
Width 4"
Height 1.5"
Weight 5.82oz
Power Description
Input Voltage 24V DC
Warranty
Limited Warranty 3-Year
Miscellaneous
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification RoHS
