AtlasIED TSD-ZDC 4x4 Universal Impedance Divider Combiner, 150ohms I/O Connectors

SKU: TSD-ZDC AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of AT-TSDZDC

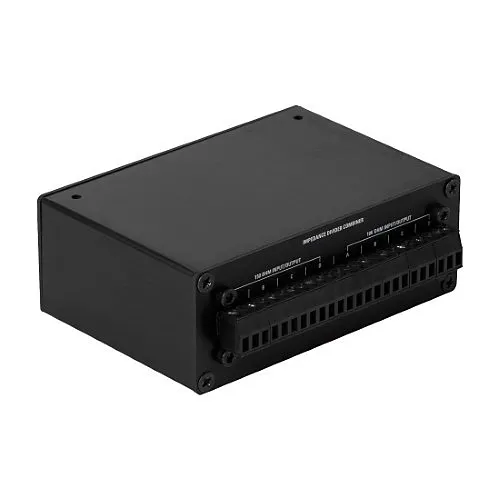

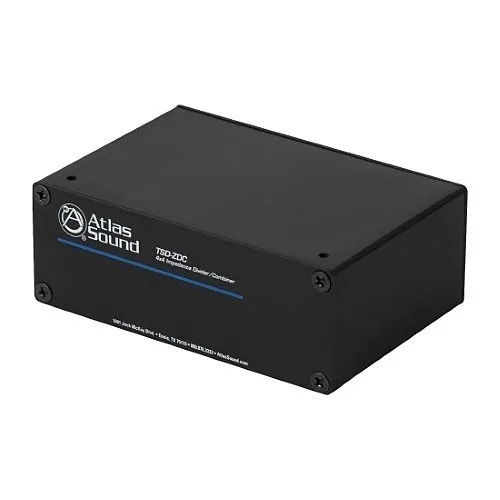

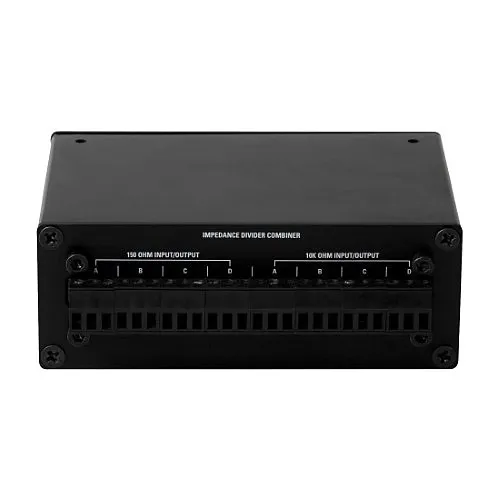

Product images for AtlasIED TSD-ZDC 4x4 Universal Impedance Divider Combiner, 150ohms I/O Connectors. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Simplifies complex signal routing so integrators can split or combine audio reliably in AV, security, and surveillance systems
  • Passive 4x4 design with 150Ω and 10K stereo I/O offers flexible connectivity without needing external power, reducing points of failure
  • RF filtering and individual input grounds minimize interference for cleaner monitoring and recording audio in security and pro-audio installations
  • Removable I/O connectors and compact 4" x 2.5" footprint speed installation and maintenance in racks, control rooms, or distributed network closets
  • Broad application support (churches, schools, medical, government) helps installers standardize systems across facilities and projects

Quick Specifications

Product Model
TSD-ZDC
Brand Name
AtlasIED
Product Line
Amps/Attenuator
Product Name
4 x 4 Impedance Divider / Combiner
View Full Technical Specifications

Explore the details

Product information

TSD-ZDC

Overview

Streamline audio distribution and signal management with the AtlasIED TSD-ZDC 4x4 universal impedance divider/combiner. Designed for professional integrators, this AtlasIED pro audio processor makes it easy to split or combine up to four channels while maintaining signal integrity for security, surveillance, monitoring, and AV systems. The passive unit features four 150Ω stereo I/O connectors plus four 10K stereo I/O connectors to accommodate a wide range of line-level sources and loads, and RF filtering on every input reduces interference for cleaner recordings and realtime monitoring. Because the TSD-ZDC requires no external power and includes removable I/O connectors, it installs quickly and stays reliable in control rooms, broadcast racks, or distributed network closets. Compact and lightweight, it’s ideal for government, medical, education, and house-of-worship projects where consistent audio performance and low maintenance are essential. Choose the TSD-ZDC to simplify wiring, improve audio clarity, and standardize deployments across multiple locations — add it to your next security or AV system spec.

Features

  • Simplifies complex signal routing so integrators can split or combine audio reliably in AV, security, and surveillance systems
  • Passive 4x4 design with 150Ω and 10K stereo I/O offers flexible connectivity without needing external power, reducing points of failure
  • RF filtering and individual input grounds minimize interference for cleaner monitoring and recording audio in security and pro-audio installations
  • Removable I/O connectors and compact 4" x 2.5" footprint speed installation and maintenance in racks, control rooms, or distributed network closets
  • Broad application support (churches, schools, medical, government) helps installers standardize systems across facilities and projects
18 of 18 specifications
Technical specifications for AtlasIED TSD-ZDC 4x4 Universal Impedance Divider Combiner, 150ohms I/O Connectors
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Amps/Attenuator
Product Name 4 x 4 Impedance Divider / Combiner
Product Type Impedance Divider / Combiner
Product Model TSD-ZDC
Product Series TSD
Manufacturer Part Number TSD-ZDC
Technical Information
Application/Usage Government buildings, Medical Facilities, Office Environments, Churches, Restaurants, Schools, Industrial Facilities, House of Worship
Number of Channels 4
Certifications
TAA Compliant No
NDAA Compliant Yes
Physical Characteristics
Depth 2.5"
Width 4"
Height 1.5"
Weight 6oz
Warranty
Limited Warranty 36-Month
Miscellaneous
Country of Origin CN
