Dynacord U120:1-US Power Amplifier 120W, 1-Channel

SKU: U1201-US MPN: U120:1-US Dynacord
Image of UV-U1201US
Product images for Dynacord U120:1-US Power Amplifier 120W, 1-Channel. 7 image(s) available. Click on image to view full size.

Key Features

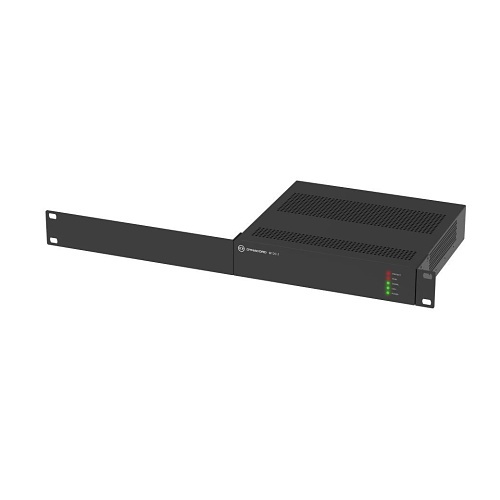

  • Space-saving 1/2 rack footprint for flexible mounting in tight equipment racks or under counters
  • 120W of reliable output that delivers clear background music, paging and voice announcements
  • Supports 4 Ω / 8 Ω and 70V/100V outputs for simple integration with distributed speaker and paging systems
  • EMG override and contact override with 2-tone chime to guarantee priority messages are heard during emergencies
  • Remote standby control and low idle power to reduce energy costs and simplify system power management

Quick Specifications

Brand Name
Dynacord
Product Name
U120:1 Power Amplifier 120W, 1 channel
Product Type
Power Amplifier
Product Series
U
View Full Technical Specifications

Product Information Tabs

Overview

The Dynacord U120:1 power amplifier brings dependable, high-quality audio to small and medium commercial installs where space, clarity and reliability matter. Engineered for background music, paging and public address in bars, retail, transport hubs and houses of worship, the U120:1 supplies 120W RMS while supporting 4 Ω/8 Ω loads and 70V/100V distributed speaker systems — so integrators can deploy a single amp across varied speaker topologies. Its compact half-rack design simplifies installation in constrained racks, under counters or side-by-side to double channel count without wasting space. Built-in EMG override and contact-activated priority with a 2-tone chime ensures emergency announcements penetrate ambient noise, making the unit suitable for security, monitoring and surveillance-related PA integration. With low operating consumption and remote standby control, the amplifier lowers operating costs while remaining ready for critical alerts. Choose the Dynacord U120:1 when you need a compact, versatile pro amplifier that blends professional sound, ease of integration and emergency-ready features—ideal for commercial audio, paging and security-enhanced environments. Contact your vendor or add to cart to specify it for your next installation.

Features

  • Space-saving 1/2 rack footprint for flexible mounting in tight equipment racks or under counters
  • 120W of reliable output that delivers clear background music, paging and voice announcements
  • Supports 4 Ω / 8 Ω and 70V/100V outputs for simple integration with distributed speaker and paging systems
  • EMG override and contact override with 2-tone chime to guarantee priority messages are heard during emergencies
  • Remote standby control and low idle power to reduce energy costs and simplify system power management
General Information
Brand Name Dynacord
Product Name U120:1 Power Amplifier 120W, 1 channel
Product Type Power Amplifier
Product Series U
Manufacturer Part Number U120:1-US
Technical Information
Impedance 4 ohms, 8 ohms
Audio
RMS Output Power 120W
Maximum Frequency Response 22 kHz
Minimum Frequency Response 10Hz
Energy & Performance
Operating Power Consumption 11W
Physical Characteristics
Color Black
Depth 8.57"
Width 8.6"
Height 1.74"
Weight 4.10lb
Power Description
Input Voltage 100-240V AC
