Ubiquiti US-8-60W 8-Port Managed Switch PoE+, 60W

SKU: US-8-60W Ubiquiti

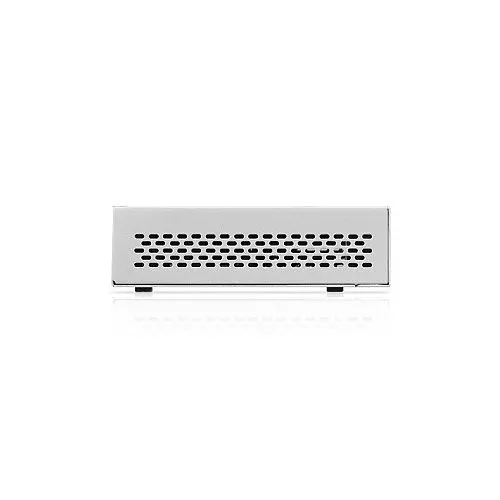

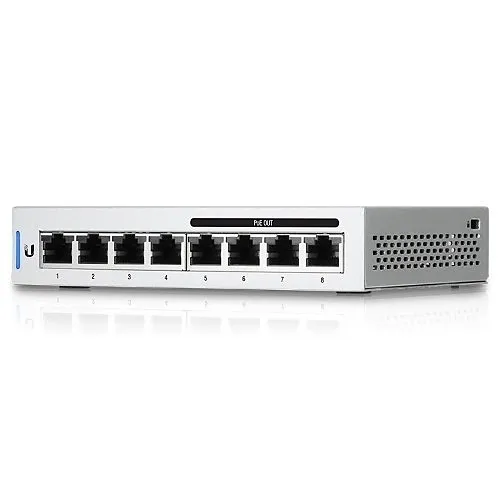

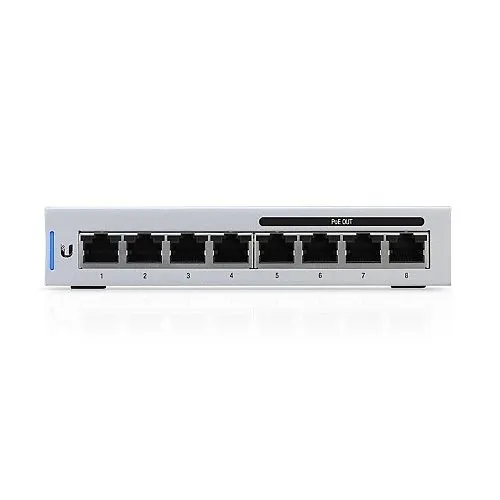

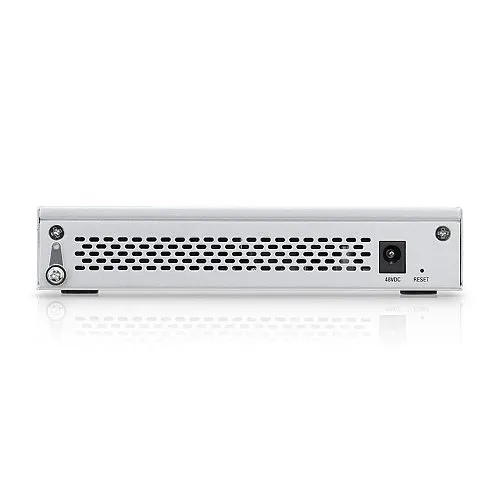

Image of KX-US860W
Product images for Ubiquiti US-8-60W 8-Port Managed Switch PoE+, 60W. 5 image(s) available. Click on image to view full size.

Key Features

  • Silent, fanless design ensures reliable, unobtrusive operation in offices, retail or surveillance rooms
  • 8 Gigabit ports with a 60W PoE+ budget to power IP cameras, access points and monitoring devices without extra injectors
  • Managed UniFi integration for centralized configuration, monitoring and multi-site management
  • Non-blocking throughput and 16 Gbps switching capacity maintain smooth video and data performance under load
  • Compact steel chassis with SFP expansion option for flexible uplinks and secure deployments

Quick Specifications

Product Model
US-8-60W
Brand Name
Ubiquiti
Product Line
UniFi
Product Name
Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch
View Full Technical Specifications

Explore the details

Product information

US-8-60W

Overview

Deliver consistent, professional network performance for small offices and security deployments with the Ubiquiti US-8-60W 8-Port Managed Switch PoE+. This UniFi network switch is engineered to power and connect IP cameras, access points and monitoring equipment with an efficient 60W total PoE budget and up to 15.4W per PoE port—eliminating the need for separate power injectors. With eight Gigabit Ethernet ports and a 16 Gbps switching capacity (8 Gbps non-blocking throughput), the US-8-60W keeps surveillance video, VoIP and data streams moving smoothly even during peak demand. The fanless, compact steel design delivers quiet, reliable operation ideal for retail, small enterprise or security-room installations. Managed through Ubiquiti’s UniFi Controller, administrators gain centralized visibility and control—simplifying VLANs, spanning tree and device monitoring across multiple sites. Whether you’re expanding an IP surveillance system or upgrading office connectivity, this PoE+ managed switch provides a cost-effective, secure foundation. Add the US-8-60W to your network to streamline deployment and power critical security and monitoring devices today.

Features

  • Silent, fanless design ensures reliable, unobtrusive operation in offices, retail or surveillance rooms
  • 8 Gigabit ports with a 60W PoE+ budget to power IP cameras, access points and monitoring devices without extra injectors
  • Managed UniFi integration for centralized configuration, monitoring and multi-site management
  • Non-blocking throughput and 16 Gbps switching capacity maintain smooth video and data performance under load
  • Compact steel chassis with SFP expansion option for flexible uplinks and secure deployments
32 of 32 specifications
Technical specifications for Ubiquiti US-8-60W 8-Port Managed Switch PoE+, 60W
General Information
Brand Name Ubiquiti
Manufacturer Ubiquiti Inc.
Product Line UniFi
Product Name Ubiquiti Networks US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch
Product Type Network Switch
Product Model US-8-60W
Product Series US
Manufacturer Part Number US-8-60W
Technical Information
PoE Yes
Material SGCC Steel
Power Consumption 12W
Network Switch Type Managed, PoE
Media Type Supported Twisted Pair
I/O Expansions
Expansion Slot Type SFP
Interfaces/Ports
Modular No
Uplink Port No
Network (RJ-45) Yes
Total Number of Network Ports 8
Management & Protocols
Manageable Yes
Media & Performance
Network Technology 10/100/1000Base-T
Network & Communication
Layer Supported 2
Ethernet Technology 10 Gigabit Ethernet
Physical Characteristics
Depth 3.9"
Width 5.8"
Height 1.2"
Weight 15.2oz
Power Description
Frequency 50 Hz, 60 Hz
Power Source DC
Input Voltage 100-240V AC
Warranty
Limited Warranty 1-Year
Miscellaneous
Features 16 Gbps Switching Capacity, 4 x Auto-Sensing 802.3af PoE Ports, 8 Gbps Non-Block Throughput, Fanless, silent cooling
Country of Origin CN
