Ubiquiti USW-MISSION-CRITICAL-US Switch with Iintegrated 368Wh Lithium-Ion Battery, Mission Critical

SKU: USW-MISSION-CRITICAL-US Ubiquiti

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

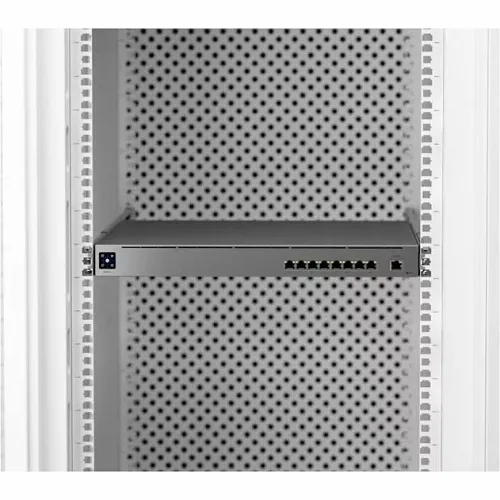

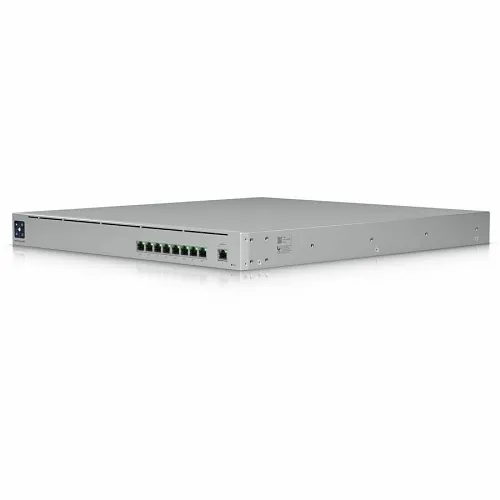

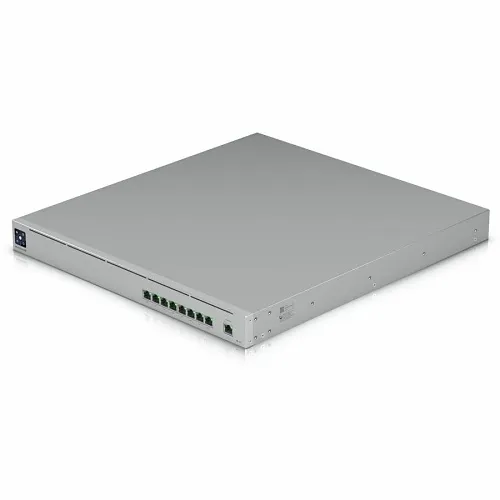

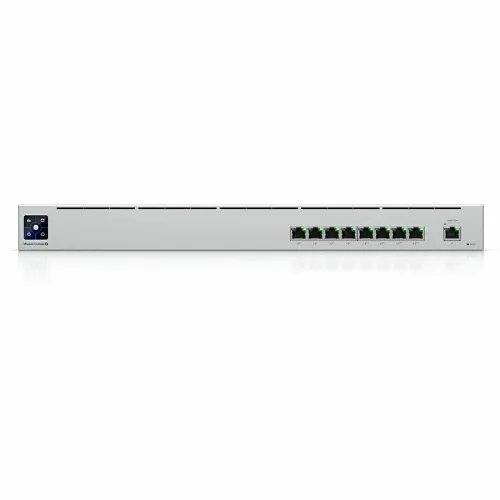

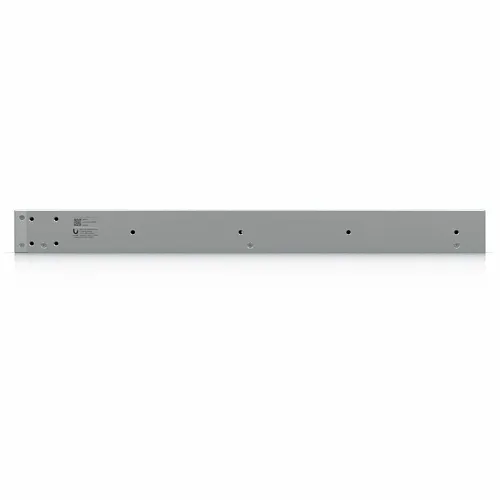

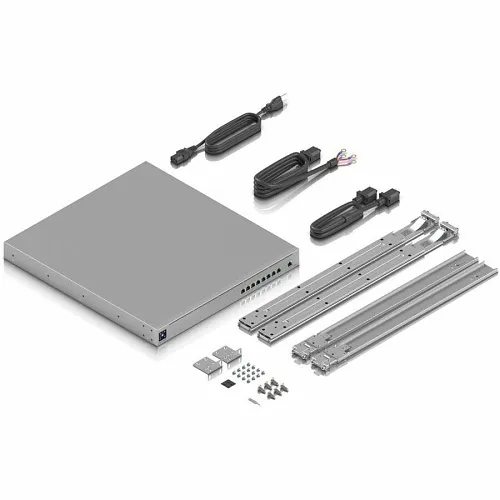

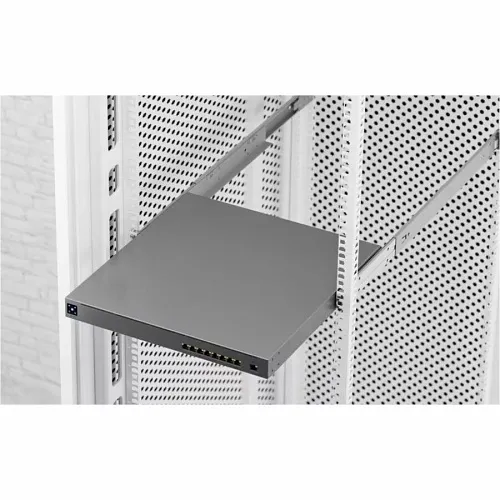

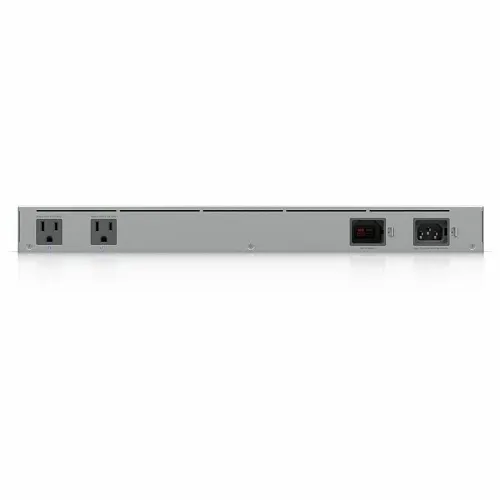

Image of KX-MSCRTICAL
Product images for Ubiquiti USW-MISSION-CRITICAL-US Switch with Iintegrated 368Wh Lithium-Ion Battery, Mission Critical. 10 image(s) available. Click on image to view full size.

Key Features

  • Provides mission‑critical uptime with an integrated 368Wh lithium‑ion battery to keep security and monitoring devices online during power interruptions
  • Powers up to 8 PoE devices from a single, rack‑mountable switch with a 120W PoE budget for cameras, access control and wireless APs
  • Simplifies deployments with 9 gigabit RJ‑45 ports and Layer 2 features (IGMP snooping, port mirroring, spanning tree) for stable surveillance networks
  • Built‑in AC/DC power support and robust SGCC steel chassis reduce single‑points‑of‑failure and installation complexity for critical sites
  • Centralized UniFi management lets IT teams configure, monitor and troubleshoot networking and security equipment from one pane of glass

Quick Specifications

Product Model
USW-MISSION-CRITICAL-US
Brand Name
Ubiquiti
Product Line
UniFi
Product Name
Ubiquiti UniFi 4xGbE PoE+ 4xGbE PoE++ Network Switch
View Full Technical Specifications

Explore the details

Product information

USW-MISSION-CRITICAL-US

Overview

Keep surveillance, access control and critical monitoring systems online with the Ubiquiti USW‑MISSION‑CRITICAL‑US network switch. Designed for mission‑critical environments, this UniFi switch combines managed Layer 2 switching with an integrated 368Wh lithium‑ion battery to provide uninterrupted power for up to 8 PoE devices—eliminating the need for a separate UPS and reducing rackspace and wiring complexity. With nine gigabit RJ‑45 ports and a 120W PoE budget, it easily supports IP cameras, PoE++ devices and wireless APs while delivering reliable 1000Base‑T performance. The rack‑mountable SGCC steel chassis, AC/DC input flexibility, and advanced features like IGMP snooping and port mirroring ensure resilient, low‑latency operation for security, surveillance and monitoring applications. Managed through the UniFi controller, the switch gives IT teams centralized visibility and simple configuration for faster incident response and uptime assurance. Ideal for security integrators and enterprise networks that demand continuous operation, the USW‑MISSION‑CRITICAL‑US protects critical infrastructure—order now to safeguard your surveillance and monitoring deployments.

Features

  • Provides mission‑critical uptime with an integrated 368Wh lithium‑ion battery to keep security and monitoring devices online during power interruptions
  • Powers up to 8 PoE devices from a single, rack‑mountable switch with a 120W PoE budget for cameras, access control and wireless APs
  • Simplifies deployments with 9 gigabit RJ‑45 ports and Layer 2 features (IGMP snooping, port mirroring, spanning tree) for stable surveillance networks
  • Built‑in AC/DC power support and robust SGCC steel chassis reduce single‑points‑of‑failure and installation complexity for critical sites
  • Centralized UniFi management lets IT teams configure, monitor and troubleshoot networking and security equipment from one pane of glass
28 of 28 specifications
Technical specifications for Ubiquiti USW-MISSION-CRITICAL-US Switch with Iintegrated 368Wh Lithium-Ion Battery, Mission Critical
General Information
Brand Name Ubiquiti
Manufacturer Ubiquiti Inc.
Product Line UniFi
Product Name Ubiquiti UniFi 4xGbE PoE+ 4xGbE PoE++ Network Switch
Product Type Network Switch
Product Model USW-MISSION-CRITICAL-US
Product Series USW
Manufacturer Part Number USW-MISSION-CRITICAL-US
Technical Information
PoE Yes
Power Consumption 50.0000W
Media Type Supported Twisted Pair
Interfaces/Ports
Network (RJ-45) Yes
Total Number of Network Ports 9
Management & Protocols
Manageable Yes
Media & Performance
Network Technology 1000Base-T
Network & Communication
Layer Supported 2
Ethernet Technology 10 Gigabit Ethernet
Physical Characteristics
Depth 18.90"
Width 17.40"
Height 1.70"
Weight 19.84lb
Material SGCC Steel
Power Description
Frequency 60Hz
PoE Budget 120W
Power Source AC Power, DC Power
Input Voltage 100-240V AC
PoE (RJ-45) Port Yes
Product Information
Mount Type Rack Mount
