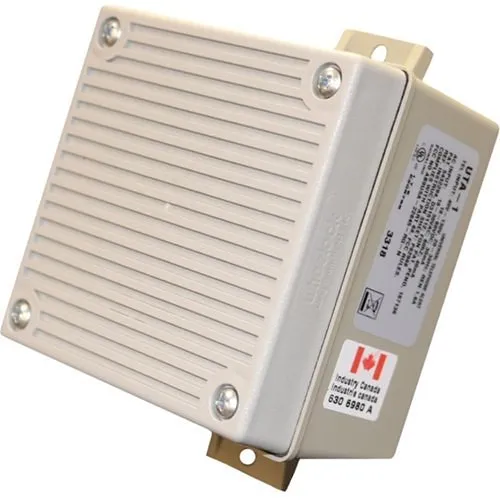

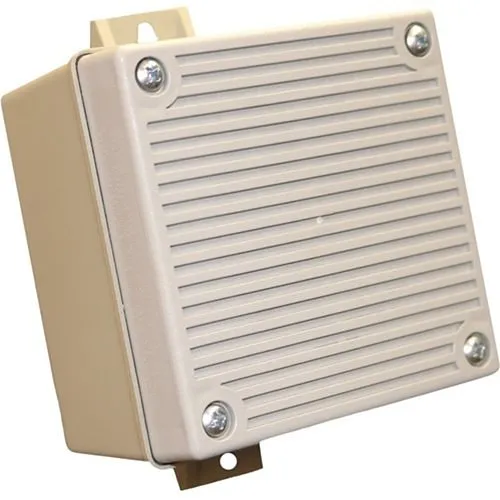

Eaton UTA-1 Universal Telephone ALERTs (UTA), 24/48VDC, 24VAC, 90VRMS, 20Hz

Designed for clear, dependable audible notification in commercial and security environments, the Eaton UTA-1 Universal Telephone ALERT ringer is ideal for intercom master stations, telephone-triggered alarms and monitoring systems. The UTA-1 delivers a high-output 109 dB piezo tone and offers selectable operation across multiple voltages (24/48 VDC, 24 VAC and 90 VRMS/20–30 Hz), making it easy for integrators to add robust alerts without extensive power changes. Four selectable sound patterns — horn, bell, vibrating chime and single chime — enable event-specific notification strategies that improve response times and reduce false alarms. With low current draw and low REN, the UTA-1 is telephone-line friendly and compatible with a wide range of security, surveillance and monitoring platforms. The tamper-resistant volume control and weather-resistant backbox support reliable outdoor or public-area installations while meeting UL, FCC and CSA approvals plus ADA requirements. For reliable, multi-voltage audible notification in your intercom or security deployment, specify the Eaton UTA-1 — contact us to request a quote or technical support for your project.

• Powerful 109 dB piezo output ensures audible alerts in noisy facilities and across large coverage areas
• Multi-voltage compatibility (24/48 VDC, 24 VAC, 90 VRMS) simplifies integration with existing intercom, telephone and security systems
• Four selectable sound patterns (horn, bell, vibrating chime, single chime) let integrators tailor alerts for different events and zones
• Low current draw and reduced REN protect telephone lines and minimize impact on monitoring equipment
• Weather-resistant backbox and tamper-resistant volume control provide durable, secure performance for indoor or conduit-enclosed outdoor installations
• Industry approvals and ADA compliance streamline code approval and deployment in commercial security and surveillance projects
