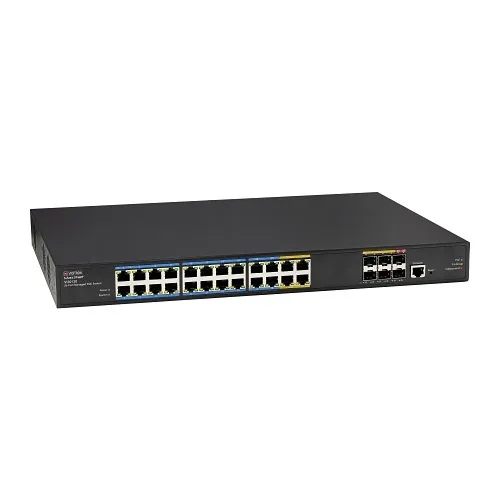

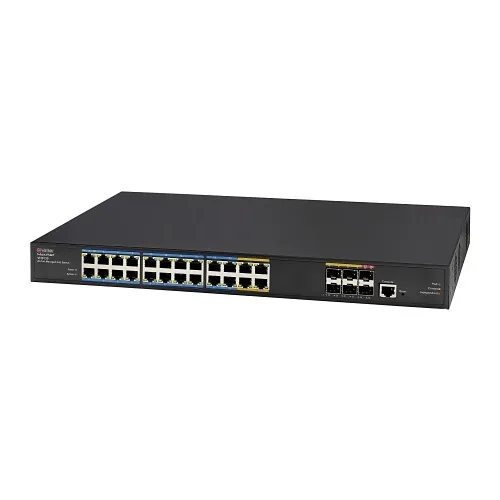

Vigitron Vi30130 MaxiiNet 30-Port 1G L2+/L3 Managed 90W IEEE 802.3bt PoE Switch
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Powers high-draw devices (up to 90W per port) so high-resolution IP cameras and analytics servers run reliably without separate power supplies
- Large 770W PoE budget and programmable PoE on 24 ports to simplify multi-camera and monitoring deployments
- L2+/L3 managed features and 520 Gbit/s switch fabric deliver predictable performance and advanced traffic control for security networks
- Flexible uplink options (copper, combo ports and fiber) support long-distance runs and easy integration into existing infrastructure
- Built-in 6kV surge protection and redundant DC backup input enhance uptime and protect critical surveillance equipment
Quick Specifications
- Product Model
- VI30130
- Brand Name
- Vigitron
- Product Line
- MaxiiNet
- Product Type
- Ethernet Switch
Explore the details
Product information
VI30130
Overview
Designed for demanding security and surveillance environments, the Vigitron Vi30130 MaxiiNet 30-Port 1G L2+/L3 Managed 90W IEEE 802.3bt PoE Switch puts reliable power and intelligent network control where you need it most. This Vigitron managed switch supplies up to 90W per port (IEEE 802.3bt) with a 770W PoE budget, enabling high-power PTZ cameras, multi-sensor units and edge analytics to operate from a single consolidated cabinet. The L2+/L3 feature set and 520 Gbit/s switch fabric ensure low-latency video transport and advanced traffic management for large surveillance and monitoring systems. Flexible port options — including 1G copper, combo ports and fiber uplinks — make it easy to connect long runs and integrate with enterprise networks. Operational conveniences like programmable PoE, TimeZone system synchronization for consistent syslog/SNMP timestamps, plus built-in 6kV surge protection and redundant power inputs, reduce onsite maintenance and service interruptions. Ideal for installers and security integrators deploying IP cameras, access control and monitoring solutions, the Vi30130 simplifies power, performance and protection. Contact sales to configure this switch for your next security deployment.
Features
- Powers high-draw devices (up to 90W per port) so high-resolution IP cameras and analytics servers run reliably without separate power supplies
- Large 770W PoE budget and programmable PoE on 24 ports to simplify multi-camera and monitoring deployments
- L2+/L3 managed features and 520 Gbit/s switch fabric deliver predictable performance and advanced traffic control for security networks
- Flexible uplink options (copper, combo ports and fiber) support long-distance runs and easy integration into existing infrastructure
- Built-in 6kV surge protection and redundant DC backup input enhance uptime and protect critical surveillance equipment
| General Information | |
|---|---|
| Brand Name | Vigitron |
| Product Line | MaxiiNet |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | VI30130 |
| Technical Information | |
| Power Consumption | 90.0000W |
| Network Switch Type | L2, Managed, PoE |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Networking Standards | IEEE 802.2af, IEEE 802.2at, IEEE 802.2bt |
| Physical Characteristics | |
| Material | Sheet Metal |
| Power Description | |
| Power Source | AC Power |
| Input Voltage | 120-240V AC |
| Product Information | |
| Length | 11.40" |
| Miscellaneous | |
| Features | 20 x 1G Copper, 4 x 1G Combo ports and 2 x 1G independent Fiber uplink ports, 52.0 switch fabric for cameras, 770W PoE budget, Built-in 6KV port surge protection, Detail Syslog with Health status messaging, G.8032 V1/V2 Rapid Ring protocol compliant, IEEE 802.3bt class 0-8 PoE up to 90W per port, Jumbo frame programming at all bandwidth settings, Programmable PoE on 24 Ports, Programmable port temperature settings, Redundant 48-57V DC 1000W backup power input, Unique TimeZone reference for setting system synchronization |
| Environmentally Friendly | Yes |
| Environmental Certification | CE, FCC, RoHS, WEEE |
