Vigitron Vi30202U Coax Ethernet Extender with 60W PoE and DC

SKU: VI30202U Vigitron

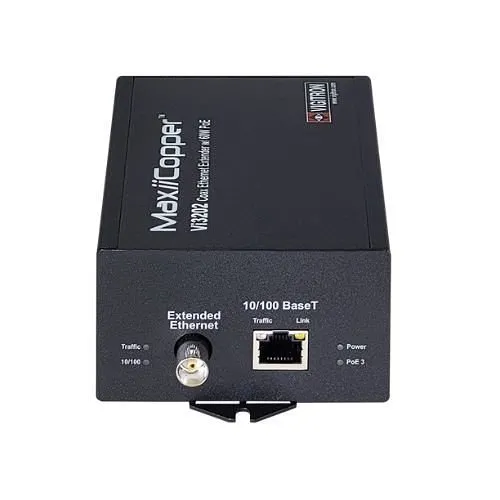

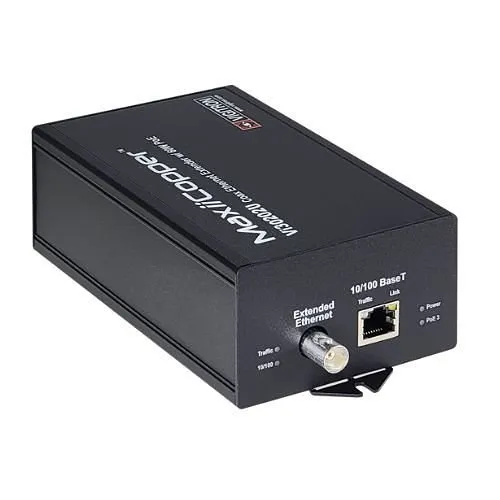

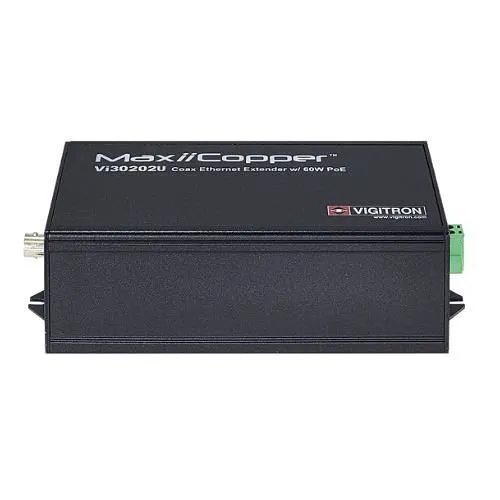

Image of VG-VI30202U
Product images for Vigitron Vi30202U Coax Ethernet Extender with 60W PoE and DC. 4 image(s) available. Click on image to view full size.

Key Features

  • Upgrade existing analog PTZ cameras to IP without re-cabling, saving time and installation cost
  • Deliver up to 60W PoE to cameras using existing 24V AC/DC power for high-power IP devices
  • Extend IP video over existing coax up to 5,000 ft (1,515 m) for long‑range surveillance and monitoring
  • Symmetric Bandwidth (SBW™) and Virtual Zero Packet Loss (VZPL™) ensure reliable, full‑duplex transmission for critical security networks
  • Rugged, compact aluminum housing rated -40°C to +75°C fits most camera mounts and weatherproof enclosures for outdoor use
  • MegaPixel Certified (MPC™) and RFC‑2544 tested for high‑bandwidth, jumbo‑frame IP camera performance and interoperability

Quick Specifications

Product Model
VI30202U
Brand Name
Vigitron
Product Line
MaxiiCopper
Product Name
Coax Ethernet Extender w/60W PoE & DC input
View Full Technical Specifications

Explore the details

Product information

VI30202U

Overview

Replace costly re‑cabling projects and bring reliable IP video to remote cameras with the Vigitron Vi30202U Coax Ethernet Extender. Designed for security and surveillance upgrades, this MaxiiCopper™ transmitter uses your existing coax and 24V AC/DC power to deliver Ethernet and up to 60W PoE to IP PTZ and high‑power cameras, extending data up to 5,000 ft (1,515 m). Its Symmetric Bandwidth (SBW™) and Virtual Zero Packet Loss (VZPL™) technology maintain full bandwidth in both directions, ensuring consistent video quality and low latency for monitoring and recording systems.

Built for real‑world deployments, the Vi30202U is MegaPixel Certified and RFC‑2544 type tested for network packet performance, and its hardened aluminum design operates from -40°C to +75°C for outdoor reliability. The compact form factor fits inside most camera housings and mounts, minimizing labor and enclosure costs. Ideal for IP camera retrofit, perimeter monitoring, and remote site networking—upgrade your surveillance system with Vigitron’s proven coax Ethernet extender. Contact your distributor or order today to start modernizing your security infrastructure.

Features

  • Upgrade existing analog PTZ cameras to IP without re-cabling, saving time and installation cost
  • Deliver up to 60W PoE to cameras using existing 24V AC/DC power for high-power IP devices
  • Extend IP video over existing coax up to 5,000 ft (1,515 m) for long‑range surveillance and monitoring
  • Symmetric Bandwidth (SBW™) and Virtual Zero Packet Loss (VZPL™) ensure reliable, full‑duplex transmission for critical security networks
  • Rugged, compact aluminum housing rated -40°C to +75°C fits most camera mounts and weatherproof enclosures for outdoor use
  • MegaPixel Certified (MPC™) and RFC‑2544 tested for high‑bandwidth, jumbo‑frame IP camera performance and interoperability
20 of 20 specifications
Technical specifications for Vigitron Vi30202U Coax Ethernet Extender with 60W PoE and DC
General Information
Brand Name Vigitron
Manufacturer Vigitron, Inc
Product Line MaxiiCopper
Product Name Coax Ethernet Extender w/60W PoE & DC input
Product Type Network Extender
Country of Origin CN
Packaged Quantity 1
Manufacturer Part Number VI30202U
Technical Information
Maximum Data Transfer Rate 12.5Mbps
Certifications
TAA Compliant No
Interfaces/Ports
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1
Physical Characteristics
Color Black
Width 2.40"
Height 5.60"
Material Aluminum
Power Description
Input Voltage 24V DC
Product Information
Length 1.90"
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS, WEEE
