Vigitron Vi5001 1-Port PoE Fiber Media Converter, 30W

SKU: VI5001 Vigitron
Image of VG-VI5001

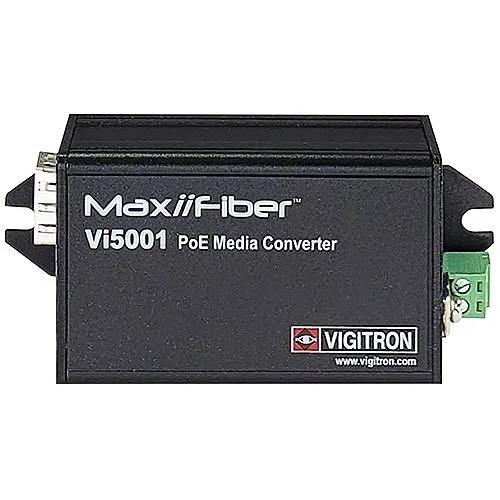

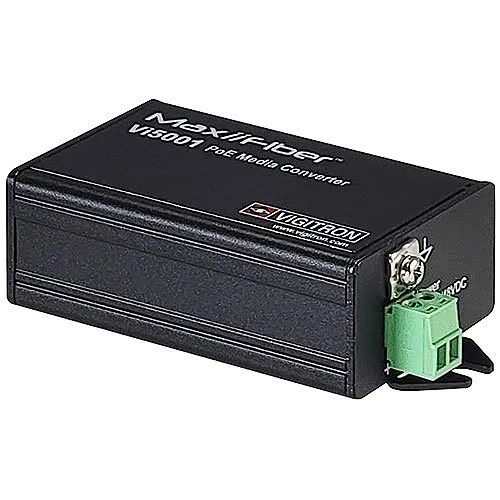

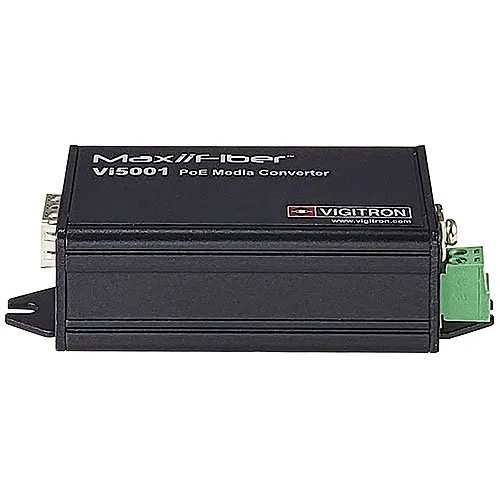

Product images for Vigitron Vi5001 1-Port PoE Fiber Media Converter, 30W. 4 image(s) available. Click on image to view full size.

Key Features

  • Extend Ethernet and PoE to remote cameras over fiber, enabling long-distance surveillance and security coverage
  • Delivers up to 30W IEEE 802.3af/at PoE to power IP cameras and devices without local power sources
  • SFP-based design supports single- and multimode modules for flexible distances up to 80 km, simplifying network upgrades
  • Compact, plug-and-play single-port media converter that connects directly to switches for fast deployments
  • Wide operating temperature (0°C to 70°C) and RoHS/WEEE compliance for reliable performance in varied installations

Quick Specifications

Product Model
Vi5001
Brand Name
Vigitron
Product Line
MaxiiFiber
Product Name
Single Channel Ethernet to Fiber Media Convertor with PoE PSE
View Full Technical Specifications

Explore the details

Product information

VI5001

Overview

Designed for security and surveillance professionals, the Vigitron Vi5001 1-Port PoE Fiber Media Converter converts standard Ethernet to fiber while delivering up to 30W of IEEE 802.3af/at PoE to power remote IP cameras and network devices. As a single-channel media converter in Vigitron’s MaxiiFiber line, it uses SFP modules to support both single- and multimode fiber, enabling flexible link lengths — with compatible SFPs reaching distances up to 80 km — and full 100/1000Base-T connectivity on the copper side.

The Vi5001 reduces installation complexity by enabling you to reuse existing fiber infrastructure or extend networks where copper runs aren’t practical. Its compact, plug-and-play design allows direct connection to network switches and rapid deployment for monitoring and security applications. Built for reliability, it meets environmental standards (RoHS/WEEE) and operates across an extended temperature range for tougher field conditions.

Ideal for IP surveillance, access control, and remote monitoring projects, the Vigitron Vi5001 lets you extend PoE and fiber reach with minimal downtime — add it to your network to power and connect distant devices today.

Features

  • Extend Ethernet and PoE to remote cameras over fiber, enabling long-distance surveillance and security coverage
  • Delivers up to 30W IEEE 802.3af/at PoE to power IP cameras and devices without local power sources
  • SFP-based design supports single- and multimode modules for flexible distances up to 80 km, simplifying network upgrades
  • Compact, plug-and-play single-port media converter that connects directly to switches for fast deployments
  • Wide operating temperature (0°C to 70°C) and RoHS/WEEE compliance for reliable performance in varied installations
25 of 25 specifications
Technical specifications for Vigitron Vi5001 1-Port PoE Fiber Media Converter, 30W
General Information
Brand Name Vigitron
Manufacturer Vigitron, Inc
Product Line MaxiiFiber
Product Name Single Channel Ethernet to Fiber Media Convertor with PoE PSE
Product Type Transceiver/Media Converter
Product Model Vi5001
Packaged Quantity 1
Manufacturer Part Number VI5001
Technical Information
Media Type Supported Optical Fiber, Twisted Pair
Certifications
TAA Compliant No
Interfaces/Ports
Network (RJ-45) Yes
Number of Ports 1
Number of LC Ports 1
Number of PoE (RJ-45) Ports 1
Number of Network (RJ-45) Ports 1
Media & Performance
Network Technology 100/1000Base-T
Network & Communication
Ethernet Technology Fast Ethernet
Physical Characteristics
Depth 2.70"
Width 1.80"
Height 1.00"
Weight 4.48oz
Material Extruded Aluminum
Power Description
Power Source PoE (Power over Ethernet)
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS, WEEE
