3xLOGIC VX-5M-B-RIAW-X VISIX 5MP Outdoor Bullet with Remote Focus, 2.7-13.5mm Lens

SKU: VX-5M-B-RIAW-X 3xLOGIC

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

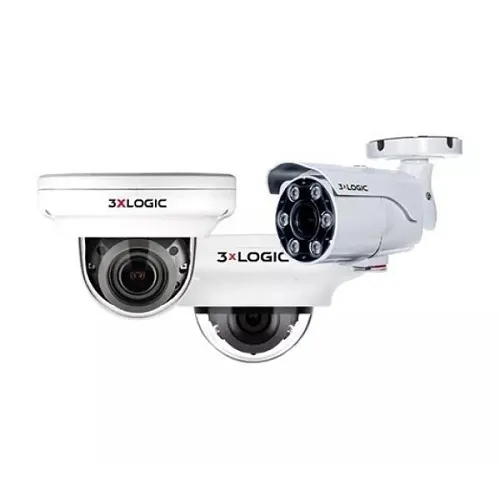

Image of IA-VX5MBRIAX
Product images for 3xLOGIC VX-5M-B-RIAW-X VISIX 5MP Outdoor Bullet with Remote Focus, 2.7-13.5mm Lens. 2 image(s) available. Click on image to view full size.

Key Features

  • Crystal-clear 5MP imaging captures license plates and faces across wide coverage areas for precise security monitoring.
  • Remote motorized 2.7-13.5mm lens simplifies setup and lets you adjust zoom and focus from the control room for flexible coverage.
  • H.265/H.264 compression reduces bandwidth and storage requirements while preserving smooth 30 fps video for reliable surveillance.
  • Rugged IP67 and IK10-rated housing withstands weather and vandalism for dependable outdoor operation.
  • Strong low-light performance with f/1.4 aperture and 0.09 lux sensitivity delivers usable footage after dark.
  • Four-year limited warranty and network camera compatibility provide long-term value and low total cost of ownership.

Quick Specifications

Product Model
VX-5M-B-RIAW-X
Brand Name
3xLOGIC
Product Type
Network Camera
Product Series
VISIX
View Full Technical Specifications

Frequently Bought Together

This Item
3xLOGIC VX-5M-B-RIAW-X VISIX 5MP Outdoor Bullet with Remote Focus, 2.7-13.5mm Lens

3xLOGIC VX-5M-B-RIAW-X VISIX 5MP Outdoor Bullet with Remote Focus, 2.7-13.5mm Lens

$980.74

Frequently Bought Together (3 items)

4 items selected

Total: $2,969.85

Explore the details

Product information

VX-5M-B-RIAW-X

Overview

Built for dependable outdoor security monitoring, the 3xLOGIC VISIX VX-5M-B-RIAW-X is a 5MP network bullet camera that delivers high-resolution imagery and installation flexibility for commercial and critical-infrastructure surveillance. The camera outputs 2592 x 1944 video at up to 30 fps and pairs a remote motorized 2.7-13.5mm lens with a bright f/1.4 aperture to capture fine detail across wide areas and in low-light conditions (0.09 lux). Efficient H.265 and H.264 codecs lower bandwidth and storage costs without sacrificing image quality, making it ideal for continuous monitoring and long-term recording.

Engineered for harsh environments, the VX-5M features IP67 weatherproofing and IK10 impact resistance, ensuring uninterrupted perimeter security in parking lots, building exteriors, and retail sites. The camera runs on 12V DC and integrates easily into existing networked security systems. Backed by a four-year limited warranty, it provides a reliable, low-risk solution for enterprise surveillance. Contact your 3xLOGIC supplier to specify the VX-5M for your next deployment or add it to perimeter and facility monitoring projects.

Features

  • Crystal-clear 5MP imaging captures license plates and faces across wide coverage areas for precise security monitoring.
  • Remote motorized 2.7-13.5mm lens simplifies setup and lets you adjust zoom and focus from the control room for flexible coverage.
  • H.265/H.264 compression reduces bandwidth and storage requirements while preserving smooth 30 fps video for reliable surveillance.
  • Rugged IP67 and IK10-rated housing withstands weather and vandalism for dependable outdoor operation.
  • Strong low-light performance with f/1.4 aperture and 0.09 lux sensitivity delivers usable footage after dark.
  • Four-year limited warranty and network camera compatibility provide long-term value and low total cost of ownership.
29 of 29 specifications
Technical specifications for 3xLOGIC VX-5M-B-RIAW-X VISIX 5MP Outdoor Bullet with Remote Focus, 2.7-13.5mm Lens
General Information
Brand Name 3xLOGIC
Product Type Network Camera
Product Series VISIX
Manufacturer Part Number VX-5M-B-RIAW-X
Technical Information
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.4
Maximum Frame Rate 30 fps
Minimum Focal Length 2.7mm
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Certifications
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 10-90%
Maximum Operating Temperature 50°
Minimum Operating Temperature -20°
Exposure
Minimum Illumination 0.09 lux
Longest Shutter Speed 1/15 Second
Shortest Shutter Speed 1/32000 Second
Lens
Focal Length 2.7-13.5mm
Maximum Focal Length 13.5mm
Physical Characteristics
Weight 2.64lb
Form Factor Bullet
Power Description
Input Voltage 12V DC
Warranty
Limited Warranty 4 Year
Miscellaneous
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification FCC, UL

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
VX-5M-B-RIAW-X
Manufacturer part:
VX-5M-B-RIAW-X
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
