ViewZ VZ-PVM-I2W3N Full HD LED LCD 23.6" Monitor with Ethernet, 16:9, White

SKU: VZ-PVM-I2W3N ViewZ

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of ZQ-VPVMI2W3N
Product images for ViewZ VZ-PVM-I2W3N Full HD LED LCD 23.6" Monitor with Ethernet, 16:9, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Simplifies surveillance with a built-in 2MP IP camera and ONVIF Profile‑S support for seamless VMS integration and remote monitoring
  • Delivers clear evidence capture on a 23.6‑inch Full HD (1920x1080) IPS panel with 178° viewing for consistent image quality across public spaces
  • Varifocal DC auto‑iris 2.8–12 mm lens plus motion sensing and recording indicator to reduce false alerts and improve situational awareness

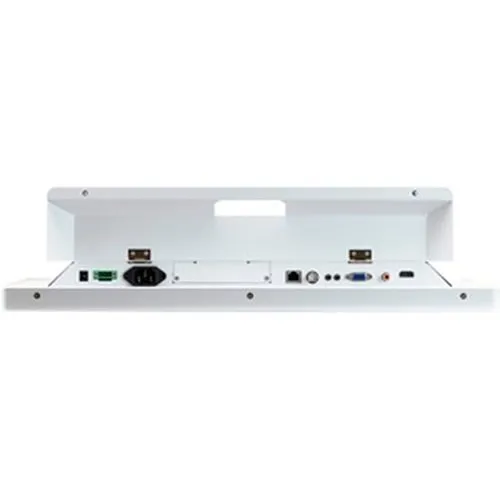

  • Flexible connectivity including Ethernet, HDMI, VGA, composite and camera BNC out for hybrid installations and easy networked playback
  • Commercial reliability with dual‑voltage support, VESA mounting, low 36W power draw and a 3‑year limited warranty for 24/7 security operations

Quick Specifications

Product Model
VZ-PVM-I2W3N
Brand Name
ViewZ
Product Name
VZ-PVM-I2W3N Widescreen LCD Monitor
Product Type
LCD Monitor
View Full Technical Specifications

Product Information Tabs

Overview

Designed for duty‑critical environments, the ViewZ VZ‑PVM‑I2W3N is a Full HD video surveillance monitor that combines a high‑quality display with an integrated 2MP IP camera to streamline security and public‑view monitoring. As a commercial‑grade PVM, it delivers 1920x1080 resolution on a 23.6‑inch IPS panel with wide 178° viewing, ensuring guards, staff and customers see consistent, usable footage from multiple angles. Built‑in ONVIF Profile‑S support and Ethernet connectivity make VMS integration and remote streaming simple, while the DC auto‑iris varifocal lens (2.8–12 mm), motion sensing and a visible “Recording in Progress” indicator improve evidence capture and deter theft. Multiple inputs (HDMI, VGA, composite) plus camera BNC out provide flexible deployment options for hybrid analog/IP systems, and dual‑voltage operation with a 3‑year warranty supports reliable 24/7 surveillance. Ideal for retail, transportation hubs, hospitality and corporate security rooms, the ViewZ VZ‑PVM‑I2W3N reduces installation complexity and improves monitoring efficiency. Contact your distributor to specify this PVM for your next security or digital signage project.

Features

  • Simplifies surveillance with a built-in 2MP IP camera and ONVIF Profile‑S support for seamless VMS integration and remote monitoring
  • Delivers clear evidence capture on a 23.6‑inch Full HD (1920x1080) IPS panel with 178° viewing for consistent image quality across public spaces
  • Varifocal DC auto‑iris 2.8–12 mm lens plus motion sensing and recording indicator to reduce false alerts and improve situational awareness
  • Flexible connectivity including Ethernet, HDMI, VGA, composite and camera BNC out for hybrid installations and easy networked playback
  • Commercial reliability with dual‑voltage support, VESA mounting, low 36W power draw and a 3‑year limited warranty for 24/7 security operations
General Information
Brand Name ViewZ
Manufacturer ViewZ
Product Name VZ-PVM-I2W3N Widescreen LCD Monitor
Product Type LCD Monitor
Product Model VZ-PVM-I2W3N
Product Series PVM
Manufacturer Part Number VZ-PVM-I2W3N
Technical Information
Webcam Yes
Audio
Speakers Yes
Display & Graphics
Pixel Pitch 10.7mil
Screen Size 24"
Number of Screens 1
Backlight Technology LED
Energy & Performance
Operating Power Consumption 36W
Aspect Ratio 16:9
Interfaces/Ports
VGA Yes
HDMI Yes
Others
Model Number Replaces VZ-PVM-I2W3, VZ-PVM-Z2W3N
Physical Characteristics
Depth 2.2"
Width 21.7"
Height 16.1"
Weight 22.04lb
VESA Mount Standard 200 x 200
VESA Mount Compatible Yes
Product Information
Mount Type Ceiling Mount, Wall Mount
Display Screen Type LCD
Video
Contrast Ratio 3,000:1
Graphics Modes Full HD
Brightness (Nit) 250
Maximum Resolution 1920 x 1080
Standard Refresh Rate 60 Hz
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 3D Comb-filter, De-Interlace
Country of Origin CN
