Honeywell Home WAVE2EX Indoor Piezo Sounder
Image of 2
Key Features
- Reliable high-volume alerts with low auxiliary draw — delivers 100 dB at 60 mA or 106 dB in high-output mode for clear audible alarms
- Reduces installation time and complexity with a patented case that fits a standard single-gang box and snap-open hinged cover
- Flexible mounting for corners, ceilings or wall plates without extra brackets, simplifying retrofits in surveillance and security projects
- Hardwired 12V DC connection and easy terminal block wiring for dependable, tamper-resistant integration into alarm and monitoring systems
- UL-listed for residential and commercial burglary/fire applications, giving installers confidence in code-compliant deployments
Quick Specifications
- Product Model
- WAVE2EX
- Brand Name
- Honeywell Home
- Product Line
- WAVE
- Product Name
- WAVE2EX Siren
Explore the details
Product information
WAVE2EX
Overview
Designed for professional security and monitoring installations, the Honeywell Home WAVE2EX Indoor Piezo Sounder delivers loud, reliable audible alerts while keeping auxiliary current demands low. Ideal for sites where power is limited, the WAVE2EX produces 100 dB at just 60 mA and a high-output 106 dB at 110 mA, ensuring alarms are heard without overtaxing system supply. The compact, patented case fits a standard single-gang electrical box or wall plate and features a snap-open hinged cover and channeled back for fast, clean wiring. Installers benefit from tool-free corner, ceiling or bracket-free mounting and straightforward terminal block connections for wired alarm panels. UL listings for residential and commercial burglary and fire applications make this sounder a dependable choice for surveillance, access control, and integrated security solutions. Choose the WAVE2EX to simplify installs and strengthen audible detection—perfect for retrofit or new builds in commercial and residential monitoring systems. Order the Honeywell Home WAVE2EX Indoor Piezo Sounder to upgrade your alarm performance today.
Features
- Reliable high-volume alerts with low auxiliary draw — delivers 100 dB at 60 mA or 106 dB in high-output mode for clear audible alarms
- Reduces installation time and complexity with a patented case that fits a standard single-gang box and snap-open hinged cover
- Flexible mounting for corners, ceilings or wall plates without extra brackets, simplifying retrofits in surveillance and security projects
- Hardwired 12V DC connection and easy terminal block wiring for dependable, tamper-resistant integration into alarm and monitoring systems
- UL-listed for residential and commercial burglary/fire applications, giving installers confidence in code-compliant deployments
| General Information | |
|---|---|
| Brand Name | Honeywell Home |
| Manufacturer | Resideo |
| Product Line | WAVE |
| Product Name | WAVE2EX Siren |
| Product Type | Siren |
| Product Model | WAVE2EX |
| Manufacturer Part Number | WAVE2EX |
| Technical Information | |
| Alarm Type | Audible |
| Application/Usage | Audio Alert Transmission |
| Connectivity Technology | Wired |
| Environmental Conditions | |
| Sound Emission | 106 dB |
| Physical Characteristics | |
| Color | White |

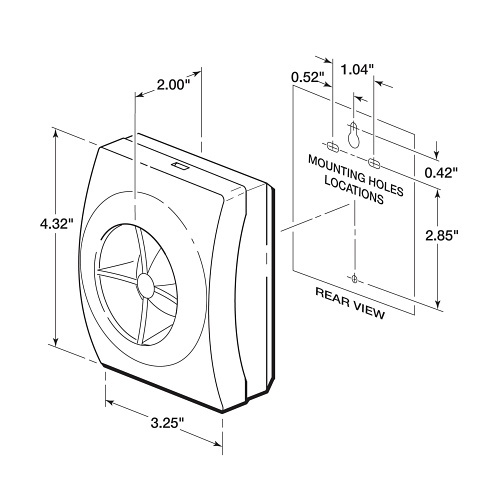

| Depth | 2" |
| Width | 3.25" |
| Height | 4.3" |
| Form Factor | Bracket Mount, Ceiling Mount, Corner Mount |
| Power Description | |
| Power Source | DC |
| Input Voltage | 12V DC |
| Product Information | |
| Length | 4.32" |
| Mount Type | Bracket Mount, Ceiling Mount, Corner Mount |
| Miscellaneous | |
| Features | Channeled case back for convenient wiring access, Corner or ceiling mounting with no additional brackets or hardware, Easy terminal block wire connections, For use when auxiliary current is limited - has a selectable current/sound pressure option with current as low as 60mA while still producing 100 dB. 106 dB/110mA with high-output, Patented case design fits single gang electrical box or wall plate, Snap-open hinged case cover for faster installation |
| Compatibility | Residential Use |
| Indoor/Outdoor | Indoor |
| Country of Origin | CN |
| Certifications & Standards | UL Commercial Burglary, UL Listed for Residential Fire, UL Residental Burglary |
