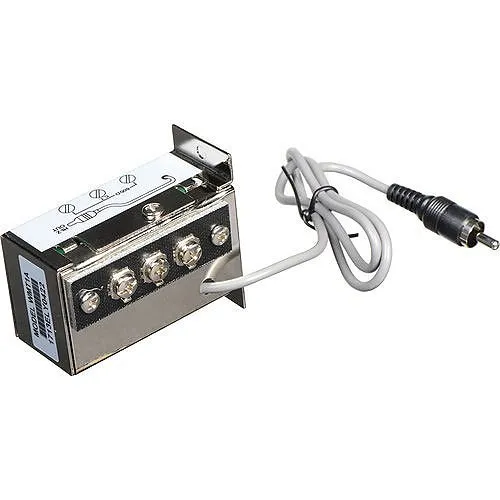

Bogen WMT1A Line Matching Transformer

For reliable audio interfacing in paging, music-on-hold and surveillance audio paths, the Bogen WMT1A line matching transformer delivers consistent impedance matching that keeps announcements and monitored feeds clean and intelligible. This Bogen transformer is engineered with a Hi-Z 10kΩ primary and a balanced Lo-Z 600Ω secondary with center tap to minimize hum, reduce signal loss, and ensure compatibility with telephone lines and 25V amplifier outputs. With a compact open-frame form factor and a 4VA rating (supports 25V and 75V inputs), the WMT1A is ideal for integrators working on public address, security, and monitoring systems where space and audio fidelity matter. Use it as an input-matching transformer to connect telephone systems to PA amplifiers for telephone paging, or as an output-matching device to feed program material over a 600Ω line for music-on-hold and remote monitoring. Dependable, cost-effective, and simple to install—choose the WMT1A to improve audio clarity in surveillance, security, and enterprise audio deployments.

• Simplifies integration between telephone lines and public address systems for clear paging and music-on-hold
• Provides precise impedance matching (10kΩ Hi-Z primary to 600Ω Lo-Z secondary) to reduce noise and signal loss
• Balanced 600Ω secondary with center tap ensures reliable compatibility with telephone circuits and 25V amplifier outputs
• Compact, open-frame design (2.3" x 2" x 1.3") saves rack space and installs easily in security and monitoring equipment racks
• Rated 4VA with 25V/75V input options for dependable performance in surveillance, monitoring, and PA applications
