AtlasIED WTSD-MIX41K Indoor/Outdoor Analog Wall 4x1 Mic/Line Mixer W/Optional Dante Audio Network Interface

Streamline localized microphone and line-level mixing for paging, surveillance and AV monitoring with the AtlasIED WTSD-MIX41K analog wall mixer. This compact 4x1 mic/line mixer delivers four balanced inputs with individual level controls and visual peak indicators, so integrators can achieve clean, intelligible audio for security, hotel, school or retail environments. User-enabled phantom power and a 120Hz low-cut filter reduce unwanted noise and improve speech clarity for monitoring and public address applications. The WTSD-MIX41K includes the WTSD-PWBOB power/interface, fits most 2-gang boxes, and uses industry-standard Cat5/Cat6 wiring for tidy installations. A high-gain balanced line output supports long cable runs (up to 400 ft) and the unit provides local mute plus a remote trigger for amplifier control and system priority muting. For networked audio, add the optional TSD-DAC2i Dante interface to integrate the mixer with AV-over-IP and surveillance networks. Rugged, flexible and easy to deploy, the AtlasIED WTSD-MIX41K is ideal for security systems, monitoring rooms and distributed paging — contact sales or add to your project to simplify on-site audio control.

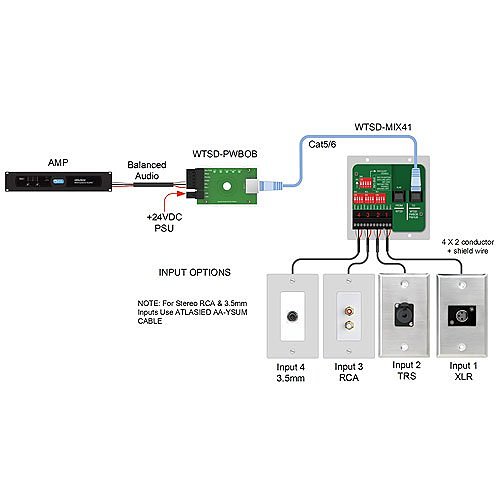

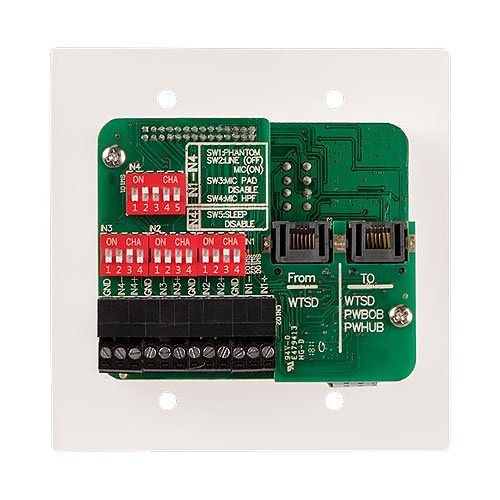

• Compact wall-mount mixer with four balanced mic/line inputs and individual level controls for fast, reliable on-site audio mixing
• Improves intelligibility with user-enabled phantom power, 120Hz low-cut filter and peak indicators to reduce noise for security and paging

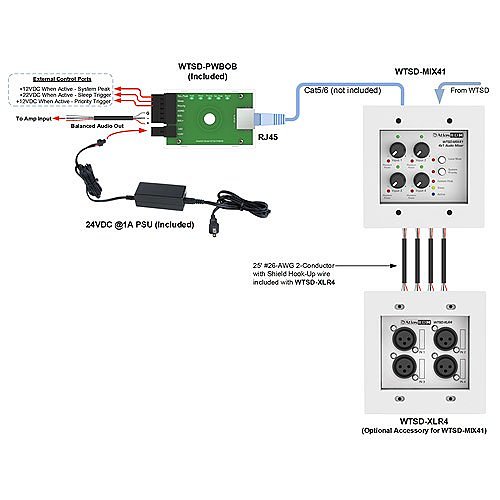

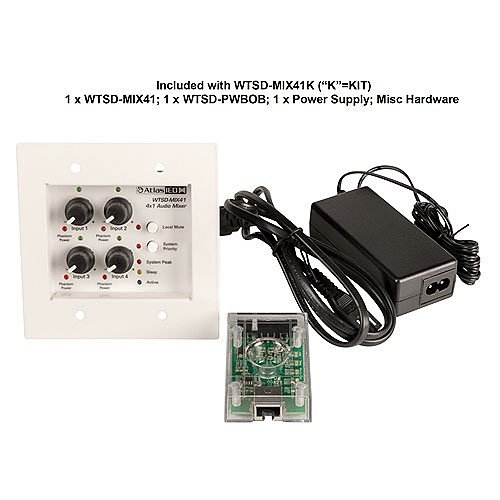

• Includes WTSD-PWBOB power/interface and Cat5/6 connectivity for clean installations in 2-gang boxes, indoor or outdoor-ready with optional cover

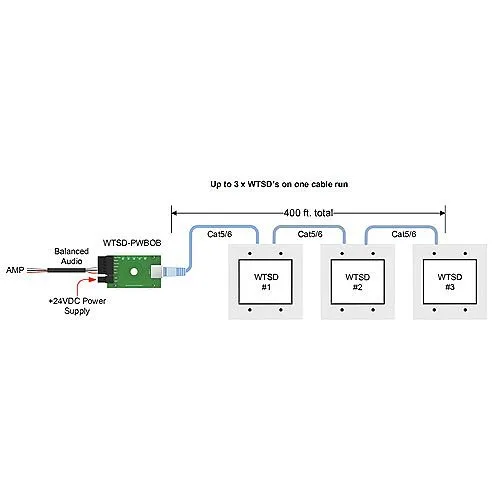

• High-gain balanced line output (suitable for runs up to 400 ft) and remote mute/trigger for easy integration with amplifiers and monitoring systems

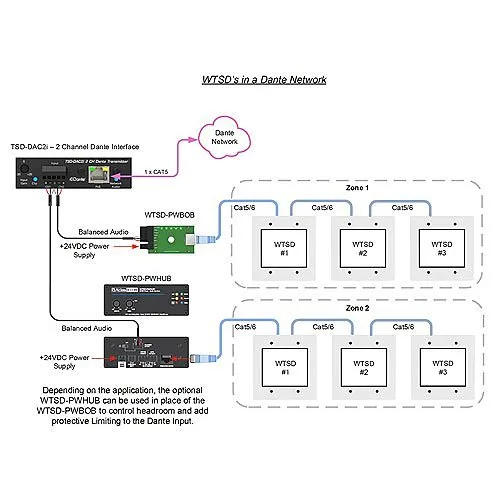

• Optional Dante upgrade (TSD-DAC2i) converts the unit to networked audio for AV, IP surveillance and building-wide audio distribution
