Hanwha XNB-6002 2MP Remote Head IP Camera Main Module, Black

SKU: XNB-6002 Hanwha Vision

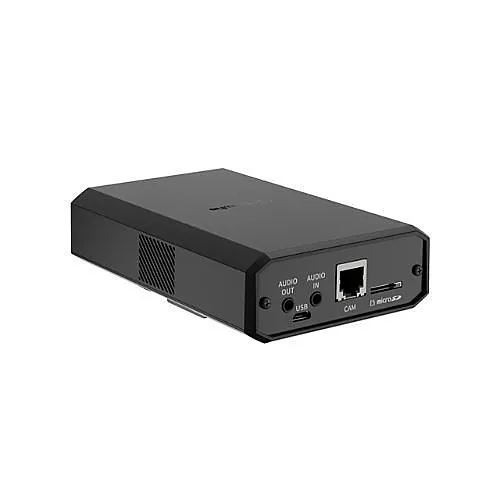

Image of SQ-XNB6002
Product images for Hanwha XNB-6002 2MP Remote Head IP Camera Main Module, Black. 2 image(s) available. Click on image to view full size.

Key Features

  • Discreet, adaptable remote-head design lets integrators place high-quality 1080p imaging where space is limited, improving covert surveillance and site coverage
  • Exceptional low-light and backlight performance with ExtremeWDR (120 dB) and Defog to capture usable evidence in challenging conditions
  • Efficient H.265 and WiseStream II compression plus 60 fps capability reduce bandwidth and storage costs while preserving smooth, detailed video
  • Flexible deployment with PoE or 12V DC power and microSDXC local recording (up to 1TB) for resilient, hybrid storage and simplified installations
  • Built-in analytics, sound classification and TPM 2.0 security protect footage integrity and support proactive monitoring and automated event detection

Quick Specifications

Product Model
XNB-6002
Brand Name
Hanwha Vision
Product Name
2MP Remote Head Camera
Product Type
Head Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha XNB-6002 2MP Remote Head IP Camera Main Module, Black

Hanwha XNB-6002 2MP Remote Head IP Camera Main Module, Black

$348.84

Frequently Bought Together (3 items)

4 items selected

Total: $938.02

Explore the details

Product information

XNB-6002

Overview

Optimize covert and mission-critical surveillance with the Hanwha Vision XNB-6002 2MP Remote Head IP Camera main module. Designed for integrators and security professionals, this compact camera module delivers full 1080p (1920 x 1080) imaging at up to 60 fps, combined with ExtremeWDR (120 dB) and Defog to ensure clear evidence-grade video in high-contrast or smoky environments. H.265 and WiseStream II compression minimize network load and storage costs, while PoE or 12V DC power options and onboard microSDXC (up to 1TB) provide deployment flexibility and failover recording. Advanced on-board analytics and sound classification enable smarter event detection and faster incident response, and TPM 2.0 helps safeguard video integrity and device authentication. Ideal for retail loss prevention, transportation hubs, banking, and discreet monitoring installations, the XNB-6002 integrates seamlessly into enterprise surveillance systems. Contact your Hanwha Vision reseller to specify this remote head module for your next security or monitoring project.

Features

  • Discreet, adaptable remote-head design lets integrators place high-quality 1080p imaging where space is limited, improving covert surveillance and site coverage
  • Exceptional low-light and backlight performance with ExtremeWDR (120 dB) and Defog to capture usable evidence in challenging conditions
  • Efficient H.265 and WiseStream II compression plus 60 fps capability reduce bandwidth and storage costs while preserving smooth, detailed video
  • Flexible deployment with PoE or 12V DC power and microSDXC local recording (up to 1TB) for resilient, hybrid storage and simplified installations
  • Built-in analytics, sound classification and TPM 2.0 security protect footage integrity and support proactive monitoring and automated event detection
24 of 24 specifications
Technical specifications for Hanwha XNB-6002 2MP Remote Head IP Camera Main Module, Black
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP Remote Head Camera
Product Type Head Camera
Product Model XNB-6002
Country of Origin VN
Manufacturer Part Number XNB-6002
Technical Information
Aspect Ratio 16:9
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Maximum Frame Rate 60.0fps
Wide Dynamic Range Yes
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 90% RH (Non-condensing)
Exposure
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Physical Characteristics
Color Black
Depth 3.39"
Width 5.16"
Height 1.32"
Weight 0.93lb
Power Description
Input Voltage 12V DC
Video
Maximum Resolution 1920 x 1080
