Hanwha XNB-H6244A X Series 2MP IP ATM Camera, Kit
Key Features
- Discreet ATM-focused surveillance: covert, compact design for unobtrusive monitoring of teller stations and transaction areas
- Clear evidence capture: Full HD 2MP imaging at up to 60 fps with 120dB WDR for readable detail in mixed lighting
- Built-in analytics and event storage: on-device human/motion/sound detection plus SD card support (up to 256GB) for reliable local recording
- Flexible installation and power options: PoE or 12V DC support and included STB-2000 ATM mount simplify deployment in kiosks and vestibules
- Secure, efficient streaming: H.265/H.264 codecs and WiseStream II lower bandwidth and storage costs while maintaining image quality
Quick Specifications
- Product Model
- XNB-H6244A
- Brand Name
- Hanwha Vision
- Product Name
- 2MP Network ATM Camera Kit (1.5m Cable)
- Product Type
- Network Camera
Product Information Tabs
Overview

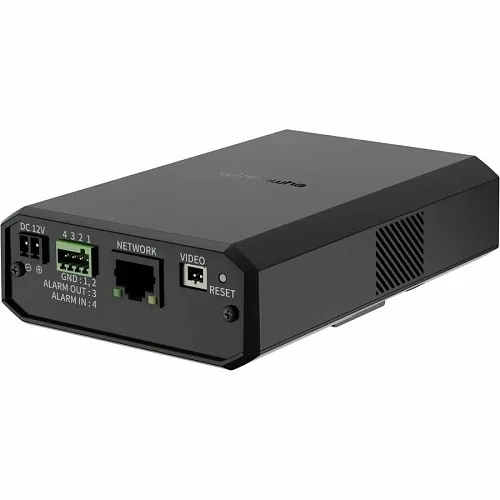

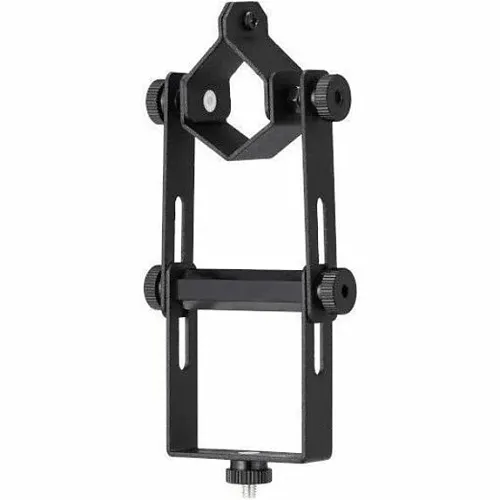

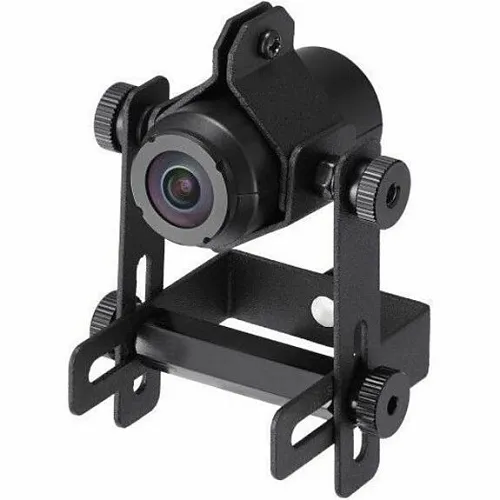

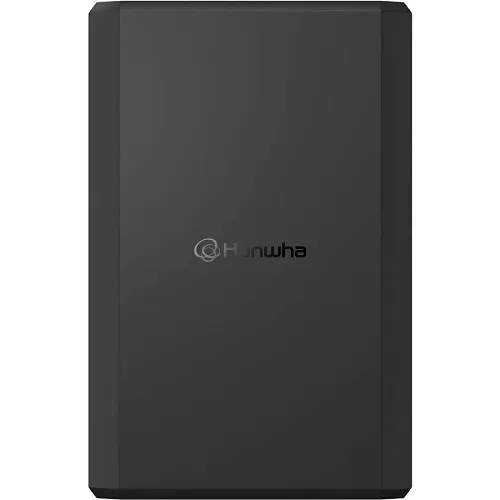

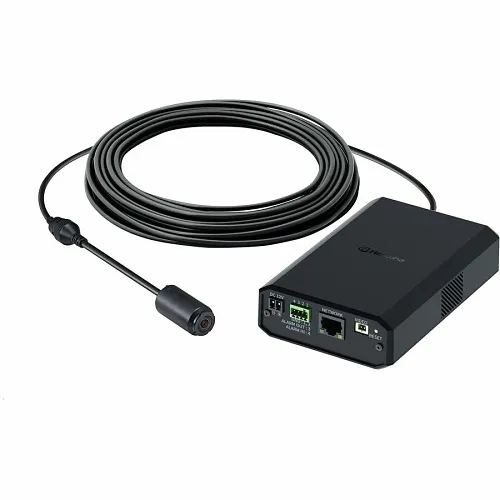

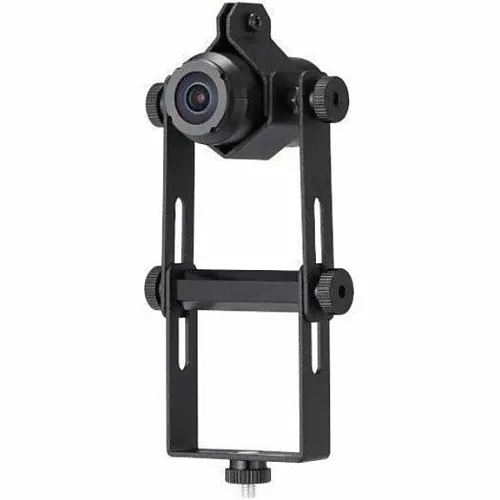

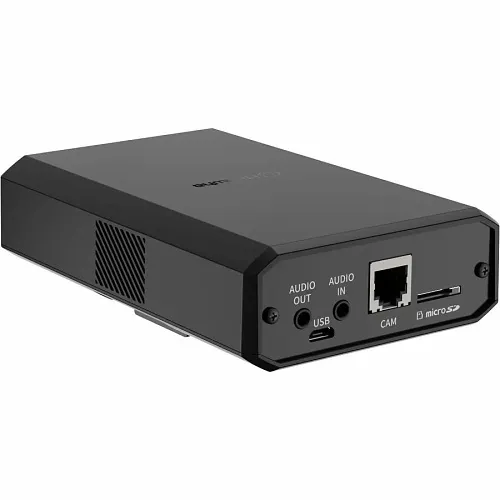

Protect transactions and deter fraud with the Hanwha Vision XNB-H6244A X Series 2MP IP ATM Camera Kit — a purpose-built covert camera solution for ATMs, kiosks and teller areas. This Hanwha Vision network camera delivers crisp Full HD (1920 x 1080) video at up to 60 fps and an industry-leading 120dB WDR, ensuring faces and card details remain legible in high-contrast scenes. WiseStream II plus H.265 compression reduces bandwidth and storage needs without sacrificing image integrity, and the onboard analytics (human, motion, audio, tamper detection) provide smart event alerts to speed incident response. The kit includes the XNB-6002 main unit, STB-2000 ATM mount and power adapter for a fast, secure installation—PoE or 12V DC options simplify wiring in tight ATM environments. With an SD/SDHC/SDXC slot supporting up to 256GB, local evidence retention is dependable even if network connectivity is interrupted. Ideal for banks, retail kiosks and cash-handling facilities that need discreet, high-performance surveillance and monitoring. Upgrade your ATM security setup with this complete covert camera kit today.
Features
- Discreet ATM-focused surveillance: covert, compact design for unobtrusive monitoring of teller stations and transaction areas
- Clear evidence capture: Full HD 2MP imaging at up to 60 fps with 120dB WDR for readable detail in mixed lighting
- Built-in analytics and event storage: on-device human/motion/sound detection plus SD card support (up to 256GB) for reliable local recording
- Flexible installation and power options: PoE or 12V DC support and included STB-2000 ATM mount simplify deployment in kiosks and vestibules
- Secure, efficient streaming: H.265/H.264 codecs and WiseStream II lower bandwidth and storage costs while maintaining image quality
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 2MP Network ATM Camera Kit (1.5m Cable) |
| Product Type | Network Camera |
| Product Model | XNB-H6244A |
| Product Series | X |
| Manufacturer Part Number | XNBH6244A |
| Technical Information | |
| Lens Type | Fixed |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 2.4mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 73° |
| Field of View (Horizontal) | 138° |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | Yes |
| Maximum Focal Length | 2.4mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Black |
| Weight | 14.82oz |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Mount Type | Box Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Audio Detection, Defog, Gain Control, HTTPS Encryption, Human Detection, Motion Detection, Sound Detection, Tamper Detection, White Balance, Wide Dynamic Range |
