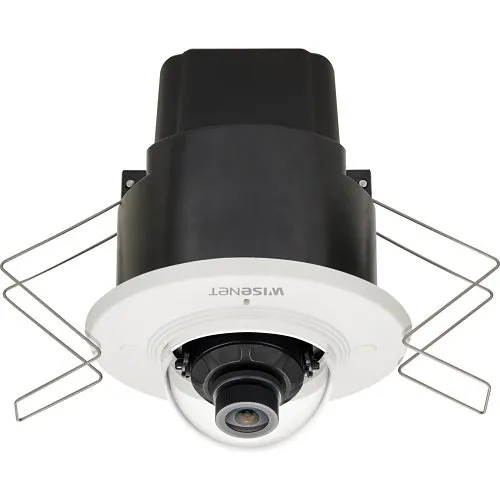

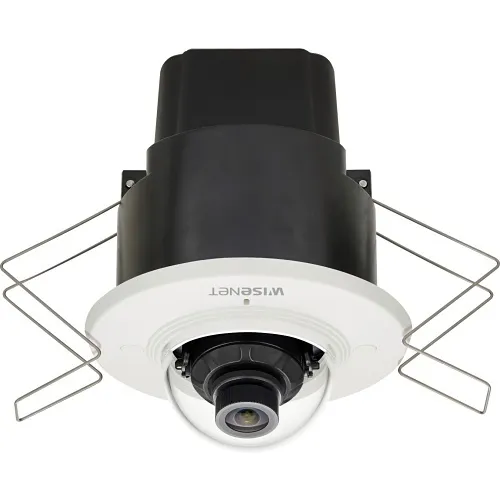

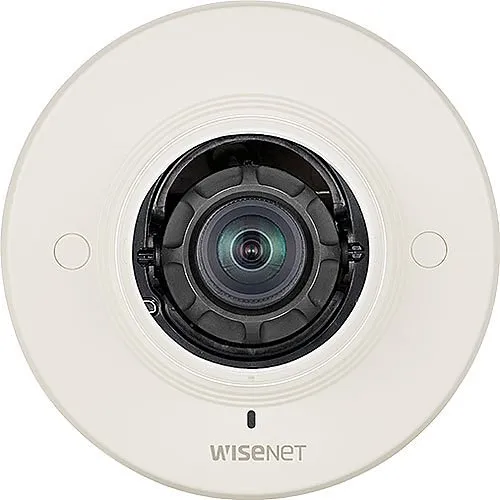

Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Discreet flush-mount design keeps interiors tidy while delivering 5MP clarity for confident identification and evidence-grade surveillance.
- 5MP at 30fps with a 3.7mm wide-angle lens captures smooth, detailed video across retail, office, and hospitality spaces.
- 120dB WDR and low-light sensitivity preserve detail in mixed lighting for reliable monitoring through challenging scenes.
- WiseStream II and H.265 compression reduce bandwidth and storage costs without sacrificing image quality.
- Built-in audio, on-board video and business analytics, and SD card storage deliver smarter insights and local recording for operational use.
- PoE-powered and NDAA compliant for simplified installation and procurement in commercial security deployments.
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- 5MP Indoor Flush Mount Compact Dome Camera
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
$367.19
10 items selected
Total: $3,038.24
Product Information Tabs
Overview
Optimize indoor security with the Hanwha Vision XND-8020F — a compact flush-mount dome camera engineered for dependable, low-profile surveillance. This X-Series 5MP indoor dome camera captures crisp 5MP video at 30fps via a 3.7mm fixed lens, giving security teams clear facial and incident detail while preserving a minimal ceiling footprint. With 120dB Wide Dynamic Range and advanced low-light performance, the camera maintains usable images in bright windows or dim corridors.
Bandwith-conscious sites benefit from WiseStream II plus H.265/H.264 support to cut storage and network costs, while on-board video analytics, sound classification and a built-in microphone enable smarter monitoring and faster incident response. The magnetic cover and USB-assisted setup speed deployment, and PoE-only power simplifies cabling. NDAA compliance and local SD fallback recording make this model suitable for enterprise, retail, healthcare and education installations.
Choose the Hanwha XND-8020F for discreet, high-resolution indoor monitoring with built-in analytics — ideal for upgrading existing systems or building new, cost-effective surveillance networks.
Features
- Discreet flush-mount design keeps interiors tidy while delivering 5MP clarity for confident identification and evidence-grade surveillance.
- 5MP at 30fps with a 3.7mm wide-angle lens captures smooth, detailed video across retail, office, and hospitality spaces.
- 120dB WDR and low-light sensitivity preserve detail in mixed lighting for reliable monitoring through challenging scenes.
- WiseStream II and H.265 compression reduce bandwidth and storage costs without sacrificing image quality.
- Built-in audio, on-board video and business analytics, and SD card storage deliver smarter insights and local recording for operational use.
- PoE-powered and NDAA compliant for simplified installation and procurement in commercial security deployments.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5MP Indoor Flush Mount Compact Dome Camera |
| Product Type | Dome Camera |
| Product Model | XND-8020F |
| Product Series | X |
| Manufacturer Part Number | XND-8020F |
| Technical Information | |
| Lens Type | Fixed |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.7mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| NDAA Compliant | Yes |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1920 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 14°F |
| Exposure | |
| Minimum Illumination | 0.16 lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.7mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.7mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Ivory |
| Height | 5.1" |
| Weight | 0.6lb |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 3.9" |
| Mount Type | Flush Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Highlight Compensation (HLC), Privacy Masking, SD Card Local Storage, Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| Country of Origin | KR |
