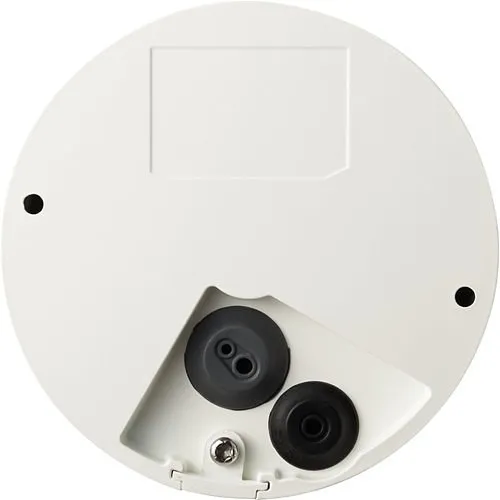

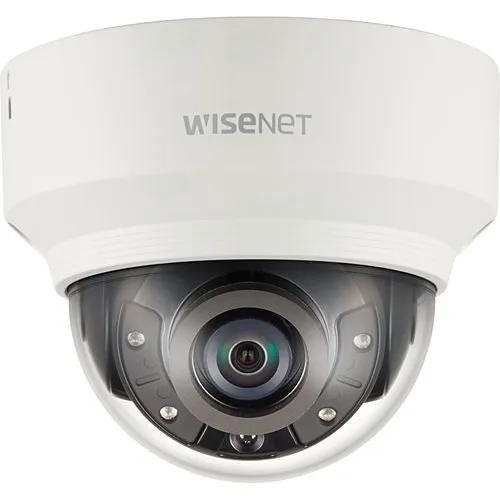

Hanwha XND-8020R X-Series 5MP IR Indoor Dome Camera, 3.7mm Fixed Lens, Ivory

SKU: XND-8020R Hanwha Vision
Wisenet XND-8020R 5 Megapixel Network Camera - Dome
Product images for Hanwha XND-8020R X-Series 5MP IR Indoor Dome Camera, 3.7mm Fixed Lens, Ivory. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Capture actionable detail with 5MP resolution and a wide 3.7mm lens for clear identification across retail, office and school environments
  • Maintain reliable monitoring in any lighting with True Day/Night, 120dB WDR and up to 98 ft IR for low-light coverage
  • Reduce bandwidth and storage costs using H.265 and WiseStream II compression while preserving image quality for long-term surveillance
  • Improve situational awareness with built-in analytics (people counting, loitering, sound classification) for proactive security and operational insights
  • Flexible installation and protection: PoE or 12V/24VAC power options, dual SD recording, and vandal/weather resistance for robust indoor deployments

Quick Specifications

Product Model
XND-8020R
Brand Name
Hanwha Vision
Product Name
5MP Indoor IR Dome
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Secure indoor spaces with the Hanwha Vision XND-8020R X-Series 5MP IR indoor dome camera — engineered for dependable, high-resolution surveillance and everyday monitoring. The camera delivers 5MP @30fps video through a 3.7mm fixed lens (≈97.5°), making it easy to identify people and incidents across lobbies, retail aisles or corridors. True Day/Night performance, 120dB WDR and an IR range up to 98 ft ensure consistent image clarity in challenging lighting and nighttime conditions. Advanced H.265 plus WiseStream II compression minimizes network bandwidth and storage costs without sacrificing detail, and dual SD slots provide localized backup for continuous recording. On-camera analytics — including people counting, loitering detection and sound classification — help security teams prioritize alerts and streamline monitoring workflows. NDAA compliance and vandal-resistant construction make the XND-8020R a practical choice for institutional and enterprise installs. Ideal for security, surveillance and facilities monitoring — contact sales or add to your next site deployment to improve situational awareness and reduce operational overhead.

Features

  • Capture actionable detail with 5MP resolution and a wide 3.7mm lens for clear identification across retail, office and school environments
  • Maintain reliable monitoring in any lighting with True Day/Night, 120dB WDR and up to 98 ft IR for low-light coverage
  • Reduce bandwidth and storage costs using H.265 and WiseStream II compression while preserving image quality for long-term surveillance
  • Improve situational awareness with built-in analytics (people counting, loitering, sound classification) for proactive security and operational insights
  • Flexible installation and protection: PoE or 12V/24VAC power options, dual SD recording, and vandal/weather resistance for robust indoor deployments
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 5MP Indoor IR Dome
Product Type Dome Camera
Product Model XND-8020R
Product Series X
Manufacturer Part Number XND-8020R
Technical Information
Lens Type Fixed
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 3.7mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98 ft
Certifications
NDAA Compliant Yes
Display & Graphics
Maximum Video Resolution 3096 x 2094
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature 14°F
Exposure
Minimum Illumination 0.2 lux
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.7mm
Maximum Focal Length 3.7mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color Ivory
Height 3.5"
Weight 0.80 lb
Durability Impact Resistant
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Diameter 4.33"
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Indoor/Outdoor Indoor
Impact Protection Rating IK08, IK10
