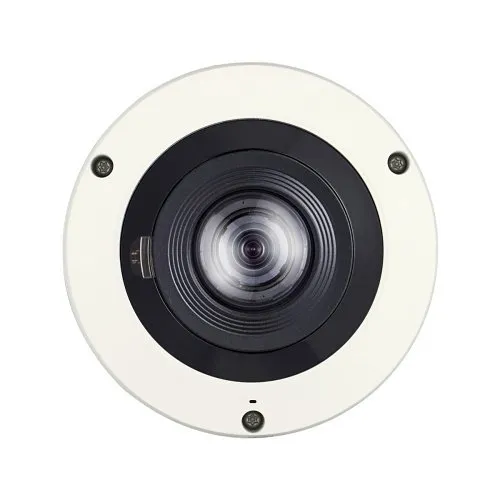

Hanwha XNF-8010RV/KME Series 6MP 360° Outdoor IR Fisheye IP Camera, 1.6mm Lens, Ivory, TAA Compliant
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 2
Key Features
- Complete 360° coverage with a 6MP sensor to eliminate blind spots and simplify site-wide surveillance
- Built for outdoor reliability: IP66 weatherproofing and IK10 impact resistance protect your investment
- Infrared night vision (≈49 ft) and True WDR ensure clear, usable footage in low light and high-contrast scenes
- Onboard analytics (people counting, heatmap, queue management) reduce false alarms and deliver actionable insights
- Efficient H.265 compression and WiseStream II support lower bandwidth and storage costs for large deployments
- Modular X Plus design and remote management speed installation and simplify maintenance across multi-site projects
Quick Specifications
- Product Model
- XNF-8010RV/KME
- Brand Name
- Hanwha Vision
- Product Name
- X series 6 MP sensor 360° Outdoor Fisheye
- Product Type
- Fisheye Camera
Frequently Bought Together
Hanwha XNF-8010RV/KME Series 6MP 360° Outdoor IR Fisheye IP Camera, 1.6mm Lens, Ivory, TAA Compliant
$753.38
4 items selected
Total: $1,840.56
Product Information Tabs
Overview
Designed for comprehensive perimeter monitoring and retail or campus security, the Hanwha Vision XNF-8010RV/KME is a 6MP 360° outdoor fisheye IP camera that gives operators a single, panoramic view with no blind spots. The fixed 1.6mm fisheye lens paired with a high-resolution 6MP sensor produces wide-area coverage and detailed imagery for forensic review, while built-in IR night vision extends reliable detection to roughly 49 feet. Industrial-grade IP66 and IK10 ratings ensure the camera withstands dust, moisture and vandalism, keeping critical surveillance online in harsh conditions.
This Hanwha Vision panoramic camera also includes True WDR for balanced exposure in challenging lighting, onboard dewarping and digital PTZ for flexible monitoring, plus analytics like people counting and heatmaps to turn video into operational insights. H.265 and WiseStream II compression optimize network bandwidth and storage for enterprise deployments. TAA compliance and modular X Plus design make this unit suitable for government and commercial sites. Add the XNF-8010RV/KME to your security infrastructure for robust, low-maintenance monitoring—ideal for parking lots, retail floors, campuses and perimeters.
Features
- Complete 360° coverage with a 6MP sensor to eliminate blind spots and simplify site-wide surveillance
- Built for outdoor reliability: IP66 weatherproofing and IK10 impact resistance protect your investment
- Infrared night vision (≈49 ft) and True WDR ensure clear, usable footage in low light and high-contrast scenes
- Onboard analytics (people counting, heatmap, queue management) reduce false alarms and deliver actionable insights
- Efficient H.265 compression and WiseStream II support lower bandwidth and storage costs for large deployments
- Modular X Plus design and remote management speed installation and simplify maintenance across multi-site projects
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | X series 6 MP sensor 360° Outdoor Fisheye |
| Product Type | Fisheye Camera |
| Product Model | XNF-8010RV/KME |
| Product Series | X |
| Manufacturer Part Number | XNF-8010RV/KME |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.264B, H.264H, H.264M, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.6mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 192° |
| Field of View (Horizontal) | 192° |
| Effective Camera Resolution | 6MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 49.21 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2048 x 2048 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.6mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.6mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Ivory |
| Weight | 1.73lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Fisheye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 5.7" |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Face Detection, Fog Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Shock Detection, Tamper Detection, Vehicle Detection, Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
