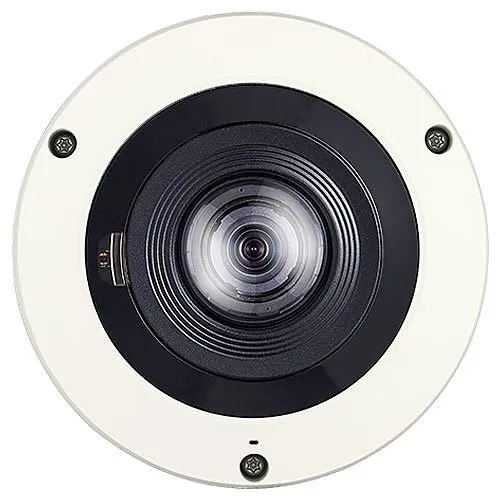

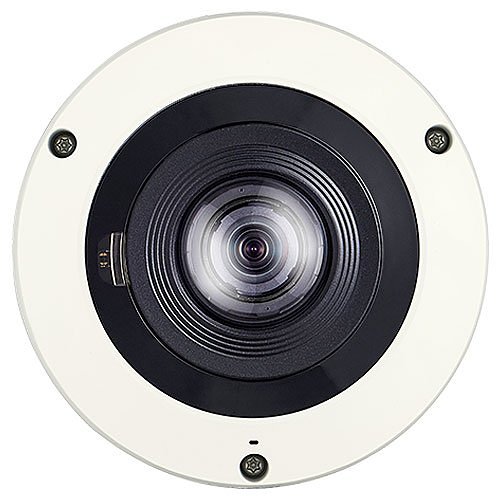

Hanwha XNF-8010RVM X-Series 6MP IR Vandal 360° Mobile Fisheye Camera, 1.6mm Fixed Lens, Ivory
Key Features
- True 360° coverage with a 1.6mm fisheye lens to eliminate blind spots and reduce the number of cameras required
- 6MP resolution (2048 x 2048 @30fps) for clear forensic detail and improved identification
- Built-in IR night vision up to 49 ft and WDR 120dB for reliable day/night surveillance in challenging lighting
- WiseStream II and H.265 compression to cut bandwidth and storage costs without sacrificing image quality
- Rugged, weatherproof design (IP66, IK10) and NDAA compliance for secure outdoor installations
- Onboard analytics, dual SD storage and PoE power for flexible edge monitoring and simplified deployment
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Group
- Product Name
- X Series 6 MP sensor 360° Mobile Fisheye
- Product Type
- Network Camera
Frequently Bought Together
Hanwha XNF-8010RVM X-Series 6MP IR Vandal 360° Mobile Fisheye Camera, 1.6mm Fixed Lens, Ivory
$703.80
11 items selected
Total: $2,161.25
Product Information Tabs
Overview
Eliminate blind spots and simplify deployments with the Hanwha Vision XNF-8010RVM X-Series 6MP panoramic camera. Designed for high-impact security and surveillance, this fisheye network camera delivers a full 360° view using a 1.6mm lens and a 6MP 2048 x 2048 sensor at 30 fps—providing actionable detail across large public spaces, retail floors, and transport hubs. Built-in IR LEDs extend night monitoring up to 49 ft while WDR 120dB maintains clarity in mixed lighting. For networked environments the XNF-8010RVM supports WiseStream II and H.265 compression to reduce bandwidth and storage costs, and PoE simplifies power and cabling. Durable IP66 and IK10 ratings plus NDAA compliance make it suitable for outdoor perimeter security and critical infrastructure projects. Edge features such as dual SD card slots, people counting, heatmap and tamper detection enable intelligent monitoring and quick incident review. Ideal for security integrators and facility managers, the Hanwha XNF-8010RVM is a high-performance panoramic solution for continuous surveillance—add it to your next monitoring or access-control deployment.
Features
- True 360° coverage with a 1.6mm fisheye lens to eliminate blind spots and reduce the number of cameras required
- 6MP resolution (2048 x 2048 @30fps) for clear forensic detail and improved identification
- Built-in IR night vision up to 49 ft and WDR 120dB for reliable day/night surveillance in challenging lighting
- WiseStream II and H.265 compression to cut bandwidth and storage costs without sacrificing image quality
- Rugged, weatherproof design (IP66, IK10) and NDAA compliance for secure outdoor installations
- Onboard analytics, dual SD storage and PoE power for flexible edge monitoring and simplified deployment
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | X Series 6 MP sensor 360° Mobile Fisheye |
| Product Type | Network Camera |
| Product Model | XNF-8010RVM |
| Product Series | X |
| Manufacturer Part Number | XNF-8010RVM |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.6mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 192° |
| Field of View (Horizontal) | 192° |
| Effective Camera Resolution | 6MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 49.21 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.6mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.6mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Height | 2.6" |
| Weight | 1.74lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Fisheye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 5.7" |
| Mount Type | Ceiling Mount, Gooseneck Mount, Pendant Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Built-in IR LED, Day/Night, Defog, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
