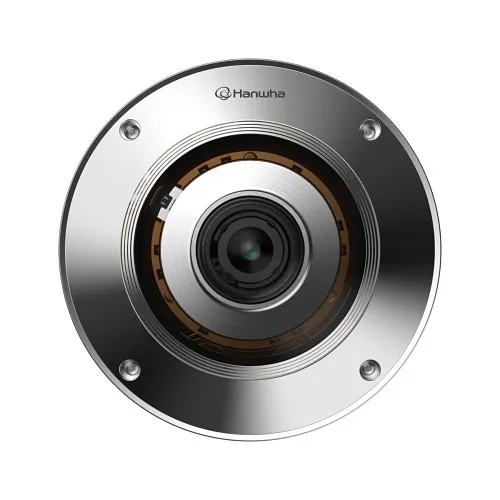

Hanwha XNF-9010RS X Series 12MP Outdoor IP Fisheye Camera
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 2
Key Features
- 360° panoramic coverage from a single 12MP fisheye reduces blind spots and cuts installation and maintenance costs.
- Rugged stainless-steel, IK10 and IP66/IP67-rated housing delivers reliable outdoor protection in extreme environments.
- Advanced Wisenet 7 imaging with 120dB WDR and 187° field of view preserves critical detail in challenging light for confident surveillance.
- Built-in analytics (heat mapping, people counting, tamper detection) turn video into actionable operational and security insights.
- Efficient H.265 compression and local SD storage minimize bandwidth and simplify recording for networked deployments.
Quick Specifications
- Product Model
- XNF-9010RS
- Brand Name
- Hanwha Vision
- Product Name
- Stainless Steel X series 12 MP sensor 360? Outdoor Fisheye
- Product Type
- Network Camera
Frequently Bought Together
Hanwha XNF-9010RS X Series 12MP Outdoor IP Fisheye Camera
$1,315.80
7 items selected
Total: $3,410.95
Product Information Tabs
Overview
Protect wide open areas with a single, enterprise-grade panoramic camera designed for real-world security and monitoring. The Hanwha Vision XNF-9010RS X Series 12MP outdoor IP fisheye camera delivers true 360° situational awareness from a single sensor, reducing blind spots and lowering total system cost compared with multi-camera setups. With a rugged stainless-steel body, IK10 impact resistance and IP66/IP67/IP6K9K ingress protection, it withstands harsh outdoor conditions while maintaining reliable operation from -40°F to 122°F.
Powered by Wisenet 7 imaging, the camera captures ultra-clear 12MP detail with 120dB Wide Dynamic Range and a 187° field of view for crisp daytime and night monitoring (IR-assisted). On-board analytics such as heat mapping and people counting provide actionable data for perimeter security, campus monitoring, retail analytics and parking lot management. H.265 video compression and SD card support reduce bandwidth and storage costs for networked deployments.
For facilities seeking robust, high-resolution panoramic surveillance, the Hanwha XNF-9010RS is an ideal choice—upgrade your security infrastructure today or contact us for deployment recommendations.
Features
- 360° panoramic coverage from a single 12MP fisheye reduces blind spots and cuts installation and maintenance costs.
- Rugged stainless-steel, IK10 and IP66/IP67-rated housing delivers reliable outdoor protection in extreme environments.
- Advanced Wisenet 7 imaging with 120dB WDR and 187° field of view preserves critical detail in challenging light for confident surveillance.
- Built-in analytics (heat mapping, people counting, tamper detection) turn video into actionable operational and security insights.
- Efficient H.265 compression and local SD storage minimize bandwidth and simplify recording for networked deployments.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | Stainless Steel X series 12 MP sensor 360? Outdoor Fisheye |
| Product Type | Network Camera |
| Product Model | XNF-9010RS |
| Product Series | X |
| Manufacturer Part Number | XNF-9010RS |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 187° |
| Field of View (Horizontal) | 187° |
| Effective Camera Resolution | 12MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 26' |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67, IP6K9K |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Lens | |
| Focal Length | 1.08mm |
| Lens Included | Yes |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | PNM-9002VQS |
| Physical Characteristics | |
| Color | White |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Fisheye |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | Audio Compression, Audio Detection, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Enter/Exit Detector, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Tamper Detection, White Balance, Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
