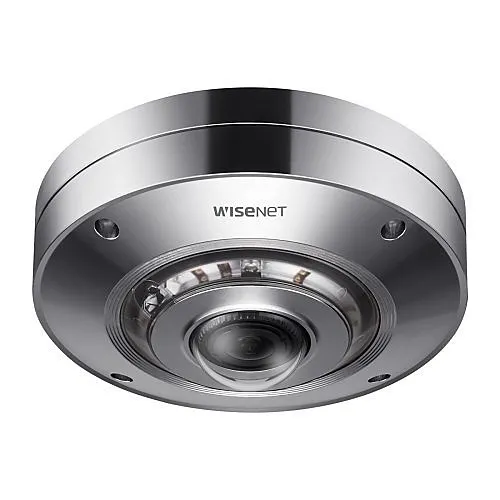

Hanwha XNF-9010RS/KUS Series 12MP IR Fisheye IP Camera, 1.08mm Fixed Lens, Stainless Steel, TAA Compliant
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 3
Key Features
- Full 360° panoramic surveillance with a 12MP fisheye (1.08mm) to eliminate blind spots and reduce the number of cameras required
- Durable stainless-steel housing with IP66/IP67/IP6K9K and IK10 ratings for reliable outdoor, vandal- and weather-resistant monitoring
- WiseStream II + H.265 compression lowers bandwidth and storage costs while preserving image detail for long-term evidence retention
- Built-in analytics (heatmap, tamper, motion, audio classification) and bi-directional audio enable faster incident detection and proactive response
- Dual microSD slots for local redundancy, PoE+/12VDC power options for simplified installs, and TAA/TPM 2.0 compliance for secure government and enterprise deployments
Quick Specifications
- Product Model
- XNF-9010RS/KUS
- Brand Name
- Hanwha Vision
- Product Name
- 12MP Stainless Steel IR Fisheye Camera
- Product Type
- Fisheye Camera
Frequently Bought Together
Hanwha XNF-9010RS/KUS Series 12MP IR Fisheye IP Camera, 1.08mm Fixed Lens, Stainless Steel, TAA Compliant
$1,542.66
4 items selected
Total: $2,629.84
Product Information Tabs
Overview
Cover expansive outdoor areas with a single, rugged device — the Hanwha Vision XNF-9010RS/KUS 12MP fisheye IP camera delivers true panoramic monitoring ideal for perimeter, campus, transportation and industrial security. Its 12MP sensor combined with a 1.08mm fisheye lens produces high-detail, dewarped views and multiple display modes (single/dual/quad panorama) so you capture actionable footage across wide fields of view. Built for harsh environments, the stainless-steel housing meets IP66/IP67/IP6K9K and IK10 standards to resist weather and vandalism. Advanced imaging features including 120dB WDR and IR night vision (≈26 ft) maintain clarity in challenging lighting and at night.
Operational costs are reduced with WiseStream II and H.265 compression, while on-board analytics, heatmaps and tamper detection improve situational awareness and lower false alarms. Dual microSD slots provide local failover, and PoE+/12VDC plus TAA and TPM 2.0 support make this camera suitable for secure, compliant installations. For robust, low-maintenance outdoor surveillance that simplifies monitoring and evidence capture, specify the Hanwha Vision XNF-9010RS/KUS — contact sales or add to cart for perimeter and enterprise deployments.
Features
- Full 360° panoramic surveillance with a 12MP fisheye (1.08mm) to eliminate blind spots and reduce the number of cameras required
- Durable stainless-steel housing with IP66/IP67/IP6K9K and IK10 ratings for reliable outdoor, vandal- and weather-resistant monitoring
- WiseStream II + H.265 compression lowers bandwidth and storage costs while preserving image detail for long-term evidence retention
- Built-in analytics (heatmap, tamper, motion, audio classification) and bi-directional audio enable faster incident detection and proactive response
- Dual microSD slots for local redundancy, PoE+/12VDC power options for simplified installs, and TAA/TPM 2.0 compliance for secure government and enterprise deployments
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 12MP Stainless Steel IR Fisheye Camera |
| Product Type | Fisheye Camera |
| Product Model | XNF-9010RS/KUS |
| Product Series | X |
| Manufacturer Part Number | XNF-9010RS/KUS |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 187° |
| Field of View (Horizontal) | 187° |
| Effective Camera Resolution | 12MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 26.25 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67, IP6K9K |
| Display & Graphics | |
| Maximum Video Resolution | 3008 x 3008 |
| Environmental Conditions | |
| Operating Humidity | 95% RH |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 1/5 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.08mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.08mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Silver |
| Weight | 6.57lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Fisheye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 6.6" |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Audio Compression, Audio Detection, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Enter/Exit Detector, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Tamper Detection, White Balance, Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
