Hanwha XNF-9010RV/KAP Series 12MP 360° Outdoor Fisheye IP Camera, 1.08mm Lens, White, TAA Compliant

SKU: XNF-9010RVKAP MPN: XNF-9010RV/KAP Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

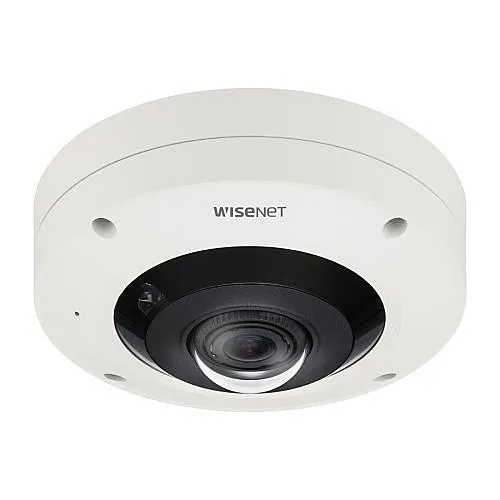

Image of SQ-XF91RVKAP
Product images for Hanwha XNF-9010RV/KAP Series 12MP 360° Outdoor Fisheye IP Camera, 1.08mm Lens, White, TAA Compliant. 2 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Complete 360° panoramic coverage to eliminate blind spots and simplify installation with a single fisheye camera
  • 12MP sensor and 1.08mm lens deliver high-resolution, forensic-quality images for reliable identification and incident review
  • Robust outdoor durability with IP66 weatherproofing and IK10 impact resistance for continuous security in harsh environments
  • Built-in infrared night vision (≈32.8 ft) and Wide Dynamic Range for clear monitoring in low light and high-contrast scenes
  • Efficient H.265 video compression and remote management support reduce bandwidth and storage costs while easing integration into existing surveillance systems

Quick Specifications

Product Model
XNF-9010RV/KAP
Brand Name
Hanwha Vision
Product Name
X series 12 MP sensor 360° Outdoor Fisheye
Product Type
Fisheye Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha XNF-9010RV/KAP Series 12MP 360° Outdoor Fisheye IP Camera, 1.08mm Lens, White, TAA Compliant

Hanwha XNF-9010RV/KAP Series 12MP 360° Outdoor Fisheye IP Camera, 1.08mm Lens, White, TAA Compliant

$861.01

Frequently Bought Together (3 items)

4 items selected

Total: $1,948.19

Product Information Tabs

Overview

Designed for wide-area security and monitoring, the Hanwha Vision XNF-9010RV/KAP 12MP 360° outdoor fisheye camera gives you seamless panoramic surveillance with one compact device. The high-resolution 12MP sensor and ultra-wide 1.08mm lens capture crisp, detailed images across a full 360° field of view—ideal for lobbies, retail floors, parking areas and campus sites where eliminating blind spots matters. Built for real-world deployments, the camera meets IP66 and IK10 ratings to withstand weather, dust and impact while operating from -40°F to 140°F.

Low-light performance is enhanced by infrared night vision (approximately 32.8 ft) and Wide Dynamic Range to preserve usable footage in challenging lighting. Network-friendly H.265 compression plus remote management capabilities reduce bandwidth and storage demands, making it easy to scale across multi-site security projects. With flexible pendant or ceiling mounting and TAA compliance, this Hanwha Vision panoramic camera is a dependable choice for enterprise-grade surveillance. Improve situational awareness and simplify monitoring—contact your reseller or order now to deploy a single-camera 360° solution.

Features

  • Complete 360° panoramic coverage to eliminate blind spots and simplify installation with a single fisheye camera
  • 12MP sensor and 1.08mm lens deliver high-resolution, forensic-quality images for reliable identification and incident review
  • Robust outdoor durability with IP66 weatherproofing and IK10 impact resistance for continuous security in harsh environments
  • Built-in infrared night vision (≈32.8 ft) and Wide Dynamic Range for clear monitoring in low light and high-contrast scenes
  • Efficient H.265 video compression and remote management support reduce bandwidth and storage costs while easing integration into existing surveillance systems
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name X series 12 MP sensor 360° Outdoor Fisheye
Product Type Fisheye Camera
Product Model XNF-9010RV/KAP
Product Series X
Manufacturer Part Number XNF-9010RV/KAP
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2.2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 1.8mm
Connectivity Technology Wired
Field of View (Vertical) 187°
Field of View (Horizontal) 187°
Effective Camera Resolution 12MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 32.81 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 3008 x 3008
Environmental Conditions
Operating Humidity 95% RH
Maximum Operating Temperature 140°F
Minimum Operating Temperature -40°F
Exposure
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 1/5 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 1.08mm
Lens Included Yes
Maximum Focal Length 1.08mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 2.43lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Fisheye
Power Description
Input Voltage 12V DC
Product Information
Diameter 6.3"
Mount Type Pendant Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin KR
Impact Protection Rating IK10
