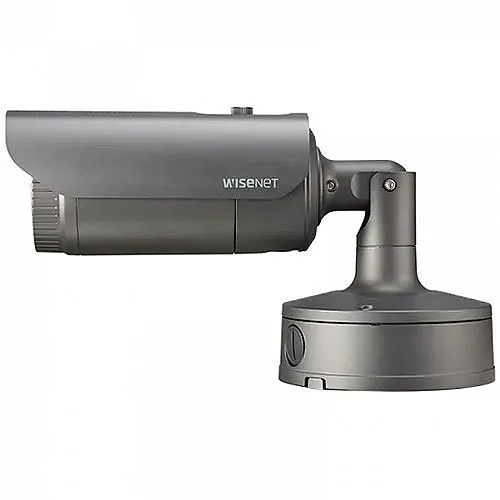

Hanwha XNO-8020R X-Series 5MP IR Bullet Camera, 3.7mm Fixed Lens, Gray
Image of 3
Key Features
- Rugged outdoor protection (IP67/IP66, IK10, NEMA 4X) for dependable perimeter security in harsh environments
- High-resolution monitoring with 5MP sensor and 3.7mm fixed lens for wide 97.5° coverage and clear identification
- Long-range night visibility up to 98 ft with built-in IR LEDs for 24/7 surveillance and reliable incident capture
- Lower bandwidth and storage costs with H.265 and WiseStream II plus dual SD support for edge recording
- Smart analytics (people counting, loitering, sound classification, tamper detection) enable proactive monitoring and faster response
Quick Specifications
- Product Model
- XNO-8020R
- Brand Name
- Hanwha Vision
- Product Name
- 5MP IR Bullet
- Product Type
- Bullet Camera
Frequently Bought Together
Hanwha XNO-8020R X-Series 5MP IR Bullet Camera, 3.7mm Fixed Lens, Gray
$550.80
5 items selected
Total: $2,588.26
Product Information Tabs
Overview
Designed for reliable outdoor security and continuous monitoring, the Hanwha Vision XNO-8020R X-Series 5MP IR bullet camera delivers clear, actionable video where it matters most. This Hanwha Vision bullet camera combines a 5MP sensor and a 3.7mm fixed lens (≈97.5° FOV) to capture high-detail images across wide areas, while powerful IR illumination reaches up to 98 ft for dependable night-time surveillance. Built for tough installations, the IP67/IP66, IK10 and NEMA 4X-rated housing resists dust, water and vandalism—ideal for perimeter, parking lot and critical infrastructure monitoring. Network-friendly H.265 compression with WiseStream II reduces bandwidth and storage demands, and dual SD slots allow secure edge recording. Integrated analytics—people counting, loitering detection, sound classification and tamper alerts—turn raw video into intelligence for faster incident response and operational insights. Flexible power options (PoE, 12V DC, 24VAC) and a USB-assisted simple focus speed up commissioning and lower installation time. Upgrade your security deployment with the XNO-8020R for robust, high-resolution surveillance. Contact sales to configure units for your site or add to cart to begin protecting your assets today.
Features
- Rugged outdoor protection (IP67/IP66, IK10, NEMA 4X) for dependable perimeter security in harsh environments
- High-resolution monitoring with 5MP sensor and 3.7mm fixed lens for wide 97.5° coverage and clear identification
- Long-range night visibility up to 98 ft with built-in IR LEDs for 24/7 surveillance and reliable incident capture
- Lower bandwidth and storage costs with H.265 and WiseStream II plus dual SD support for edge recording
- Smart analytics (people counting, loitering, sound classification, tamper detection) enable proactive monitoring and faster response
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5MP IR Bullet |
| Product Type | Bullet Camera |
| Product Model | XNO-8020R |
| Product Series | X |
| Manufacturer Part Number | XNO-8020R |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.7mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 3096 x 2094 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Minimum Illumination | 0.2 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.7mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.7mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Gray |
| Height | 11.65" |
| Weight | 2.87 lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Length | 11.7" |
| Diameter | 4.72" |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Back Light Compensation (BLC), Built-in IR LED, Day/Night, Highlight Compensation (HLC), SD Card Local Storage |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
