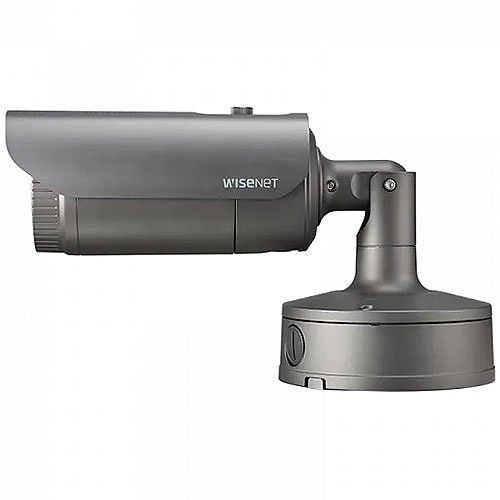

Hanwha XNO-8040R X-Series 5MP IR Bullet Camera, 7mm Fixed Lens, Gray
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Deliver crisp 5MP images for dependable identification and evidence capture in outdoor surveillance scenes
- Powerful IR illumination up to 98 ft and True D/N for reliable 24/7 monitoring in low light
- Robust vandal- and weather-resistant design (IK10, IP67/NEMA 4X) to protect critical infrastructure
- Efficient H.265/H.264 and WiseStream II compression reduces bandwidth and storage costs for networked deployments
- Built-in analytics (people counting, loitering, directional detection, sound classification) enable proactive security and smarter monitoring
Quick Specifications
- Product Model
- XNO-8040R
- Brand Name
- Hanwha Vision
- Product Name
- 5MP IR Bullet
- Product Type
- Bullet Camera
Frequently Bought Together
Hanwha XNO-8040R X-Series 5MP IR Bullet Camera, 7mm Fixed Lens, Gray
$550.80
5 items selected
Total: $2,588.87
Explore the details
Product information
XNO-8040R
Overview
The Hanwha Vision XNO-8040R X-Series 5MP IR bullet camera is engineered to strengthen perimeter and site security with high-resolution imaging and resilient outdoor protection. As a Hanwha Vision bullet camera, it delivers 5MP detail through a 7mm fixed lens and up to 98 ft of IR illumination to ensure clear identification day or night. Advanced WiseStream II plus H.265/H.264 compression reduces bandwidth and storage needs—ideal for large-scale surveillance and remote monitoring. Built-in analytics including people counting, loitering and sound classification help prioritize events and streamline operator workflows, while dual SD slots and PoE/12VDC/24VAC power options simplify installation and redundancy. Ruggedized to IK10 and IP67/NEMA 4X standards, this camera stands up to vandalism, dust and harsh weather for continuous operation at critical sites. Deploy the XNO-8040R for perimeter, parking lot, retail or campus surveillance to improve situational awareness and incident response—contact us to integrate it into your security system.
Features
- Deliver crisp 5MP images for dependable identification and evidence capture in outdoor surveillance scenes
- Powerful IR illumination up to 98 ft and True D/N for reliable 24/7 monitoring in low light
- Robust vandal- and weather-resistant design (IK10, IP67/NEMA 4X) to protect critical infrastructure
- Efficient H.265/H.264 and WiseStream II compression reduces bandwidth and storage costs for networked deployments
- Built-in analytics (people counting, loitering, directional detection, sound classification) enable proactive security and smarter monitoring
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5MP IR Bullet |
| Product Type | Bullet Camera |
| Product Model | XNO-8040R |
| Product Series | X |
| Manufacturer Part Number | XNO-8040R |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 7mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 3096 x 2094 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Minimum Illumination | 0.2 lux |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 7mm |
| Lens Included | Yes |
| Maximum Focal Length | 7mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Gray |
| Height | 11.65" |
| Weight | 2.87 lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Length | 11.7" |
| Diameter | 4.72" |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
