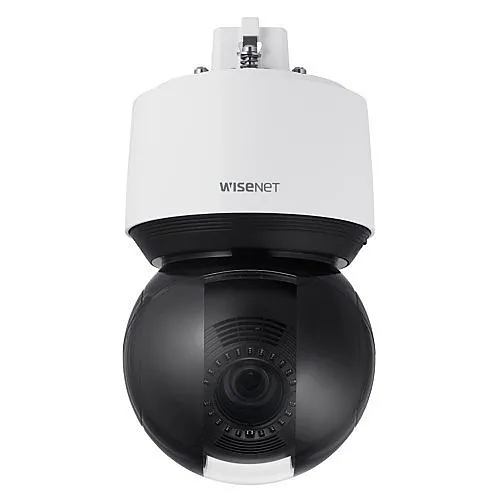

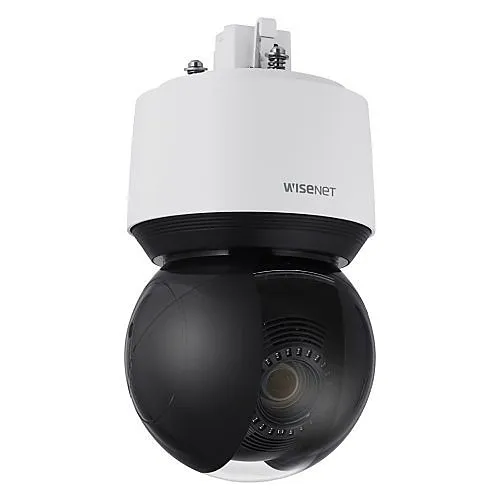

Hanwha XNP-6400/KAP Series 2MP WDR PTZ Plus IP Camera, 40x Optical Zoom Lens, Black/Signal White, TAA Compliant
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Extend visible range and identify critical details with a 40x optical zoom that lets security teams monitor large perimeters without sacrificing image clarity.
- Reduce false alarms and improve response with AI deep-learning target-lock and auto-tracking that follow persons or vehicles in real time.
- Maintain clear evidence-grade footage day or night with 2MP resolution, extreme WDR and infrared night vision for reliable surveillance in challenging lighting.
- Cut bandwidth and storage costs using H.265 + WiseStream II compression and dual SD slots for edge recording and redundancy.
- Deploy confidently outdoors: IP66 weatherproof, IK10 impact resistant housing and TAA compliance for federal and enterprise installations.
- Flexible 360° endless pan and increased tilt range deliver full-area coverage; supports multiple mounts and remote management for easy integration into existing systems.
Quick Specifications
- Product Model
- XNP-6400/KAP
- Brand Name
- Hanwha Vision
- Product Name
- 2MP, 40x PTZ camera
- Product Type
- PTZ Camera
Frequently Bought Together
Hanwha XNP-6400/KAP Series 2MP WDR PTZ Plus IP Camera, 40x Optical Zoom Lens, Black/Signal White, TAA Compliant
$1,944.14
4 items selected
Total: $3,704.30
Product Information Tabs
Overview
For demanding security and monitoring applications, the Hanwha Vision XNP-6400/KAP Series 2MP WDR PTZ Plus IP Camera delivers dependable long-range surveillance and intelligent tracking. Built for perimeter, campus and critical infrastructure deployments, this PTZ camera combines a 40x optical zoom lens and 360° endless pan/expanded tilt to keep fast-moving targets in frame. Advanced AI deep-learning target-lock and auto-tracking minimize operator workload and improve situational awareness by following persons or vehicles automatically.
Engineered for real-world conditions, the XNP-6400 offers extreme WDR, true day/night performance and infrared illumination for clear evidence-quality images in low light. Network efficiency and storage are optimized with H.265, WiseStream II and dual SD recording for resilient edge storage. Rugged IP66 and IK10-rated construction plus TAA compliance make it suitable for outdoor and government projects. Whether you need high-precision monitoring for transportation hubs, industrial sites or city surveillance, this Hanwha Vision PTZ camera provides scalable performance and reliable uptime. Contact sales to configure mounts and analytics or request a quote to add the XNP-6400 to your surveillance system.
Features
- Extend visible range and identify critical details with a 40x optical zoom that lets security teams monitor large perimeters without sacrificing image clarity.
- Reduce false alarms and improve response with AI deep-learning target-lock and auto-tracking that follow persons or vehicles in real time.
- Maintain clear evidence-grade footage day or night with 2MP resolution, extreme WDR and infrared night vision for reliable surveillance in challenging lighting.
- Cut bandwidth and storage costs using H.265 + WiseStream II compression and dual SD slots for edge recording and redundancy.
- Deploy confidently outdoors: IP66 weatherproof, IK10 impact resistant housing and TAA compliance for federal and enterprise installations.
- Flexible 360° endless pan and increased tilt range deliver full-area coverage; supports multiple mounts and remote management for easy integration into existing systems.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 2MP, 40x PTZ camera |
| Product Type | PTZ Camera |
| Product Model | XNP-6400/KAP |
| Product Series | X |
| Manufacturer Part Number | XNP-6400/KAP |
| Technical Information | |
| Night Vision | Yes |
| Optical Zoom | 40x |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.25mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 39.4° |
| Field of View (Horizontal) | 65.66° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 95% RH (Non-condensing) |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.05 lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.25-170mm |
| Lens Included | Yes |
| Minimum Aperture | f/4.95 |
| Maximum Focal Length | 170mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Black, White |
| Weight | 6.17lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | PTZ |
| Product Information | |
| Diameter | 6.2" |
| Mount Type | Desktop Mount, Rack Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
