Hanwha XNP-C6403 2MP 40x AI PTZ Camera, 4.25-170mm Lens, IP66

SKU: XNP-C6403 Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

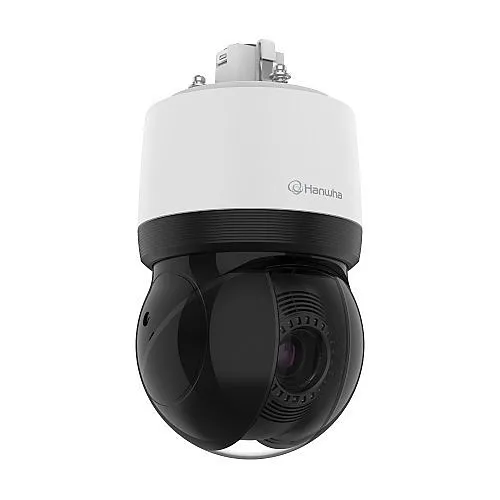

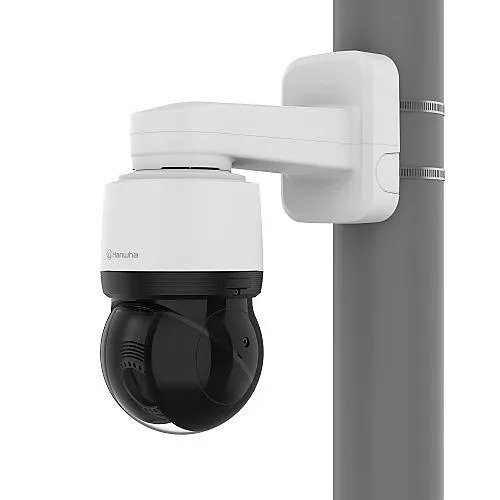

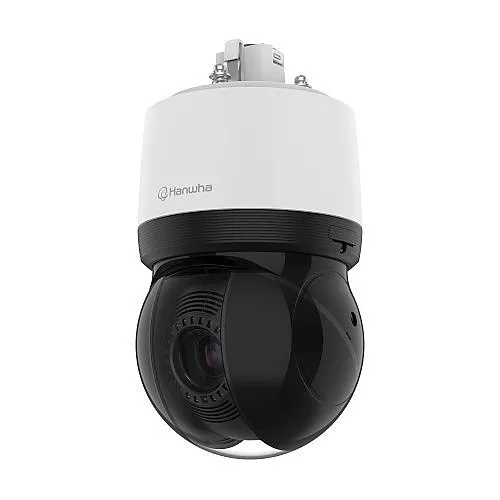

Image of SQ-XNPC6403
Product images for Hanwha XNP-C6403 2MP 40x AI PTZ Camera, 4.25-170mm Lens, IP66. 4 image(s) available. Click on image to view full size.

Key Features

  • Long-range, high-detail monitoring with 40x optical zoom so teams can identify incidents at distance without additional lenses
  • AI-driven person/vehicle auto-tracking and target-lock reduce missed events and cut investigation time for security teams
  • Rugged outdoor reliability (IP66, IK10, NEMA4X) for continuous perimeter and site surveillance in harsh environments
  • Exceptional low-light performance (down to 0.005 lux) and day/night modes for 24/7 monitoring and forensic-quality images
  • Bandwidth-efficient H.265 and WiseStream II compression for reduced network load and extended recording retention
  • Compact PTZ PLUS design and multiple mount options simplify installation and lower cabling and labor costs

Quick Specifications

Product Model
XNP-C6403
Brand Name
Hanwha Vision
Product Name
2MP 40x AI PTZ
Product Type
PTZ Camera
View Full Technical Specifications

Product Information Tabs

Overview

Deliver continuous, actionable surveillance across large outdoor areas with the Hanwha Vision XNP-C6403 2MP 40x AI PTZ camera. Built for security teams who need dependable long-range monitoring, this PTZ security camera combines a powerful 40x optical zoom (4.25–170mm) and low-light sensitivity (down to 0.005 lux) to capture clear identification-level images day or night. Intelligent analytics and AI-based person/vehicle auto-tracking automatically follow moving targets and lock onto objects of interest, reducing false alarms and accelerating incident response.

Engineered for real-world deployments, the XNP-C6403 meets IP66, IK10 and NEMA4X ratings for weather and impact resistance, and supports H.265 and WiseStream II to minimize bandwidth and storage costs. Remote management, multiple mounting options, and a compact PTZ PLUS design make installation faster and maintenance simpler for integrators and system operators. Ideal for perimeter protection, transportation hubs, and critical infrastructure monitoring — contact your Hanwha Vision distributor to specify or order this PTZ camera for your next security project.

Features

  • Long-range, high-detail monitoring with 40x optical zoom so teams can identify incidents at distance without additional lenses
  • AI-driven person/vehicle auto-tracking and target-lock reduce missed events and cut investigation time for security teams
  • Rugged outdoor reliability (IP66, IK10, NEMA4X) for continuous perimeter and site surveillance in harsh environments
  • Exceptional low-light performance (down to 0.005 lux) and day/night modes for 24/7 monitoring and forensic-quality images
  • Bandwidth-efficient H.265 and WiseStream II compression for reduced network load and extended recording retention
  • Compact PTZ PLUS design and multiple mount options simplify installation and lower cabling and labor costs
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP 40x AI PTZ
Product Type PTZ Camera
Product Model XNP-C6403
Manufacturer Part Number XNP-C6403
Technical Information
Optical Zoom 40x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Maximum Frame Rate 60fps
Minimum Focal Length 4.25mm
Connectivity Technology Wired
Field of View (Vertical) 39.4°
Field of View (Horizontal) 65.66°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 100% RH (Condensing)
Maximum Operating Temperature 165°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.005 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.25-170mm
Lens Included Yes
Minimum Aperture f/4.95
Maximum Focal Length 170mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color Black, White
Weight 7.05lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor PTZ
Product Information
Diameter 6.2"
Mount Type Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Shock Detection, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
