Hanwha XNP-C7310R 4MP AI IR PTZ IP Camera, 31x Zoom, 6.91-214.7mm Motorized Varifocal

SKU: XNP-C7310R Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

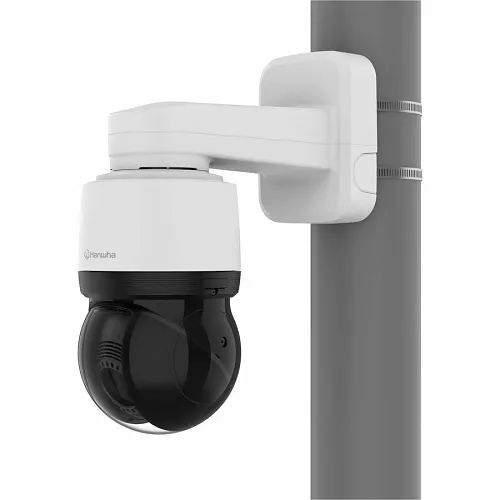

Image of SQ-XNPC7310R
Product images for Hanwha XNP-C7310R 4MP AI IR PTZ IP Camera, 31x Zoom, 6.91-214.7mm Motorized Varifocal. 2 image(s) available. Click on image to view full size.

Key Features

  • Extend perimeter visibility with 31x motorized zoom and 300m IR for reliable long-range monitoring
  • Preserve critical detail in low light and high-contrast scenes with 4MP resolution, 120dB WDR and AI-driven noise reduction
  • Reduce bandwidth and storage costs using H.265 and WiseStream AI compression while maintaining image fidelity
  • Maintain stable, usable footage with DIS and a built-in gyro for clear evidence during motion or vibration
  • Deploy in harsh outdoor environments confidently — IP66/IP67, IK10 and NEMA4X ratings plus FIPS 140-2 TPM cybersecurity

Quick Specifications

Product Model
XNP-C7310R
Brand Name
Hanwha Vision
Product Name
4MP 31x AI IR PTZ
Product Type
PTZ Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for demanding security deployments, the Hanwha Vision XNP-C7310R PTZ camera delivers long-range, mission-critical surveillance so you can monitor large perimeters, critical infrastructure, and remote sites with confidence. This 4MP PTZ combines a 31x motorized varifocal lens (6.91–214.7mm) and Wise IR illumination up to 300 m to capture actionable detail in low light. AI-powered WiseNR and 120dB WDR ensure clear, usable images in challenging lighting, while DIS with a built-in gyro stabilizes video during motion.

Operational efficiency is built in: H.265, H.264 and WiseStream compression lower bandwidth and storage needs without sacrificing image quality, and ONVIF compatibility simplifies integration into existing VMS and network architectures. Rugged IP66/IP67, IK10 and NEMA4X construction plus advanced cybersecurity (TPM with FIPS 140-2 Level 2) protect both hardware and data for continuous, secure monitoring.

Choose the XNP-C7310R when you need high-performance, long-range PTZ surveillance for perimeter security, transportation hubs, or industrial sites. Contact sales to configure a system or order today to upgrade your security monitoring.

Features

  • Extend perimeter visibility with 31x motorized zoom and 300m IR for reliable long-range monitoring
  • Preserve critical detail in low light and high-contrast scenes with 4MP resolution, 120dB WDR and AI-driven noise reduction
  • Reduce bandwidth and storage costs using H.265 and WiseStream AI compression while maintaining image fidelity
  • Maintain stable, usable footage with DIS and a built-in gyro for clear evidence during motion or vibration
  • Deploy in harsh outdoor environments confidently — IP66/IP67, IK10 and NEMA4X ratings plus FIPS 140-2 TPM cybersecurity
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 4MP 31x AI IR PTZ
Product Type PTZ Camera
Product Model XNP-C7310R
Manufacturer Part Number XNP-C7310R
Technical Information
Night Vision Yes
Optical Zoom 31x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.36
Night Vision Type Infrared
Maximum Frame Rate 60fps
Minimum Focal Length 6.91mm
Connectivity Technology Wired
Field of View (Vertical) 35.8°
Field of View (Horizontal) 59.4°
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 984 ft
Certifications
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 2592 x 1520
Environmental Conditions
Operating Humidity 95% RH (Non-condensing)
Maximum Operating Temperature 131°F
Minimum Operating Temperature -58°F
Exposure
Minimum Illumination 0.004 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 6.91-214.7mm
Lens Included Yes
Minimum Aperture f/4.6
Maximum Focal Length 214.7mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 9.70lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor PTZ
Product Information
Diameter 7.4"
Mount Type Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Built-in IR LED, Day/Night, Defog, Digital Image Stabilization, Gain Control, Motion Detection, Password Protection, Privacy Masking, White Balance, Wide Dynamic Range
Country of Origin VN
Impact Protection Rating IK10
